24V 60W DIN Rail Power Supply - Compact and Reliable S8VK-C06024
24V 60W DIN Rail Power Supply - Compact and Reliable S8VK-C06024
SKU:S8VK-C06024
Package size: 20X20X10CMRegular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
/
per
Couldn't load pickup availability

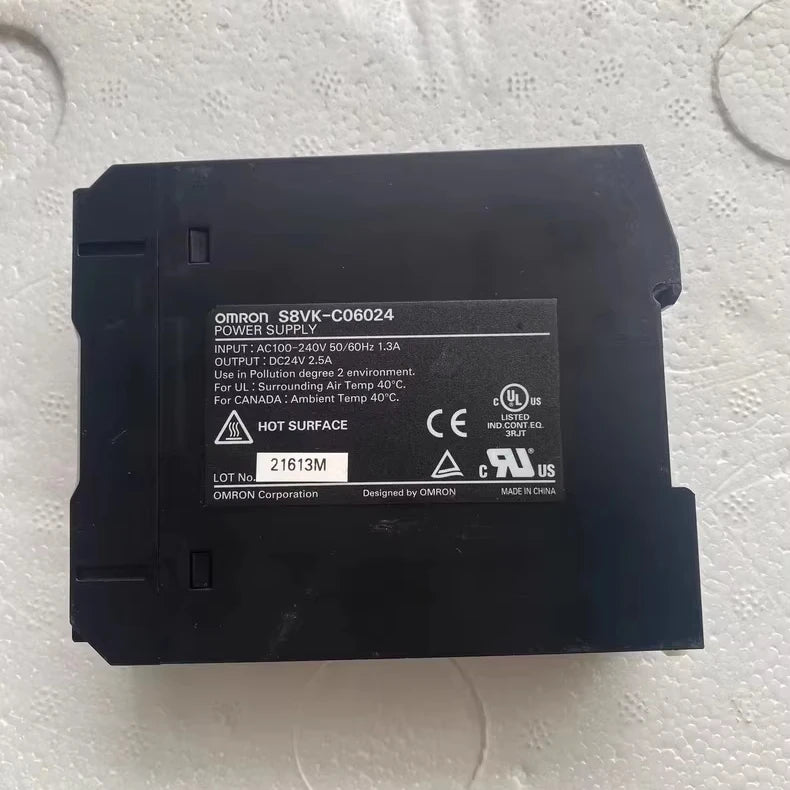

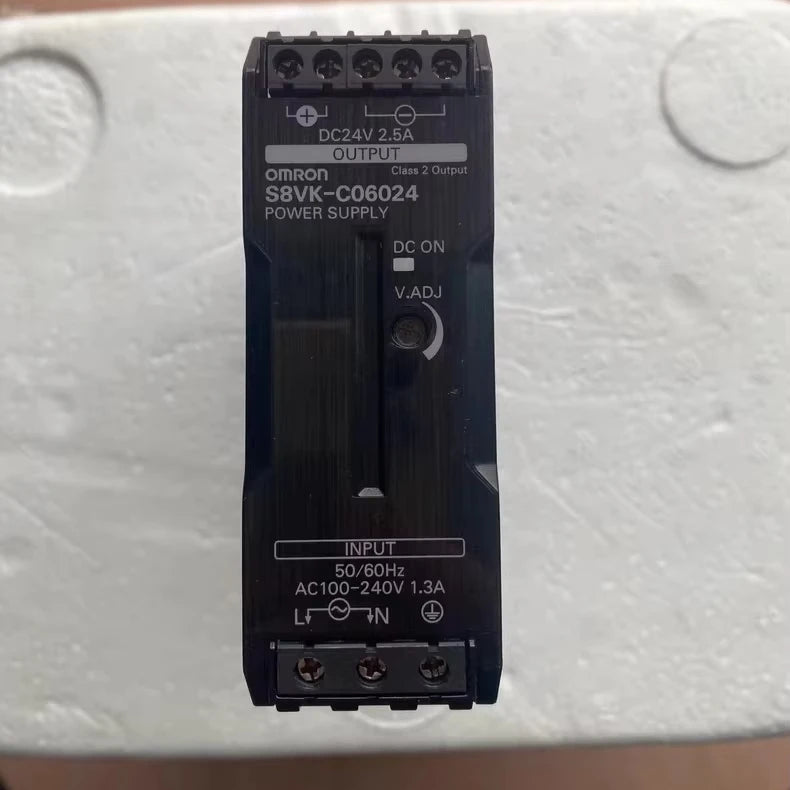

S8VK-C06024 Power Supply
Product Overview
The S8VK-C06024 is a DIN rail-mount switching power supply designed for industrial applications. It belongs to the S8VK series, which is known for high efficiency and reliability in power conversion. This model converts AC input voltage to a stable 24V DC output, suitable for powering control circuits, sensors, and other low-voltage devices.
Key Features
- Input Voltage: 100-240V AC (50/60Hz)
- Output Voltage: 24V DC
- Output Current: 2.5A
- Power Rating: 60W
- Efficiency: Up to 89%
- Dimensions: 32mm (W) x 90mm (H) x 98mm (D)
- Weight: 350g
- Protection: Overload, overvoltage, and short-circuit protection
- Operating Temperature: -10°C to +50°C
- Cooling Method: Natural convection (fanless)
Applications
- Industrial automation systems
- Control panels and PLC power supply
- Sensor and actuator power
- Machine tool controls
- Packaging and conveyor systems
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 100-240V AC |
| Input Frequency | 50/60Hz |
| Output Voltage | 24V DC ±5% |
| Output Current | 2.5A |
| Rated Power | 60W |
| Efficiency | Up to 89% |
| Ripple & Noise | ≤120mV (peak-to-peak) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 20-85% (non-condensing) |
| Protection Features | Overload, overvoltage, short-circuit |
| Cooling Method | Natural convection |
| Dimensions (W x H x D) | 32mm x 90mm x 98mm |
| Weight | 350g |
