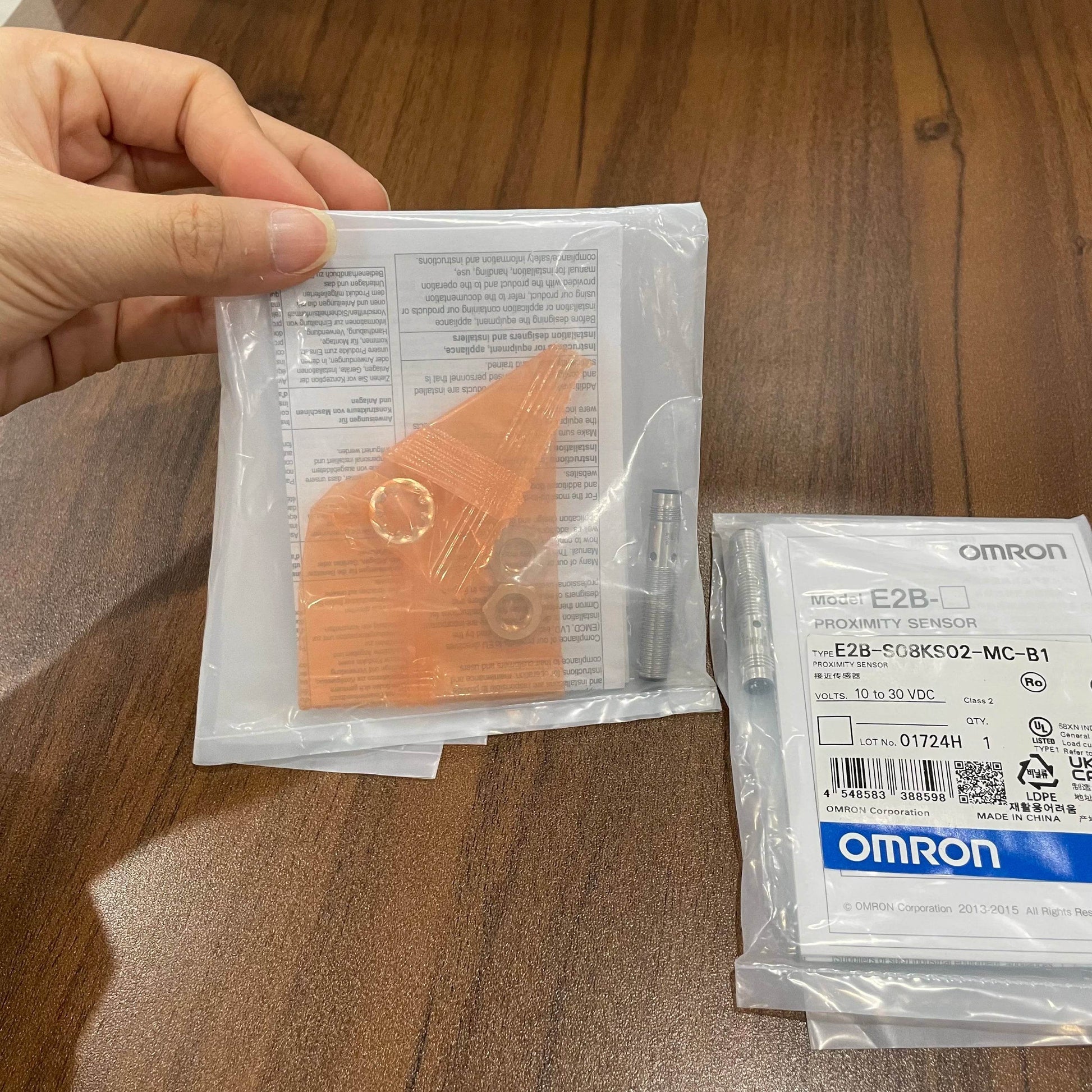

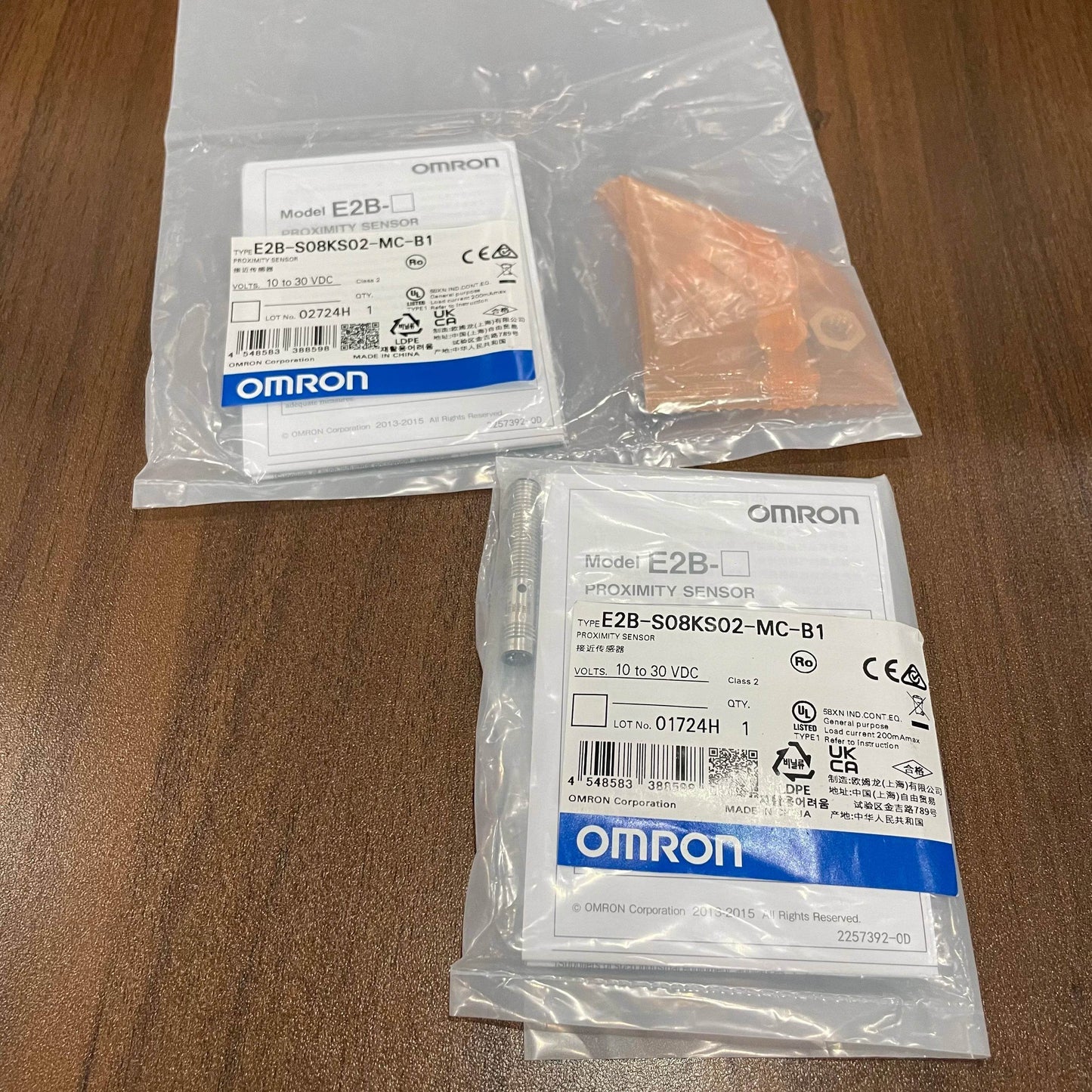

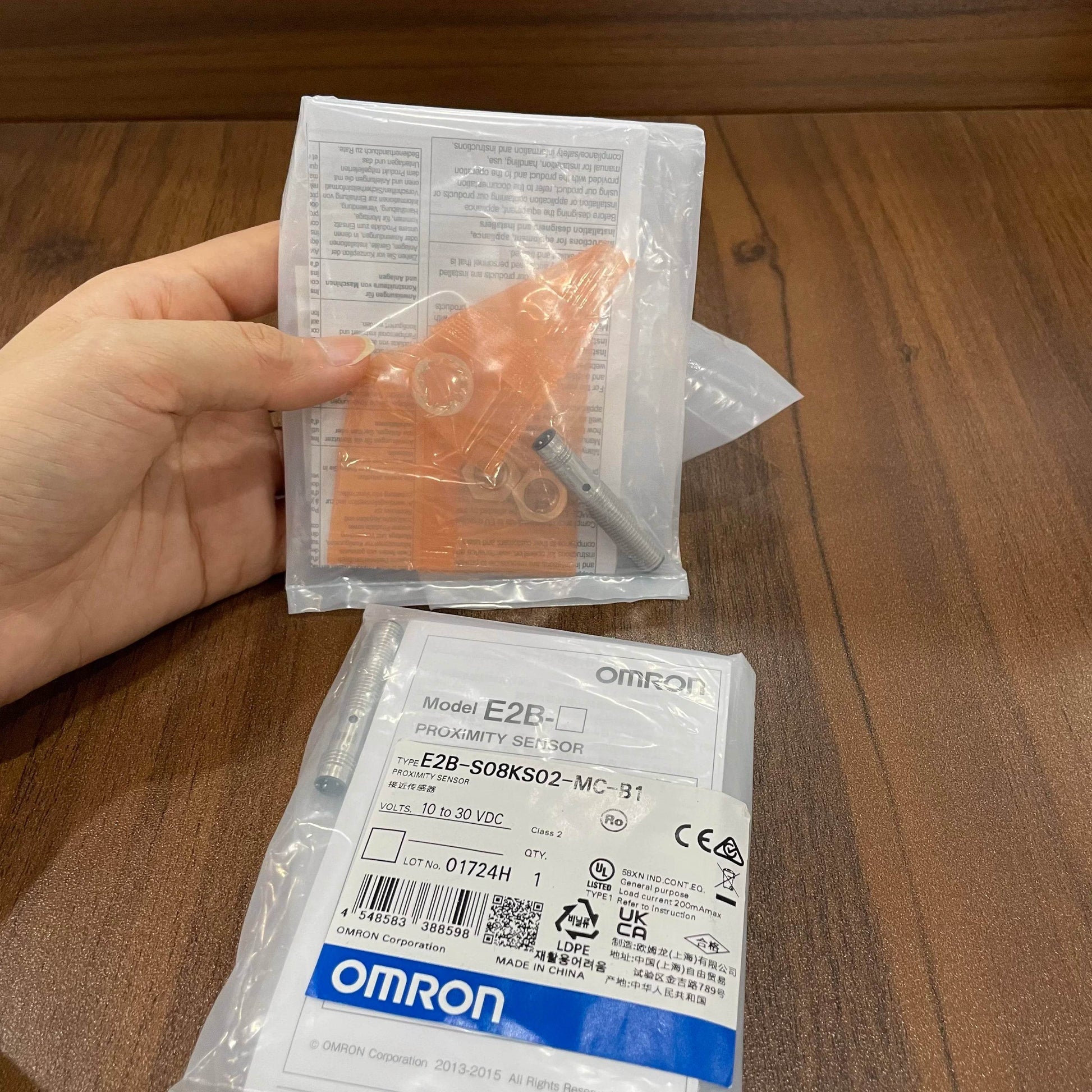

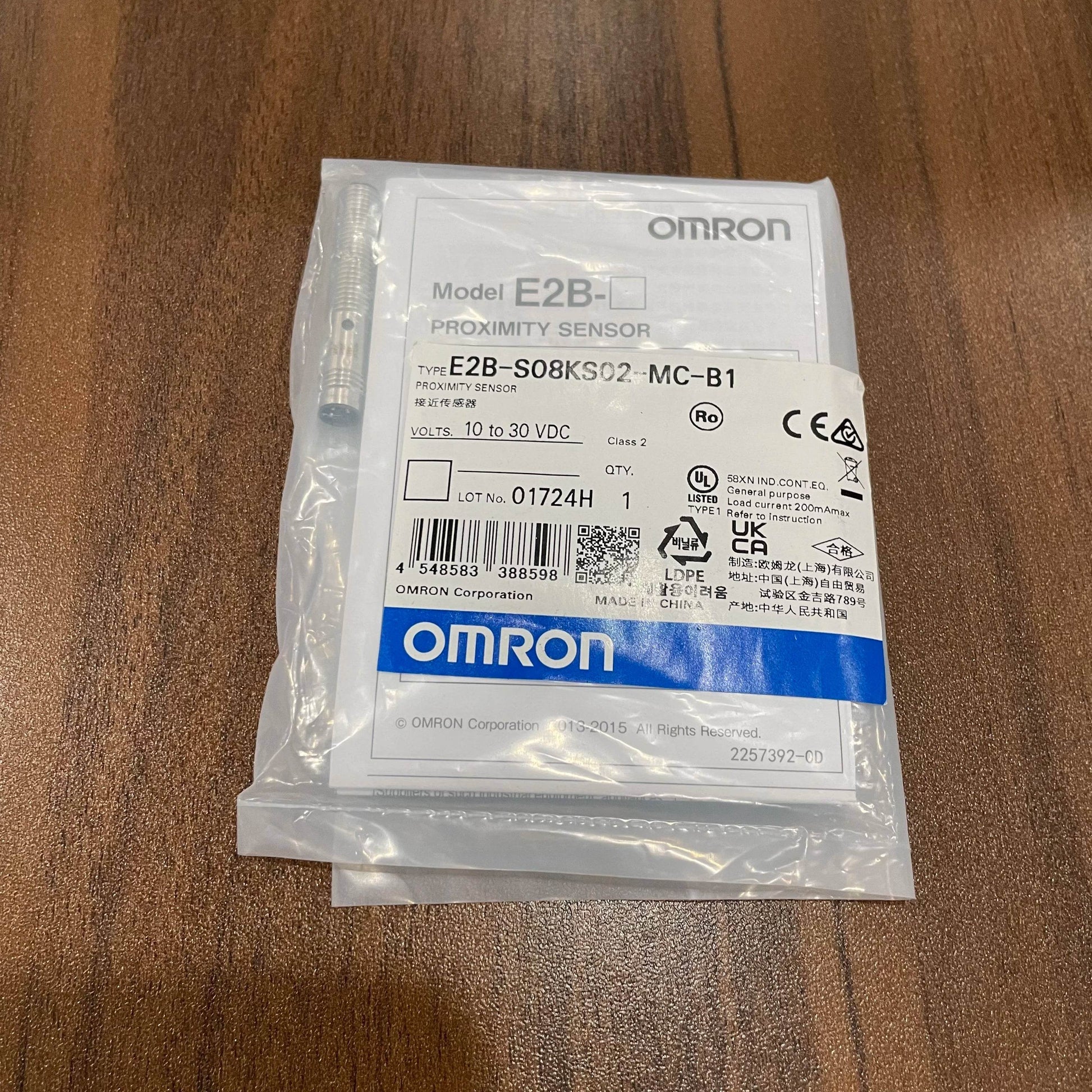

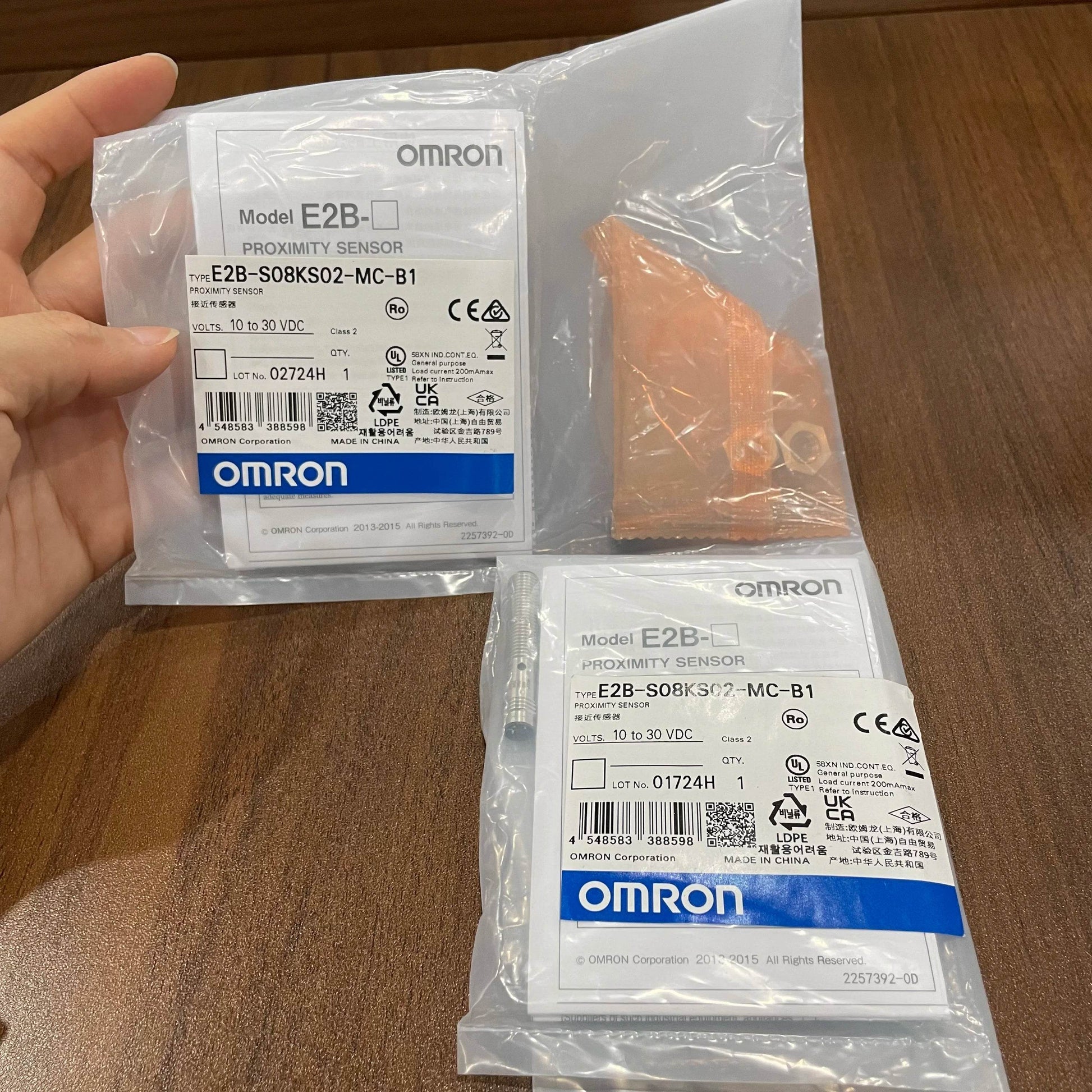

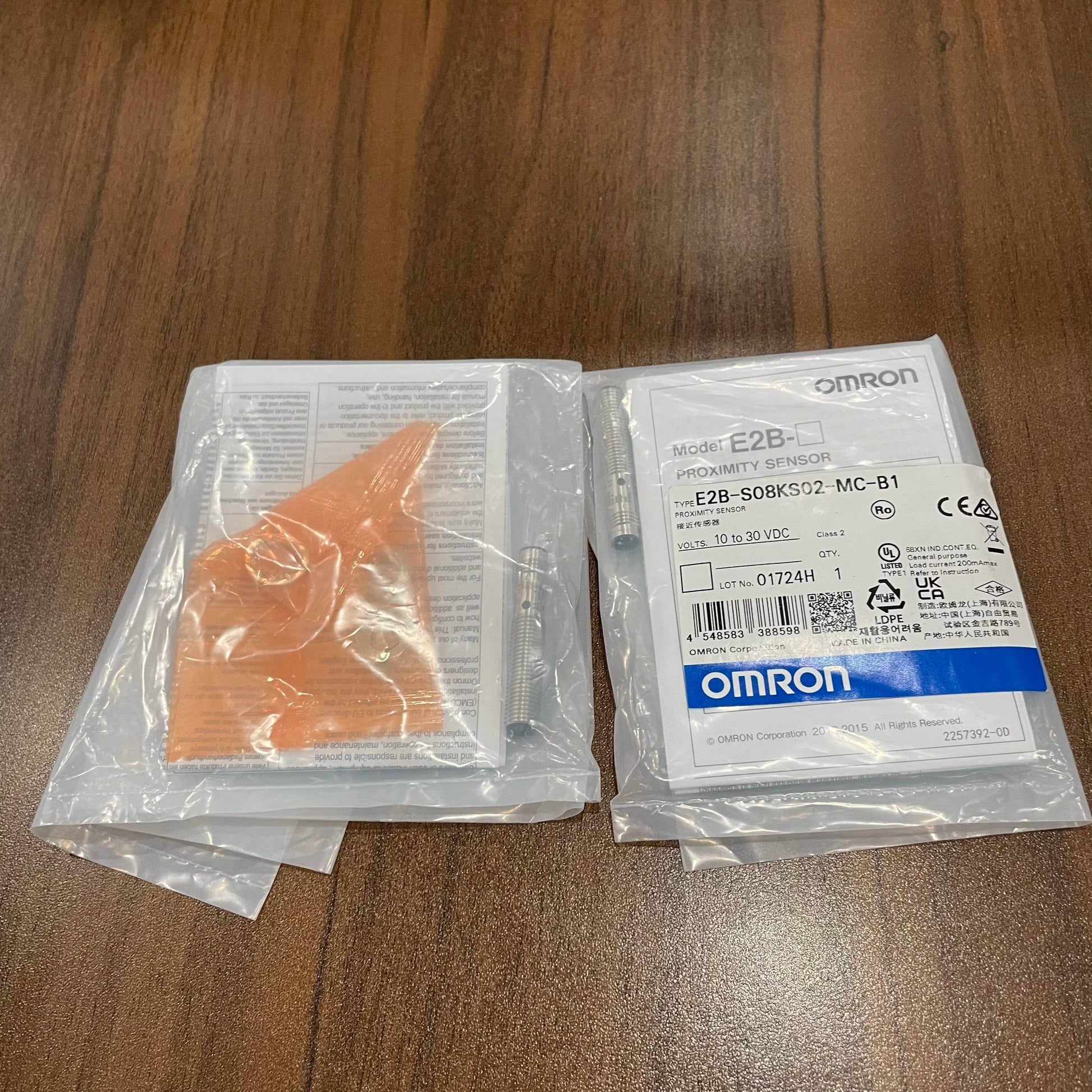

High-Precision E2B-S08KS02-MC-C1 Inductive Proximity Sensor with Metal Case, 2mm Sensing Distance
High-Precision E2B-S08KS02-MC-C1 Inductive Proximity Sensor with Metal Case, 2mm Sensing Distance
SKU:E2B-S08KS02-MC-C1
Package size: 15X10X4CMNormaler Preis
$8.00 USD
Normaler Preis
Verkaufspreis
$8.00 USD
Grundpreis
/
pro
Exclusive pricing & tailored solutions await!
Product Overview
The E2B-S08KS02-MC-C1 is a cylindrical inductive proximity sensor designed for non-contact detection of metallic objects. It belongs to the E2B series, which is known for high precision and durability in industrial environments. This sensor operates by generating an electromagnetic field to detect the presence of metal targets without physical contact.
Key Features
- Detection Distance: 2 mm (for iron)
- Output Configuration: PNP, normally open (NO)
- Supply Voltage: 10-30 VDC
- Current Consumption: 10 mA max
- Housing Material: Nickel-plated brass
- Protection Rating: IP67
- Operating Temperature: -25°C to +70°C
- Dimensions: 8 mm diameter, 40 mm length
- Connection Type: 2-meter PVC cable
Applications
- Position sensing in automated machinery
- Object detection in conveyor systems
- Metal part counting in production lines
- Safety interlocks in industrial equipment
Technical Specifications
| Parameter | Value |
|---|---|
| Model | E2B-S08KS02-MC-C1 |
| Type | Inductive Proximity Sensor |
| Detection Distance | 2 mm (iron) |
| Output Type | PNP, NO |
| Supply Voltage | 10-30 VDC |
| Current Consumption | ≤ 10 mA |
| Housing Material | Nickel-plated brass |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 8 mm (diameter) × 40 mm (length) |
| Connection | 2 m PVC cable |
