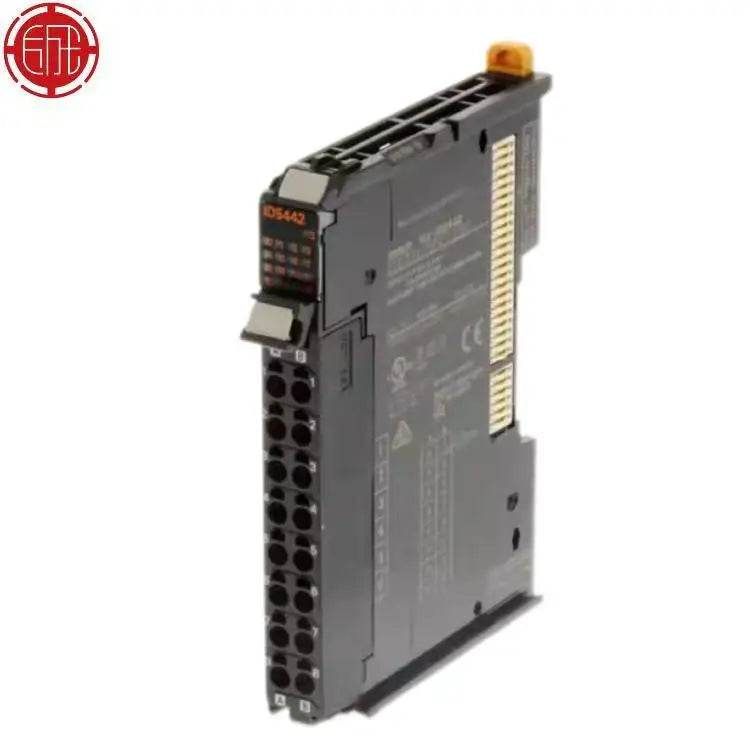

Product Overview
The NX-ID5442 is a high-performance 32-point digital input module from Omron's premium NX series, designed for demanding industrial automation applications. This industrial-grade input module provides reliable interfacing between digital field devices (such as sensors, switches, and push buttons) and programmable logic controllers (PLCs) in automation systems. With its configurable sink/source input capability and fast 1ms response time, the NX-ID5442 ensures precise signal acquisition for critical control applications. The module features robust photocoupler isolation for enhanced noise immunity and system protection. Backed by Omron's quality assurance and a standard 1-year manufacturer's warranty, this input module delivers dependable performance in harsh industrial environments.
Key Features and Benefits
- High-Density Configuration: 32 digital input points in a compact form factor (32mm width) for space-efficient control cabinet installation
- Flexible Input Configuration: Supports both sink and source input wiring (configurable per channel) for versatile system integration
- Wide Voltage Compatibility: 12-24V DC input range (±10% tolerance) accommodates various industrial sensor and switch voltages
- Fast Response: 1ms or faster input response time ensures precise timing for high-speed automation processes
- Reliable Isolation: Photocoupler isolation between field inputs and internal circuits provides electrical noise protection and system safety
- Robust Construction: Industrial-grade components rated for continuous operation in demanding environments (-10°C to 55°C)
- Energy Efficient: Low power consumption (2.5W typical) reduces overall system energy requirements
- Standard Warranty: Includes 1-year manufacturer's warranty against defects in materials and workmanship
- NX Series Compatibility: Seamless integration with Omron NX-series PLCs and I/O systems for unified automation solutions
Industrial Applications
The NX-ID5442 digital input module is ideal for various industrial automation scenarios requiring reliable digital signal acquisition:
- Factory Automation: Machine control systems, production line monitoring, and equipment status detection
- Process Control: Discrete signal processing in chemical, pharmaceutical, and food processing plants
- Material Handling: Conveyor system control, palletizer inputs, and packaging machine sensors
- Automotive Manufacturing: Assembly line control, robotic cell inputs, and quality inspection stations
- Machinery Monitoring: Equipment status inputs, safety interlock monitoring, and maintenance signal detection
- Building Automation: Integration with industrial HVAC and facility management systems
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | NX-ID5442 (Omron genuine part) |
| Input Points | 32 points (individually configurable) |
| Input Configuration | Selectable sink or source input (jumper or software configurable) |
| Input Voltage Range | 12-24V DC (±10% tolerance) |
| ON Voltage Threshold | Minimum 10V DC (guaranteed activation) |
| OFF Voltage Threshold | Maximum 3V DC (guaranteed deactivation) |
| Input Current | Approximately 5mA per point at 24V DC |
| Response Time | 1ms maximum (from input change to internal processing) |
| Isolation Method | Photocoupler isolation (1500V AC for 1 minute between field inputs and internal circuits) |
| Connection Method | Screwless clamping terminal block (simplifies wiring) |
| Physical Dimensions | 32mm (W) × 98mm (H) × 90mm (D) (conforms to NX-series standard) |
| Module Weight | Approximately 200 grams (without wiring) |
| Power Consumption | 2.5W typical (from backplane) |
| Operating Temperature | -10°C to 55°C (with no condensation or icing) |
| Storage Temperature | -25°C to 65°C (in non-operating conditions) |
| Humidity Range | 10% to 95% relative humidity (non-condensing) |
| Vibration Resistance | 10 to 57Hz, 0.075mm amplitude; 57 to 150Hz, 9.8m/s² acceleration |
| Shock Resistance | 147m/s² (3 times each in X, Y, and Z directions) |
| Warranty Period | 1 year from date of purchase (manufacturer's warranty) |
| Compliance Standards | CE, UL, cUL (specific standards available in product documentation) |
