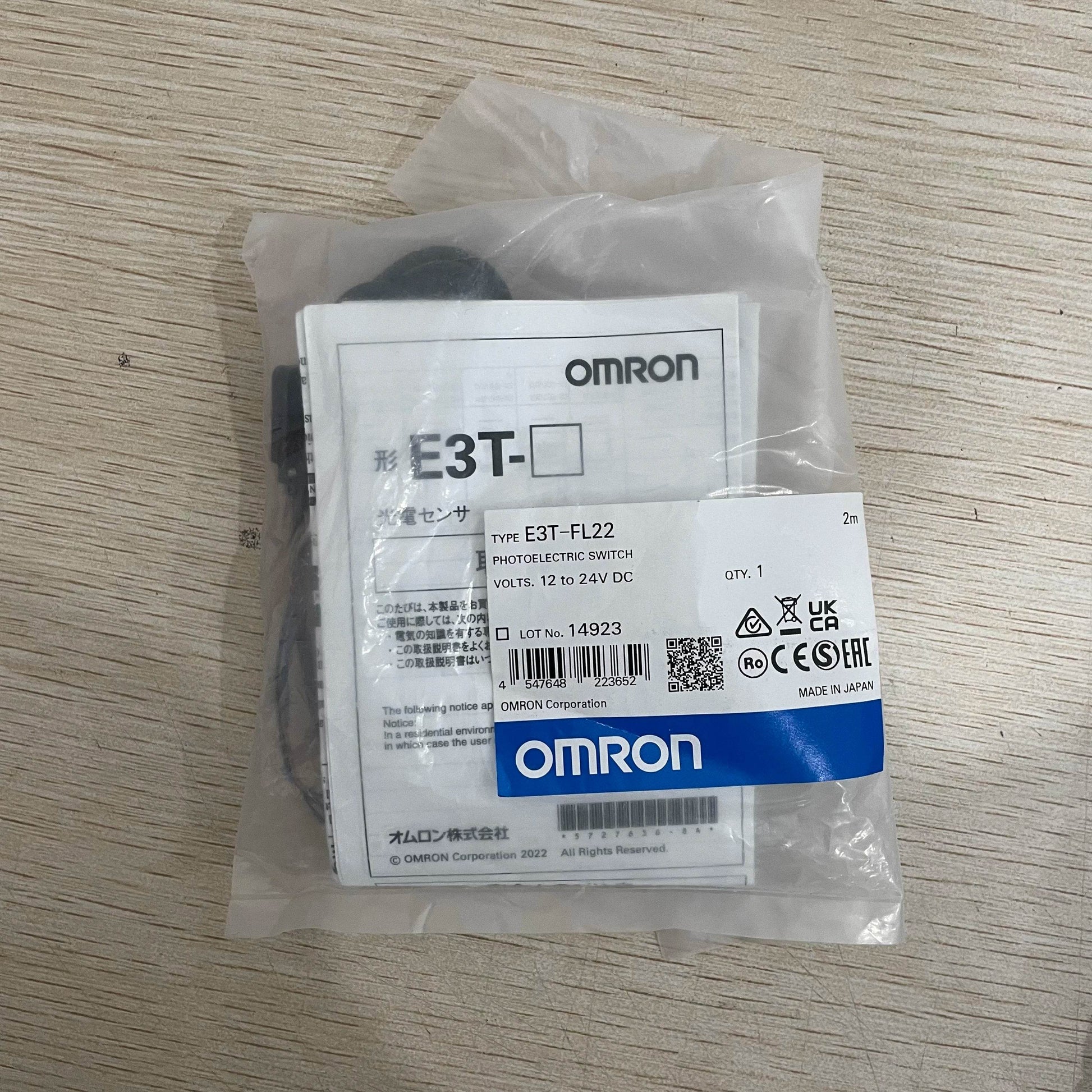

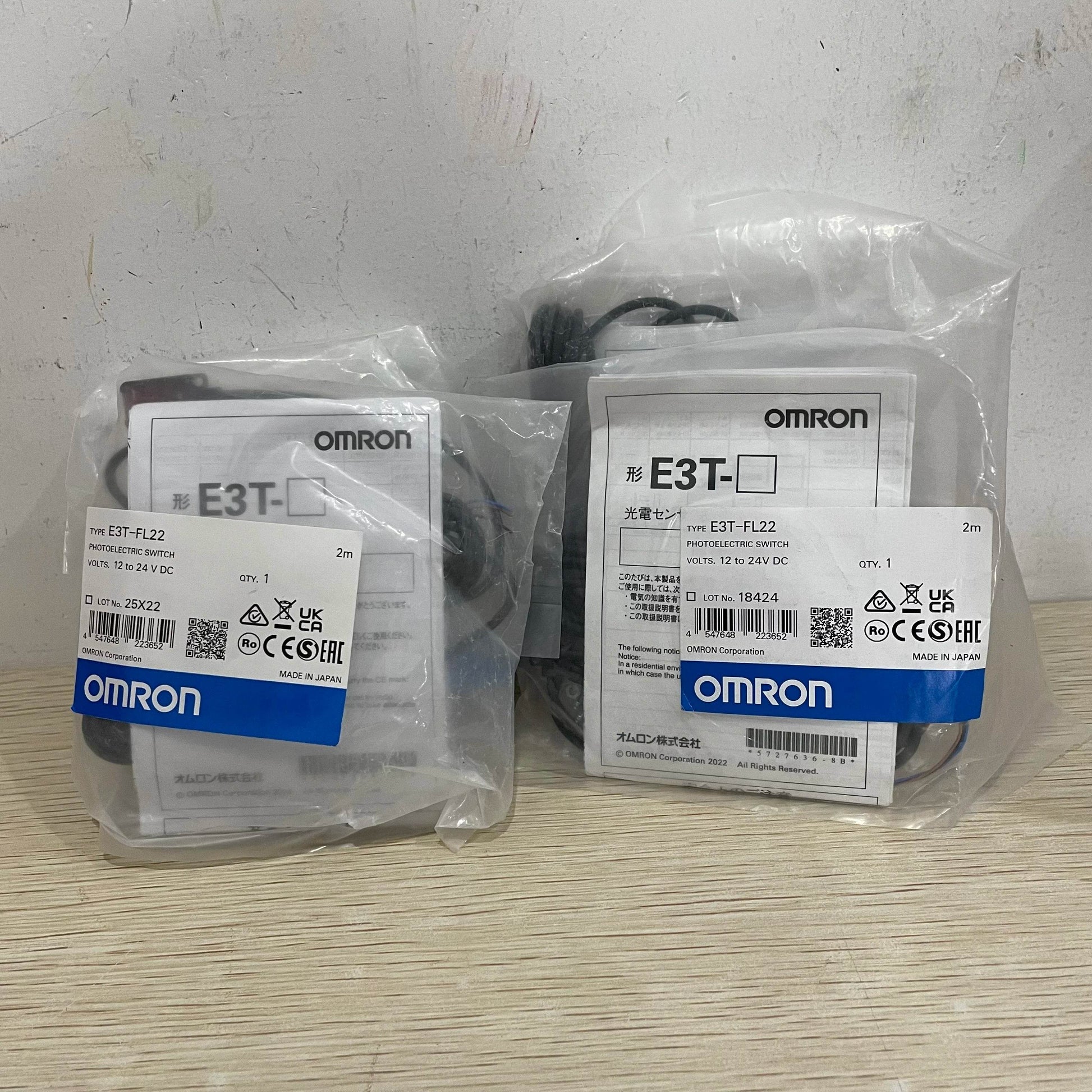

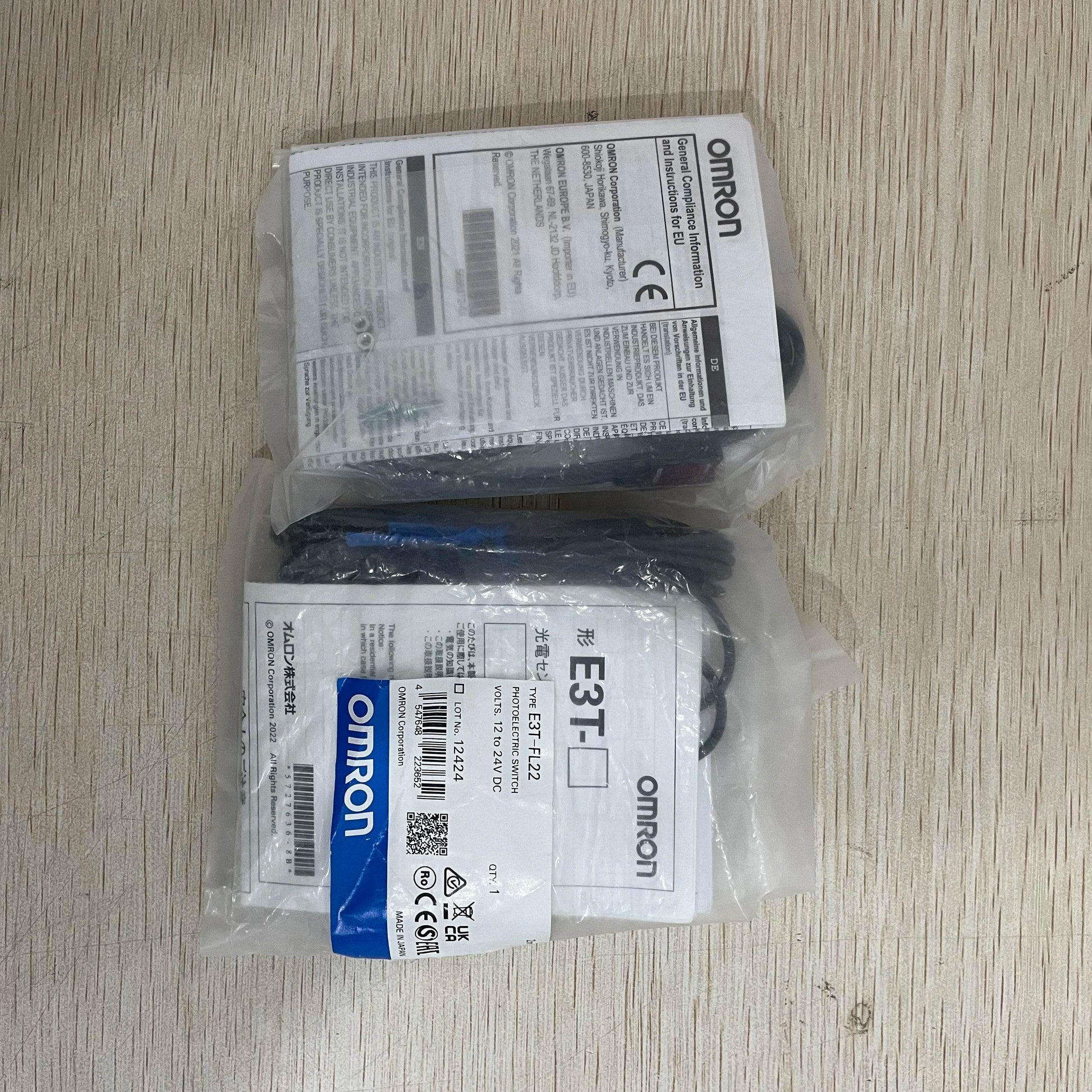

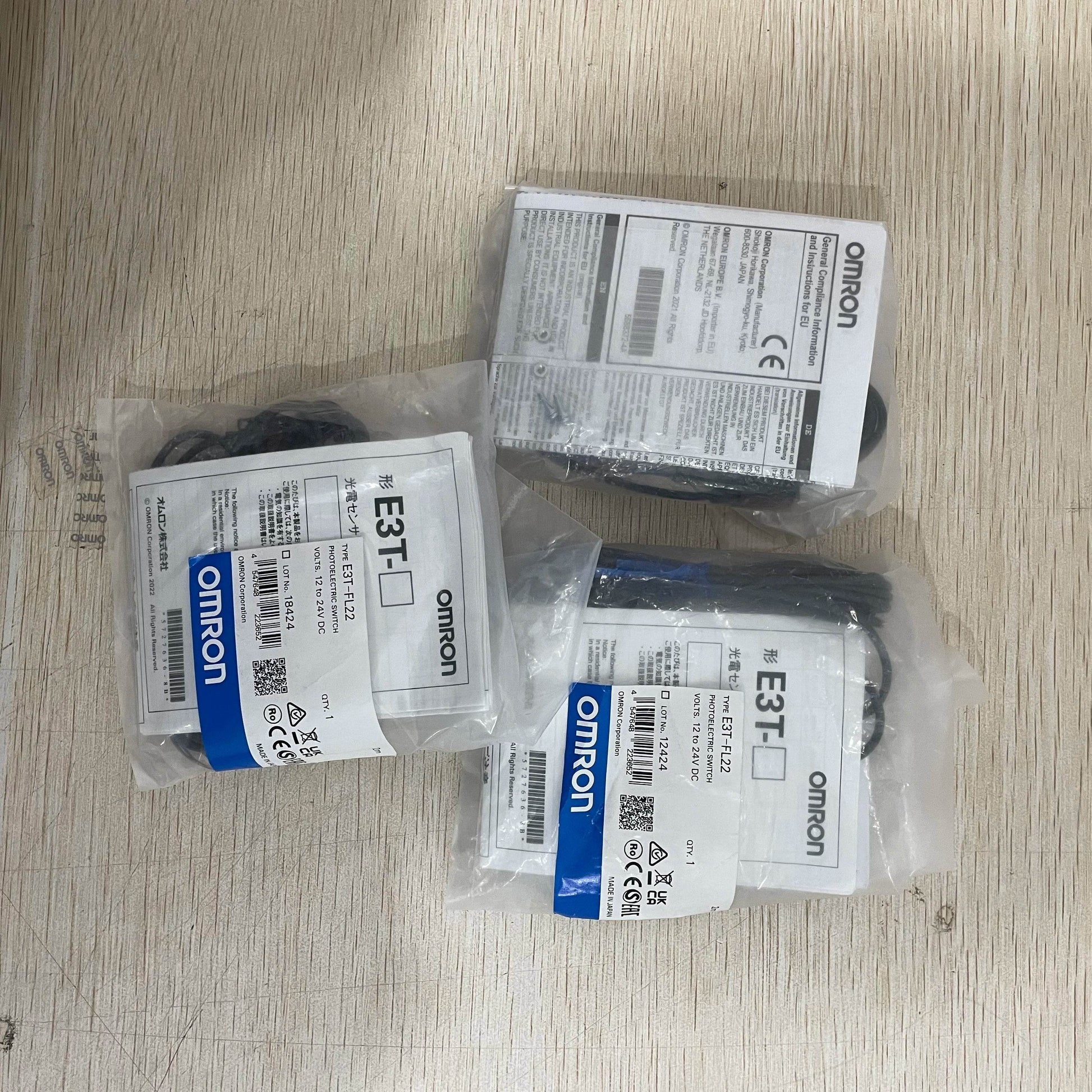

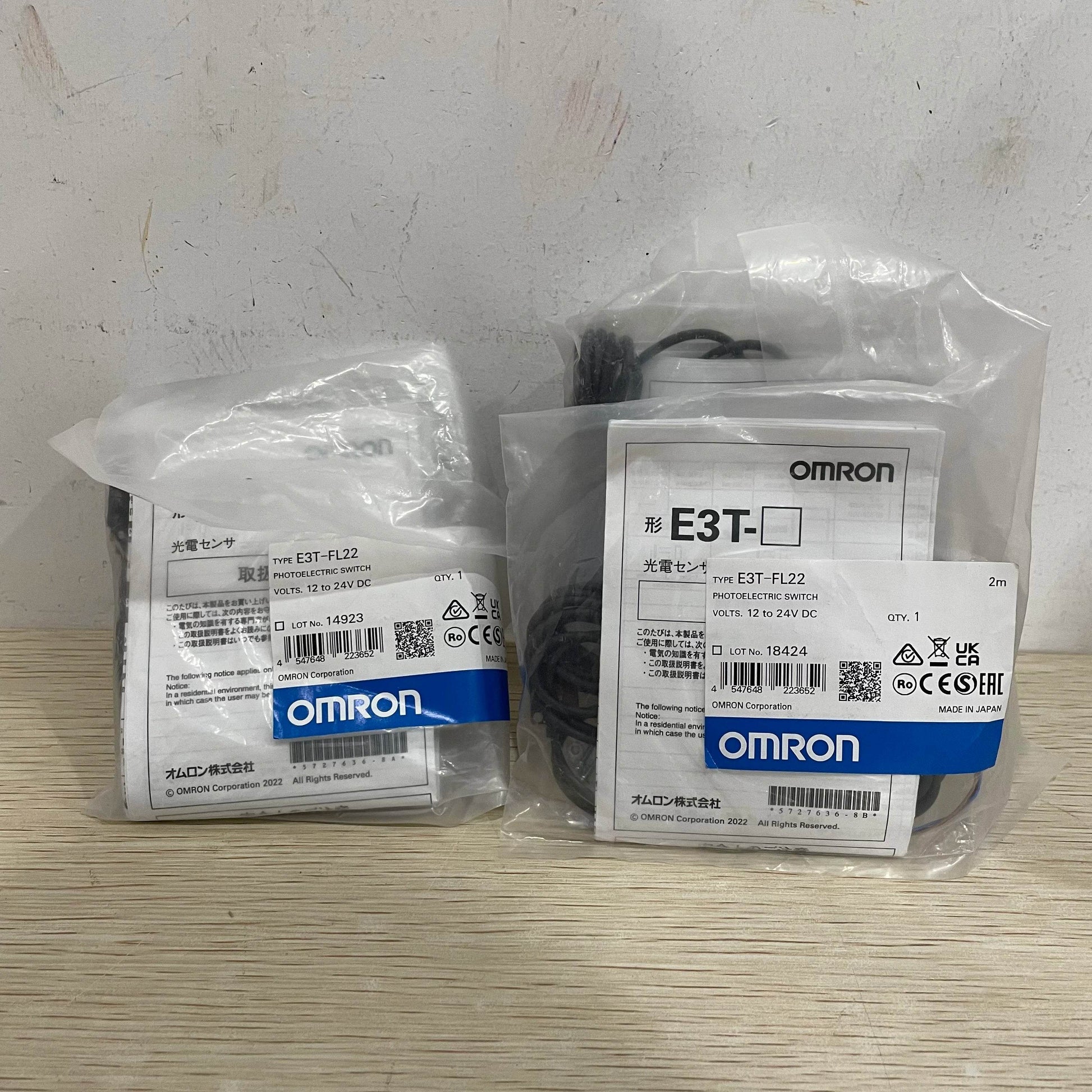

Compact Through-Beam Photoelectric Sensor E3T-FL22 with 2m Sensing Range
Compact Through-Beam Photoelectric Sensor E3T-FL22 with 2m Sensing Range
SKU:E3T-FL22
Package size: 15X15X8CMPrezzo di listino
$38.00 USD
Prezzo di listino
Prezzo scontato
$38.00 USD
Prezzo unitario
/
per
Exclusive pricing & tailored solutions await!
Product Overview
The E3T-FL22 is a photoelectric sensor designed for precise detection in industrial environments. It belongs to the E3T series, which is known for reliable performance in various sensing applications. This sensor uses a through-beam detection method, ensuring accurate object detection even in challenging conditions.
Key Features
- Detection Method: Through-beam
- Power Supply Voltage: 12-24 VDC ±10% (ripple P-P: 10% max)
- Current Consumption: 30 mA max
- Output Configuration: NPN open collector
- Response Time: 1 ms max
- Operating Temperature Range: -25°C to 55°C
- Protection Rating: IP67
- Dimensions: 18 mm (W) × 34 mm (H) × 10 mm (D)
- Connection Method: Pre-wired (2 m cable)
- Material: ABS resin housing
Applications
- Object detection in conveyor systems
- Presence verification in automated assembly lines
- Position sensing in packaging machinery
- Counting applications in material handling
Technical Specifications
| Parameter | Value |
|---|---|
| Model | E3T-FL22 |
| Detection Method | Through-beam |
| Power Supply | 12-24 VDC ±10% |
| Current Consumption | 30 mA max |
| Output Type | NPN open collector |
| Response Time | 1 ms max |
| Operating Temperature | -25°C to 55°C |
| Protection Rating | IP67 |
| Dimensions (W × H × D) | 18 mm × 34 mm × 10 mm |
| Cable Length | 2 m |
| Housing Material | ABS resin |
