Industrial DIN Rail Power Supply, 24V DC 30A, 720W, with Active PFC
Industrial DIN Rail Power Supply, 24V DC 30A, 720W, with Active PFC
SKU:NX-PF0730

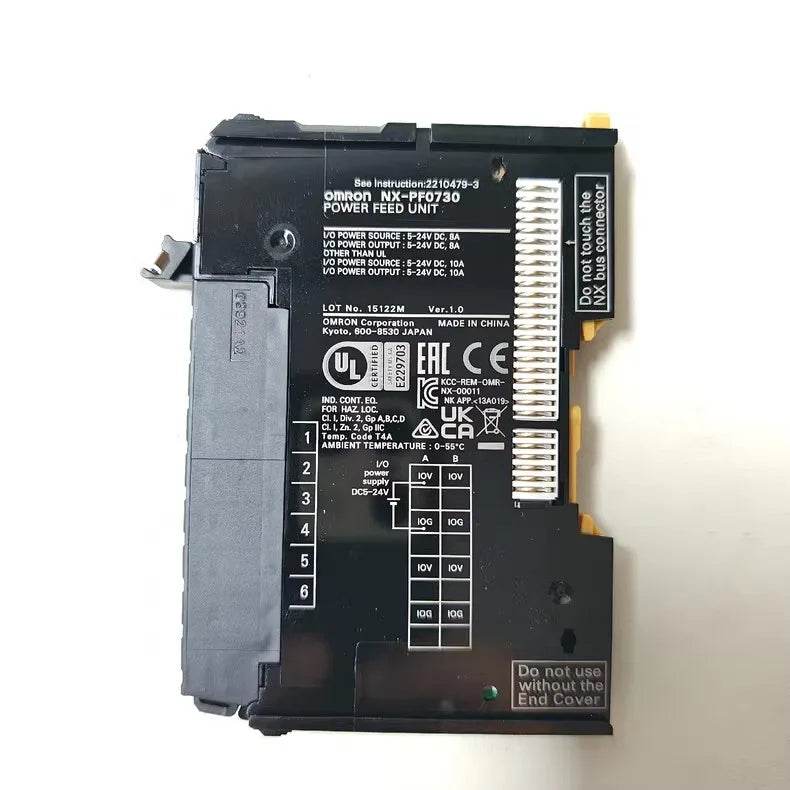

Package size: 15X12X6CMNX-PF0730 Industrial Power Supply Module | Omron Automation
Product Overview
The Omron NX-PF0730 is a high-performance power supply module engineered for industrial automation systems requiring robust and stable 24V DC power distribution. As part of Omron's premium NX Series, this unit delivers exceptional reliability in harsh industrial environments with its wide input voltage range (100-240V AC) and 720W output capacity. The module features advanced circuit protection, high conversion efficiency (≥90%), and forced air cooling to maintain optimal performance in continuous operation scenarios. Designed for seamless integration with Omron's NX-series I/O and controllers, the NX-PF0730 meets rigorous industrial standards while maintaining compact dimensions (130×110×116mm). Backed by Omron's 1-year manufacturer warranty, this power supply module represents a dependable solution for mission-critical automation applications.
Key Features and Specifications
- Universal Input Voltage: 100-240V AC (±10%), 50/60Hz for global compatibility
- Precision Output: 24V DC (±1%) with 30A continuous current capacity
- High Power Density: 720W rated output in compact form factor (1.5kg weight)
- Advanced Protection: Overcurrent, overvoltage, and short-circuit protection circuits
- Thermal Management: Forced air cooling with temperature-controlled fan
- Environmental Resistance: Operates reliably from -10°C to 55°C with 20-90% RH (non-condensing)
- Industrial Certification: Complies with CE, UL, and other international standards
- Mounting Flexibility: DIN rail mountable (TS35/7.5/15) with screw terminal connections
- Status Monitoring: LED indicators for power and fault conditions
Industrial Applications
The NX-PF0730 power supply module is engineered for demanding automation environments including:
- Factory Automation: Power distribution for PLC systems, I/O modules, and control cabinets
- Motion Control: Servo drives, stepper motors, and robotic actuators
- Process Equipment: Packaging machinery, filling systems, and assembly lines
- Material Handling: Conveyor systems, sorting equipment, and automated storage
- Test & Measurement: Industrial inspection systems and quality control stations
- Building Automation: Control systems for HVAC, lighting, and security applications
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Input Characteristics | 100-240V AC, 47-63Hz, 10A max (at 100V) |
| Output Regulation | 24V DC ±1% (line/load regulation), ≤1% ripple |
| Current Capacity | 30A continuous (35A peak for 5 seconds) |
| Power Factor | ≥0.95 at full load (compliant with EN61000-3-2) |
| Inrush Current | ≤40A (at 230V AC, cold start) |
| Hold-up Time | ≥20ms at full load (230V input) |
| Efficiency | ≥90% typical at 230V input, full load |
| Protection Features | Overcurrent (115-150% of rated current), overvoltage (28-32V), overtemperature |
| Mechanical Dimensions | 130mm (W) × 110mm (H) × 116mm (D) excluding protrusions |
| Environmental Ratings | Operating: -10°C to 55°C, Storage: -20°C to 65°C, 20-90% RH (non-condensing) |
| Safety Standards | UL508, EN60950-1, EN50178, IEC/EN61010-1 |
| EMC Compliance | EN61204-3, EN61000-6-2, EN61000-6-4 |
| Warranty Period | 1 year manufacturer warranty against defects |
