NX1P2-9024DT 24-Port Industrial Ethernet Switch with DIN Rail Mount
NX1P2-9024DT 24-Port Industrial Ethernet Switch with DIN Rail Mount
SKU:NX1P2-9024DT
Package size: 20X18X13CMPrezzo di listino
$255.00 USD
Prezzo di listino
Prezzo scontato
$255.00 USD
Prezzo unitario
/
per
Exclusive pricing & tailored solutions await!
Product Overview

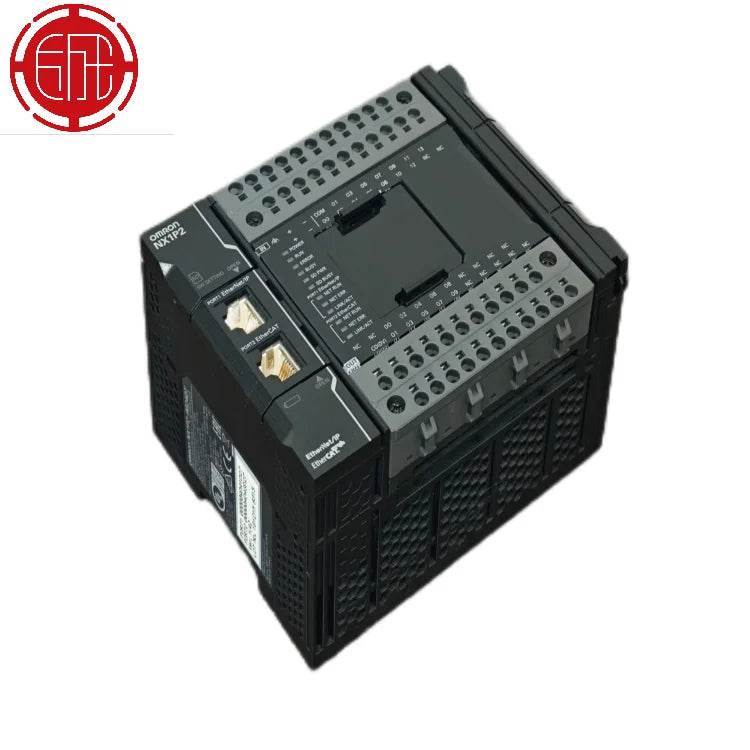

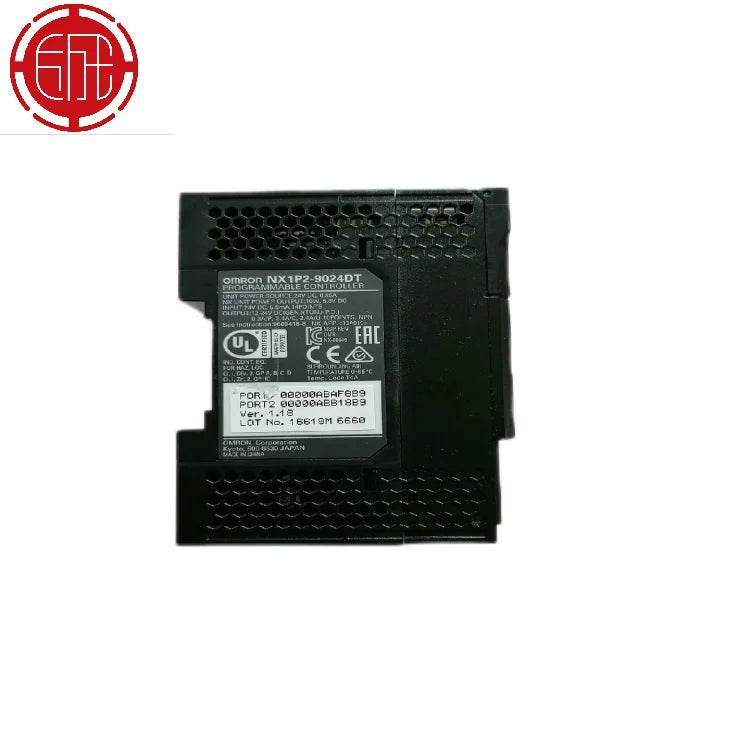

The NX1P2-9024DT is a modular programmable logic controller (PLC) designed for industrial automation. It belongs to the NX1P2 series, which is known for its high-speed processing and flexible configuration. This model supports a variety of I/O modules and communication protocols, making it suitable for complex control tasks.
Key Features
- Supported I/O: Up to 256 digital I/O points and 32 analog I/O points, expandable with additional modules.
- Dimensions: 90 mm (W) × 100 mm (H) × 75 mm (D).
- Power Consumption: 15 W (typical), 20 W (maximum).
- Processing Speed: 10 ns per instruction for basic operations.
- Memory Capacity: 64 KB for program storage and 32 KB for data storage.
- Communication Ports: Built-in Ethernet (100BASE-TX), RS-232, and RS-485.
- Operating Temperature: 0°C to 55°C.
- Protection Rating: IP20.
Applications
The NX1P2-9024DT is ideal for a variety of industrial automation applications, including:
- Machine control in manufacturing lines.
- Process automation in chemical and food industries.
- Packaging and material handling systems.
- Building automation for HVAC and lighting control.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | NX1P2-9024DT |
| Series | NX1P2 |
| Digital I/O Capacity | Up to 256 points |
| Analog I/O Capacity | Up to 32 points |
| Dimensions (W × H × D) | 90 mm × 100 mm × 75 mm |
| Power Consumption | 15 W (typical), 20 W (max) |
| Processing Speed | 10 ns per instruction |
| Program Memory | 64 KB |
| Data Memory | 32 KB |
| Communication Ports | Ethernet (100BASE-TX), RS-232, RS-485 |
| Operating Temperature | 0°C to 55°C |
| Protection Rating | IP20 |
