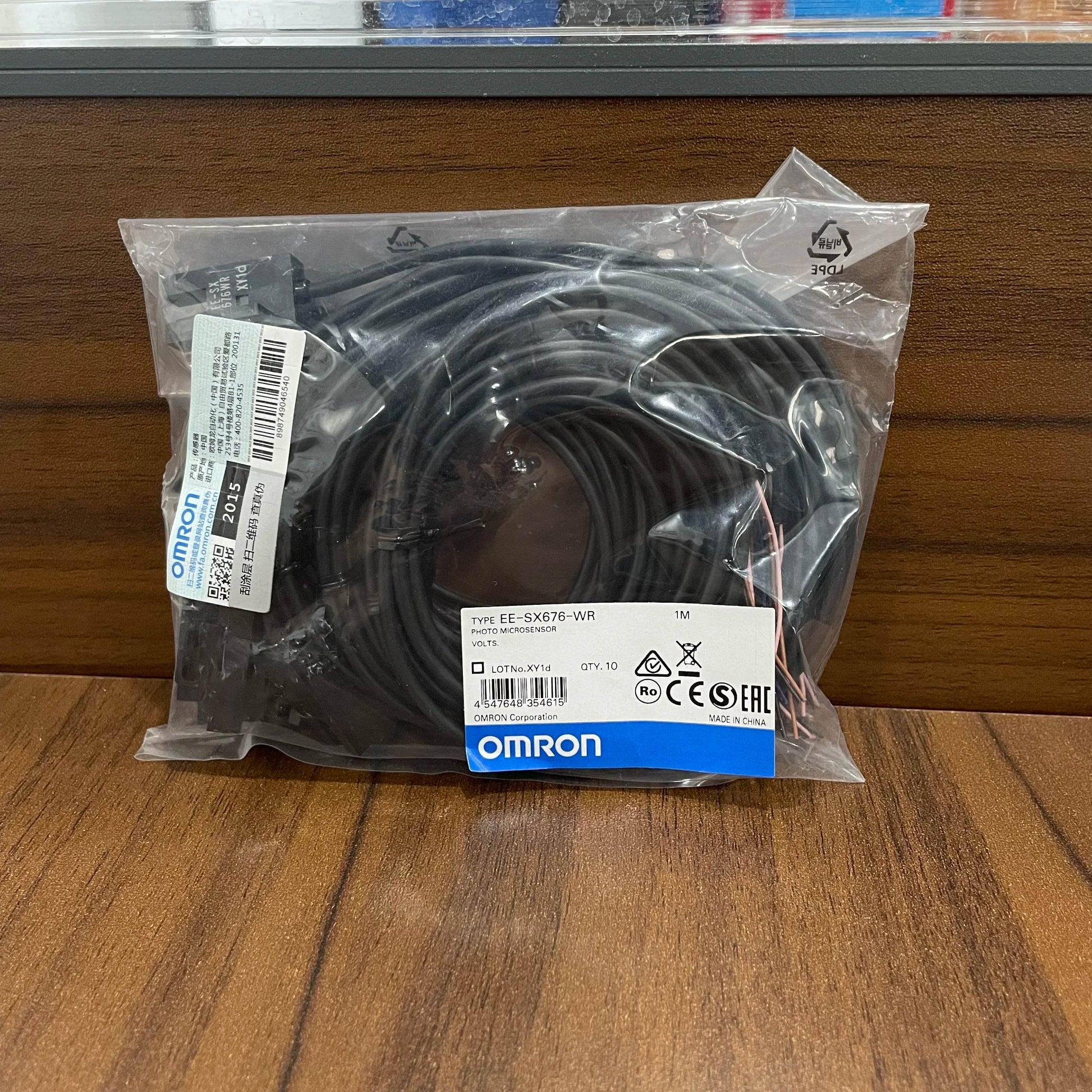

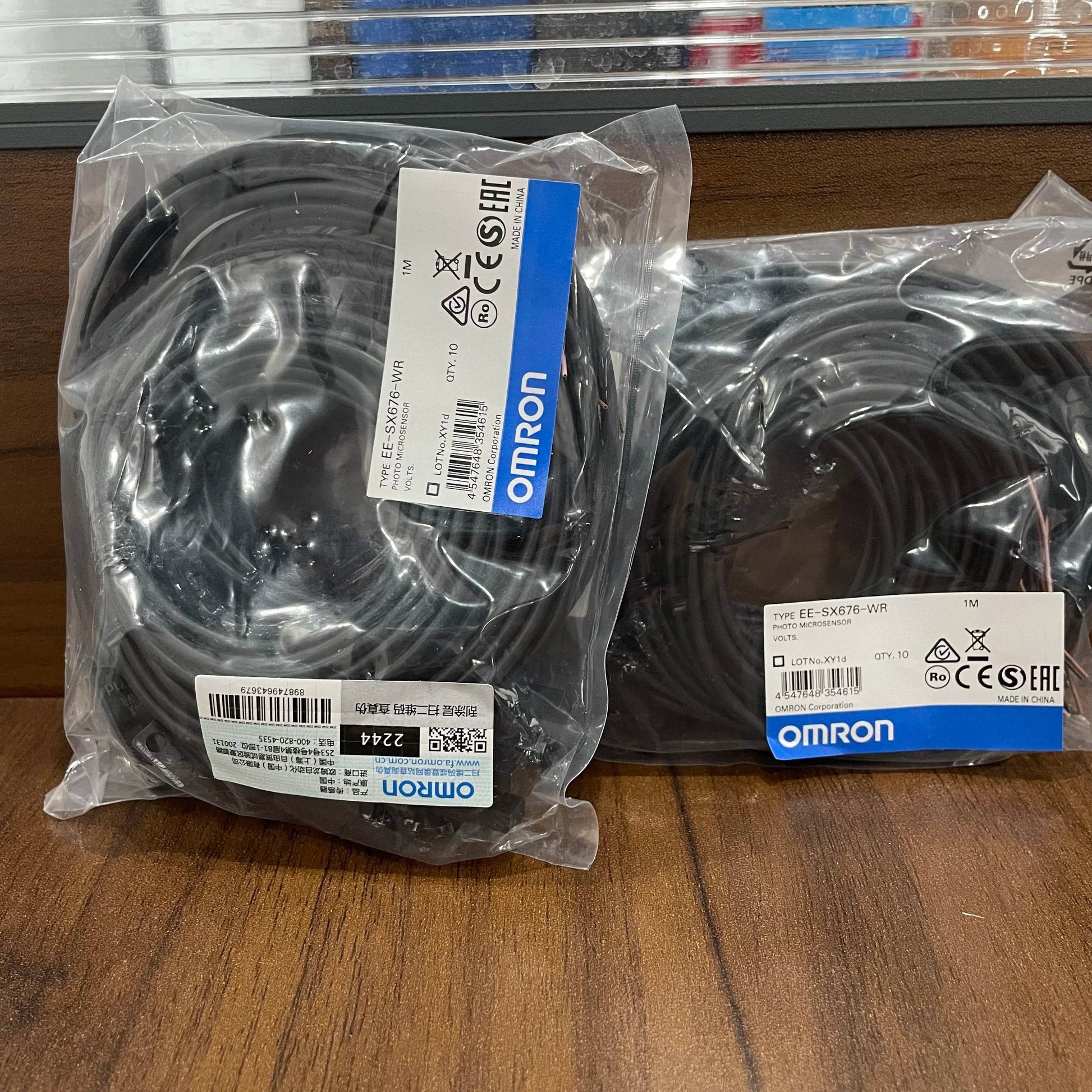

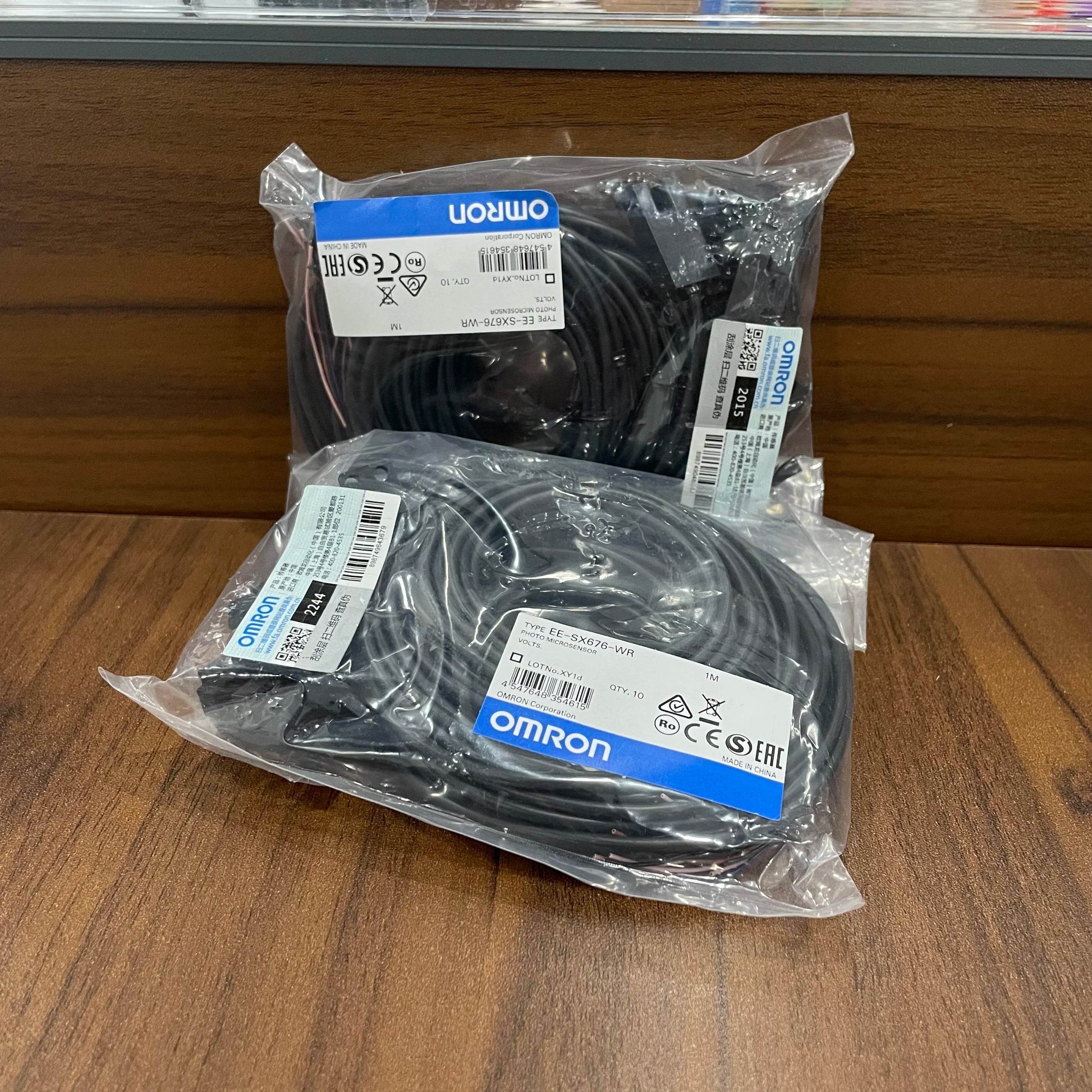

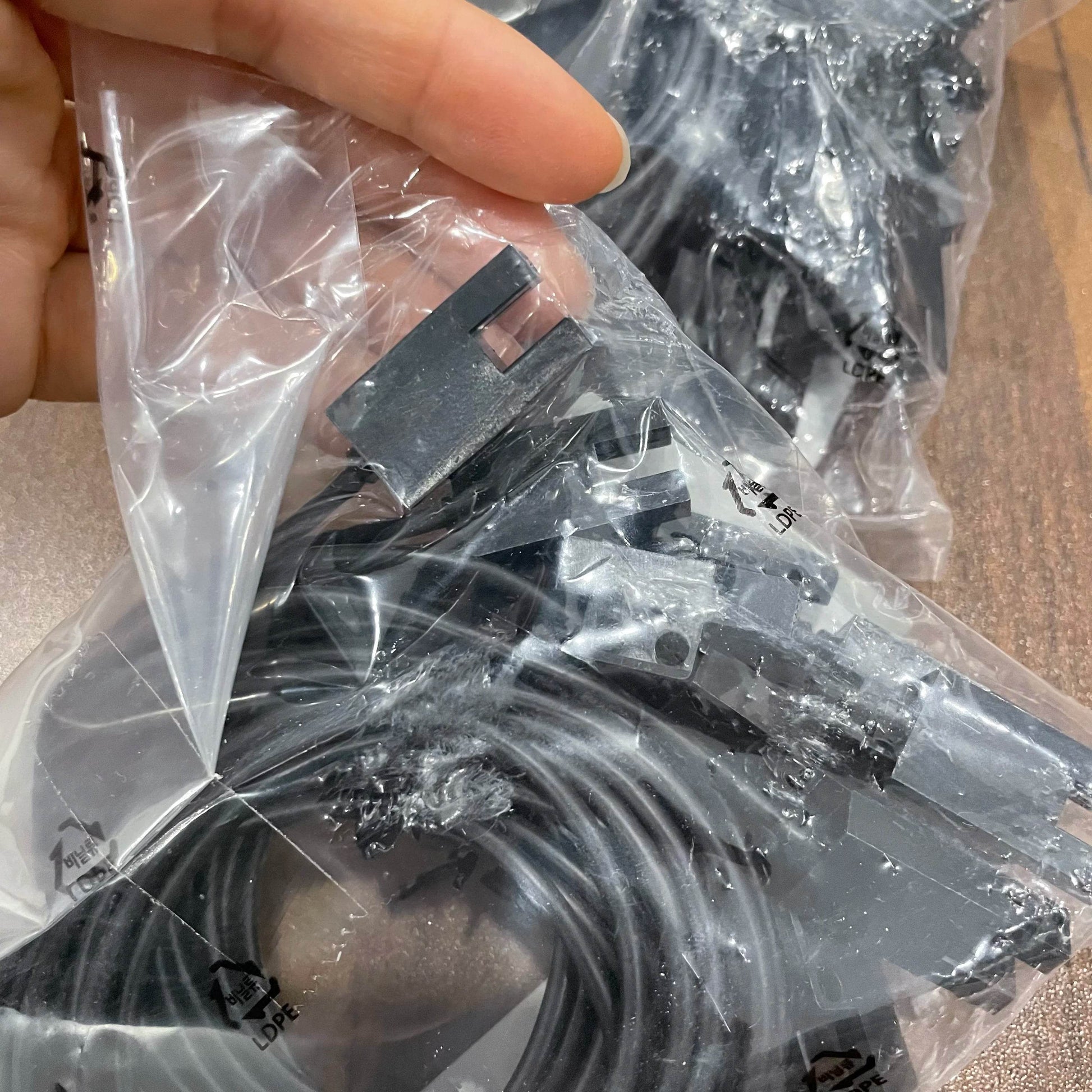

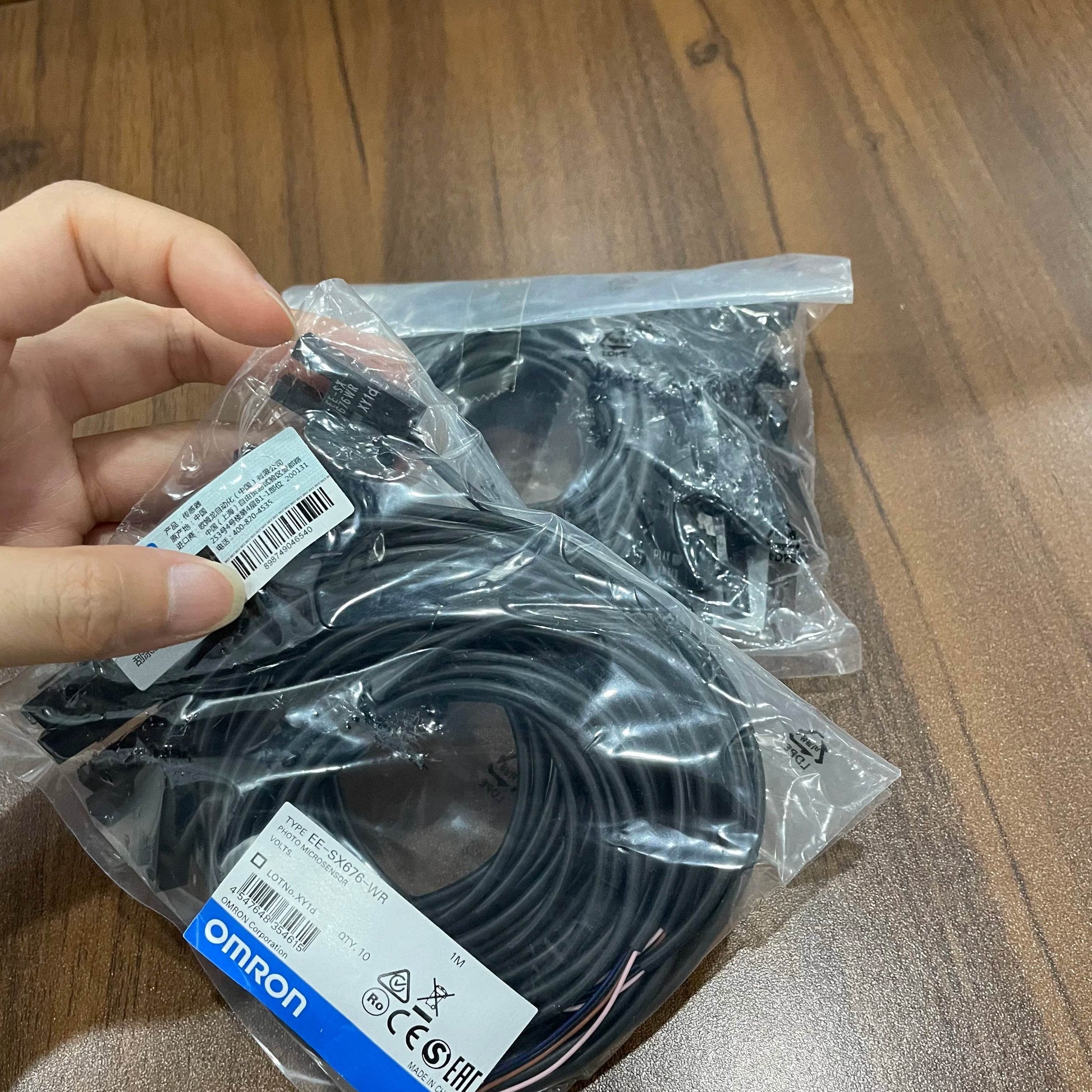

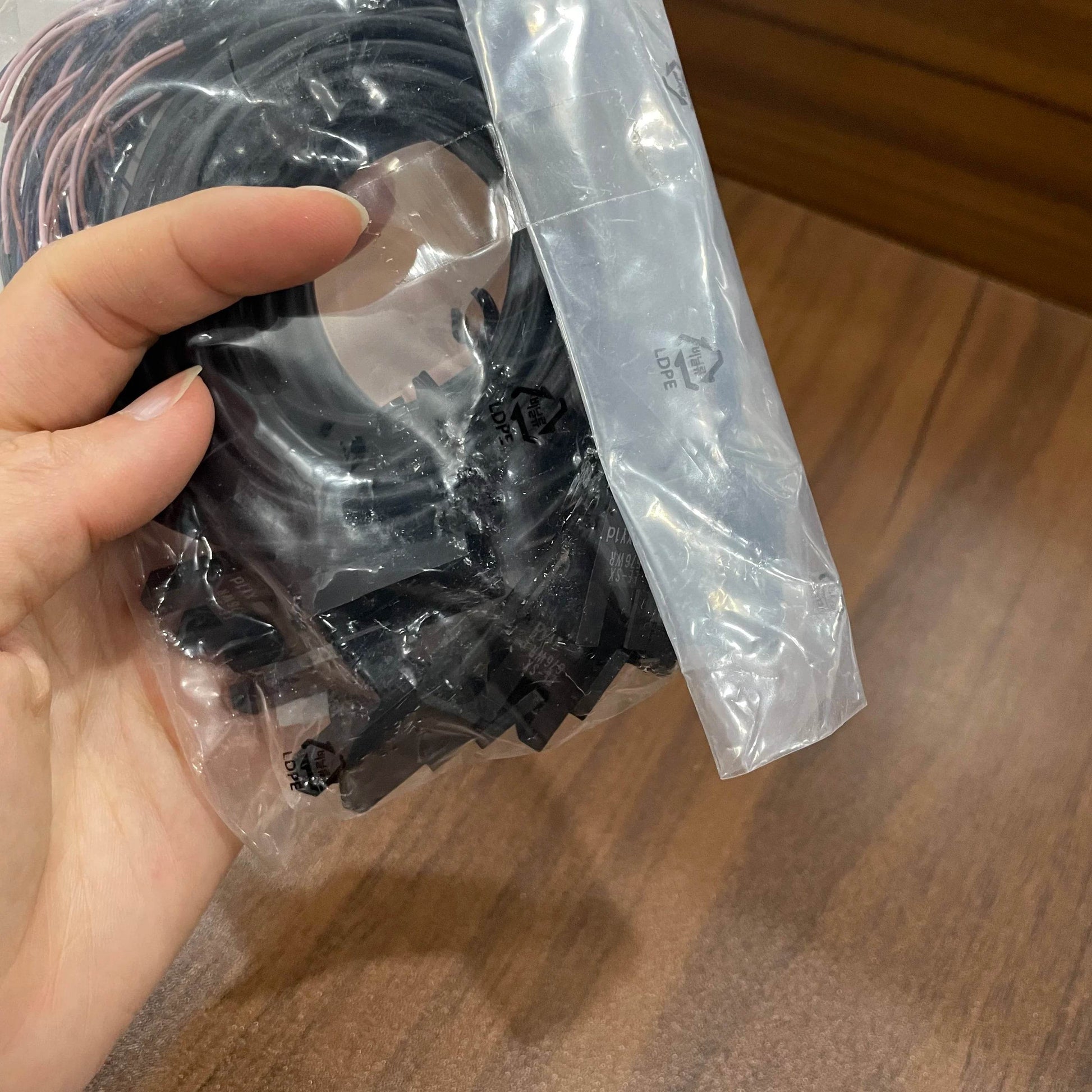

Compact Slot Sensor EE-SX676-WR - 5mm Detection, Through-Beam, NPN Output, IP50
Compact Slot Sensor EE-SX676-WR - 5mm Detection, Through-Beam, NPN Output, IP50
SKU(재고 관리 코드):EE-SX676-WR
Package size: 13X11X5CM정가
$7.00 USD
정가
할인가
$7.00 USD
단가
/
단위
Exclusive pricing & tailored solutions await!
Product Overview
The EE-SX676-WR is a photoelectric sensor designed for precise object detection. It belongs to the through-beam sensor series, offering reliable performance in various industrial applications. This sensor consists of a separate emitter and receiver, detecting objects when the light beam between them is interrupted.
Key Features
- Supported I/O: NPN output configuration
- Detection Method: Through-beam
- Dimensions (Emitter): 15mm x 30mm x 10mm (W x H x D)
- Dimensions (Receiver): 15mm x 30mm x 10mm (W x H x D)
- Power Supply Voltage: 5-24V DC ±10%
- Current Consumption: 15mA max (Emitter), 15mA max (Receiver)
- Response Time: 1ms max
- Light Source: Infrared LED (wavelength 950nm)
- Operating Temperature: -25°C to 55°C
- Protection Rating: IP50
Applications
- Object detection in automated assembly lines
- Position verification in packaging machinery
- Counting applications in material handling systems
- Presence detection in conveyor systems
- Security systems for door monitoring
Technical Specifications
| Parameter | Value |
|---|---|
| Model | EE-SX676-WR |
| Type | Through-beam photoelectric sensor |
| Output Configuration | NPN |
| Emitter Dimensions | 15mm × 30mm × 10mm |
| Receiver Dimensions | 15mm × 30mm × 10mm |
| Power Supply | 5-24V DC ±10% |
| Current Consumption (Emitter) | 15mA max |
| Current Consumption (Receiver) | 15mA max |
| Response Time | 1ms max |
| Light Source | Infrared LED (950nm) |
| Detection Distance | 5m max |
| Operating Temperature | -25°C to 55°C |
| Protection Rating | IP50 |
| Connection Method | Pre-wired (2m cable) |
