1.5kW Servo Drive R88D-1SN08H-ECT with EtherCAT Communication

1.5kW Servo Drive R88D-1SN08H-ECT with EtherCAT Communication

SKU:R88D-1SN08H-ECT

Package size:
Regular price $287.00 USD
Regular price Sale price $287.00 USD
Sale Sold out
Exclusive pricing & tailored solutions await!

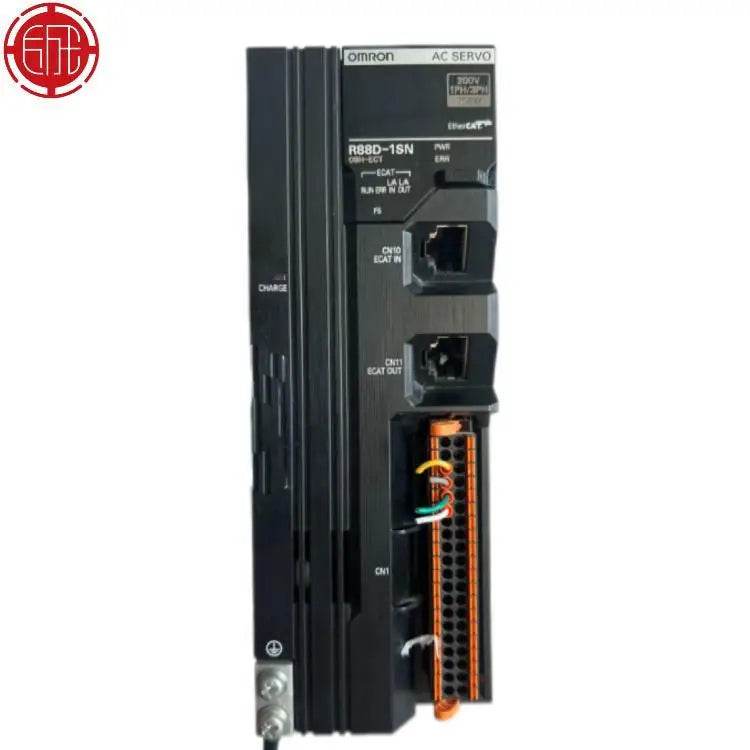

Omron R88D-1SN08H-ECT 1S Series Servo Drive – Precision Motion Control Solution

The Omron R88D-1SN08H-ECT is a high-performance servo drive from the acclaimed 1S series, engineered to deliver exceptional motion control accuracy, dynamic response, and energy efficiency in industrial automation applications. Designed for seamless integration with Omron's servo motors and automation systems, this drive combines advanced control algorithms with robust hardware to meet the demands of modern manufacturing environments. With its compact DIN-rail mountable design and 200-230V single-phase input, the R88D-1SN08H-ECT provides a perfect balance of power density and installation flexibility for space-constrained applications.

Advanced Technical Features

  • Precision Current Control: Delivers 8.0A peak (3.0A continuous) output current with advanced vector control technology for smooth torque delivery across the entire speed range.
  • Ultra-High Resolution Feedback: Supports 17-bit (131,072 pulses/revolution) incremental encoders for sub-micron positioning accuracy in critical applications.
  • Dual Control Interface: Compatible with both pulse train input (up to 4MHz differential/500kHz open collector) and ±10V analog voltage input for flexible system integration.
  • Dynamic Performance: Features real-time auto-tuning, adaptive vibration suppression, and advanced gain adjustment algorithms for optimal motion profile execution.
  • Compact Powerhouse: Measures just 45×130×104mm (W×H×D) with 0.8kg weight, offering one of the highest power-to-size ratios in its class (750W max).
  • Robust Protection: IP20-rated enclosure with comprehensive safeguards including overcurrent, overvoltage, and overheating protection circuits.
  • Energy Efficient: Incorporates regenerative braking and power optimization algorithms to minimize energy consumption during operation.
  • Warranty Assurance: Backed by Omron's standard 1-year manufacturer warranty for guaranteed performance and reliability.

Industrial Applications

The R88D-1SN08H-ECT servo drive excels in applications requiring precise speed and position control:

  • High-Speed Automation: Ideal for precision assembly systems, high-speed pick-and-place units, and synchronized conveyor networks in electronics and automotive manufacturing.
  • Advanced Robotics: Perfect for SCARA robots, articulated arms, and delta robot configurations requiring rapid acceleration/deceleration and precise repeatability.
  • Machine Tool Systems: Provides exceptional performance for CNC milling centers, lathes, EDM machines, and laser processing equipment with demanding contouring requirements.
  • Packaging Technology: Enables high-speed operation of form-fill-seal machines, labeling systems, and cartoning equipment with superior motion smoothness.
  • Semiconductor Handling: Critical for wafer steppers, die bonders, and other cleanroom equipment requiring nanometer-level positioning accuracy.
  • Medical Device Manufacturing: Supports precision motion requirements in automated diagnostic equipment, surgical robot arms, and pharmaceutical packaging lines.

Detailed Technical Specifications

Parameter Detailed Specification
Power Supply 200-230VAC single-phase (+10%/-15% voltage tolerance), 50/60Hz, 1.5kVA max
Output Characteristics 3.0A continuous (RMS), 8.0A peak (for ≤1 second), 750W maximum power output
Control Modes Position control (pulse train input), speed control (analog voltage), torque control (analog voltage)
Feedback System Incremental encoder interface (A/B/Z phase, 17-bit resolution), compatible with Omron R88M-K series servo motors
Command Input Differential line driver (RS-422) or open collector pulse input, ±10V analog input (12-bit resolution)
Communication Interface Standard I/O signals (24VDC): Servo ON, Alarm, Positioning Complete, etc.
Protection Functions Overcurrent, overvoltage, undervoltage, overload, overspeed, encoder error, and overheating protection
Environmental Ratings Operation: 0-55°C (32-131°F), Storage: -20-85°C (-4-185°F), 20-90% RH (non-condensing)
Physical Dimensions 45mm (W) × 130mm (H) × 104mm (D), DIN rail mountable (35mm)
Weight 0.8kg (1.76lbs) - lightweight yet durable metal housing
Compliance Standards CE, UL, cUL (pending verification with latest Omron specifications)
Warranty Coverage 1-year limited warranty from date of purchase (subject to Omron's standard terms and conditions)

System Integration Advantages

The R88D-1SN08H-ECT servo drive is designed for seamless integration with Omron's automation ecosystem. Its plug-and-play compatibility with Omron's R88M-K series servo motors reduces commissioning time, while the standardized I/O interface ensures straightforward connection to Omron PLCs and motion controllers. The drive's advanced tuning capabilities automatically optimize performance parameters for connected motors, eliminating complex manual adjustments. For system designers, the compact form factor allows high-density panel mounting, significantly reducing control cabinet space requirements compared to conventional servo drives.
