16-Point DC Input Unit CJ1W-ID211 for High-Speed Industrial Automation

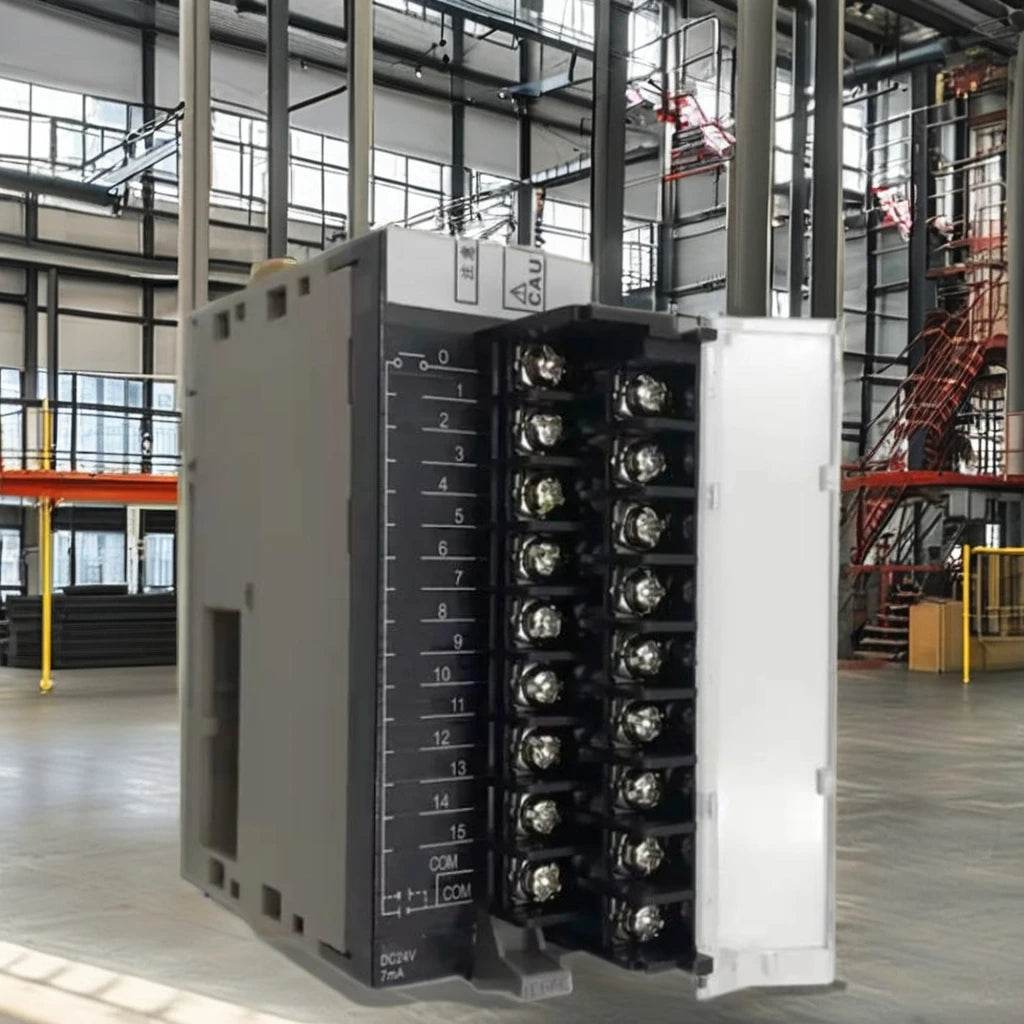

Omron CJ1W-ID211 Digital Input Module - Comprehensive Overview

The Omron CJ1W-ID211 represents the pinnacle of industrial-grade digital input technology, specifically engineered for mission-critical automation applications. As a core component of Omron's CJ Series Programmable Controller family, this 16-point DC input module delivers unmatched signal processing reliability in harsh industrial environments. The CJ1W-ID211 excels in converting discrete sensor signals (24V DC) into PLC-readable data with exceptional speed and precision, making it indispensable for modern manufacturing systems. Its ruggedized design incorporates advanced noise suppression and electrical isolation technologies, ensuring stable operation even in electrically noisy factory settings. Engineered in compliance with international safety standards including UL, CE, and IEC, this module offers plant engineers a trusted solution for high-density input applications.

Key Features and Operational Advantages

• High-Speed 16-Channel Input Processing: Processes up to 16 discrete DC inputs simultaneously with individual channel response times as fast as 1ms (ON→OFF) and 1.5ms (OFF→ON), enabling precise event capture in high-speed automation sequences.
• Industrial Voltage Tolerance: Designed for 24V DC nominal operation with an extended working range of 19.2-28.8V DC (±10% variation tolerance) to accommodate real-world voltage fluctuations in plant environments.
• Advanced Signal Integrity: Incorporates optical isolation (1500Vrms for 1 minute) between field inputs and internal logic circuits, preventing ground loops and suppressing electromagnetic interference.
• Space-Efficient Modular Design: Compact 31×90×65mm footprint (DIN rail mountable) allows dense panel configurations without compromising accessibility or heat dissipation.
• Energy-Optimized Architecture: Consumes only 80mA maximum at 5V DC and 10mA at 24V DC, reducing overall system power requirements and heat generation.
• Industrial-Grade Connectivity: Features vibration-resistant screw terminal blocks (accepting 0.3-2.5mm² conductors) that maintain secure connections in high-shock environments.
• Environmental Robustness: Operates reliably across 0-55°C with 10-90% non-condensing humidity, withstanding industrial vibration (10-150Hz) and shock (147m/s²).
• Manufacturer Warranty: Backed by Omron's 1-year limited warranty covering defects in materials and workmanship (proof of purchase required).

Industrial Implementation Scenarios

• Automated Production Lines: Ideal for monitoring emergency stops, safety interlocks, and position sensors in automotive assembly and electronics manufacturing systems.
• Material Transport Systems: Provides reliable input processing for photoelectric sensors, limit switches, and encoder signals in conveyor networks and AS/RS installations.
• Robotic Workcells: Interfaces seamlessly with robotic end-effector sensors and peripheral equipment in welding, painting, and machine tending applications.
• Packaging Operations: Ensures precise timing synchronization for filling heads, capping stations, and labeling machines in food/pharmaceutical packaging lines.
• Process Industry Applications: Monitors discrete signals from flow switches, level detectors, and pressure sensors in chemical processing and water treatment plants.
• Test and Measurement Systems: Captures high-speed digital signals from test fixtures and inspection equipment in quality control stations.

Technical Specifications - Omron CJ1W-ID211

Parameter Category	Detailed Specification
Product Identification	Omron CJ Series CJ1W-ID211 Digital Input Module (16-point)
Electrical Characteristics	Input Type: Sinking (NPN) DC input configuration Rated Voltage: 24V DC ±10% (19.2-28.8V operational range) Input Current: 7mA typical per point at 24V DC ON Threshold: ≥17V DC at 3mA input current OFF Threshold: ≤5V DC at 1mA input current
Performance Metrics	Response Time: 1ms (ON→OFF), 1.5ms (OFF→ON) maximum Isolation: 1500Vrms photocoupler isolation (inputs to internal circuit) Refresh Cycle: Synchronized with CJ Series PLC scan time
Power Requirements	Backplane Current: 80mA maximum at 5V DC Field-Side Current: 10mA maximum at 24V DC
Physical Attributes	Dimensions: 31(W)×90(H)×65(D) mm (1.22×3.54×2.56 inches) Weight: 200g (7.05 oz) Mounting: 35mm DIN rail compliant Terminals: Removable screw-clamp type (18-point block)
Environmental Ratings	Operating Temperature: 0 to 55°C (32 to 131°F) Storage Temperature: -25 to 65°C (-13 to 149°F) Humidity Range: 10% to 90% RH (non-condensing) Vibration Resistance: 10-57Hz at 0.075mm, 57-150Hz at 9.8m/s² Shock Resistance: 147m/s² (3 shocks in 6 directions)
Compliance & Warranty	Safety Standards: UL, CSA, CE, EN 61131-2, IEC 61010-2-201 EMC Compliance: EN 61326-1 (Industrial Locations) Warranty Coverage: 1-year limited manufacturer warranty

System Integration Capabilities

The CJ1W-ID211 module integrates natively with Omron CJ Series PLC platforms including CJ1H, CJ1M, CJ2H, and CJ2M CPU units. Its modular architecture supports flexible configuration in control systems ranging from standalone machines to distributed automation networks. The module's high-speed input processing complements motion control applications when paired with Omron's NJ/NX Series controllers. For optimal performance, maintain proper clearance (≥50mm) between modules and ensure adequate ventilation in enclosed panels.

Installation Best Practices

Implement proper grounding techniques using AWG 14 (2.5mm²) grounding wire connected to the CJ Series backplane. Route input wiring separately from AC power lines and high-voltage cables to prevent noise coupling. Use shielded cables for long wire runs (>30m) with the shield grounded at one end only. Periodically inspect terminal block tightness (recommended torque 0.5N·m) in high-vibration installations. The module's IP20 protection rating requires installation in a properly rated enclosure for dusty or wet environments.

Ordering Information

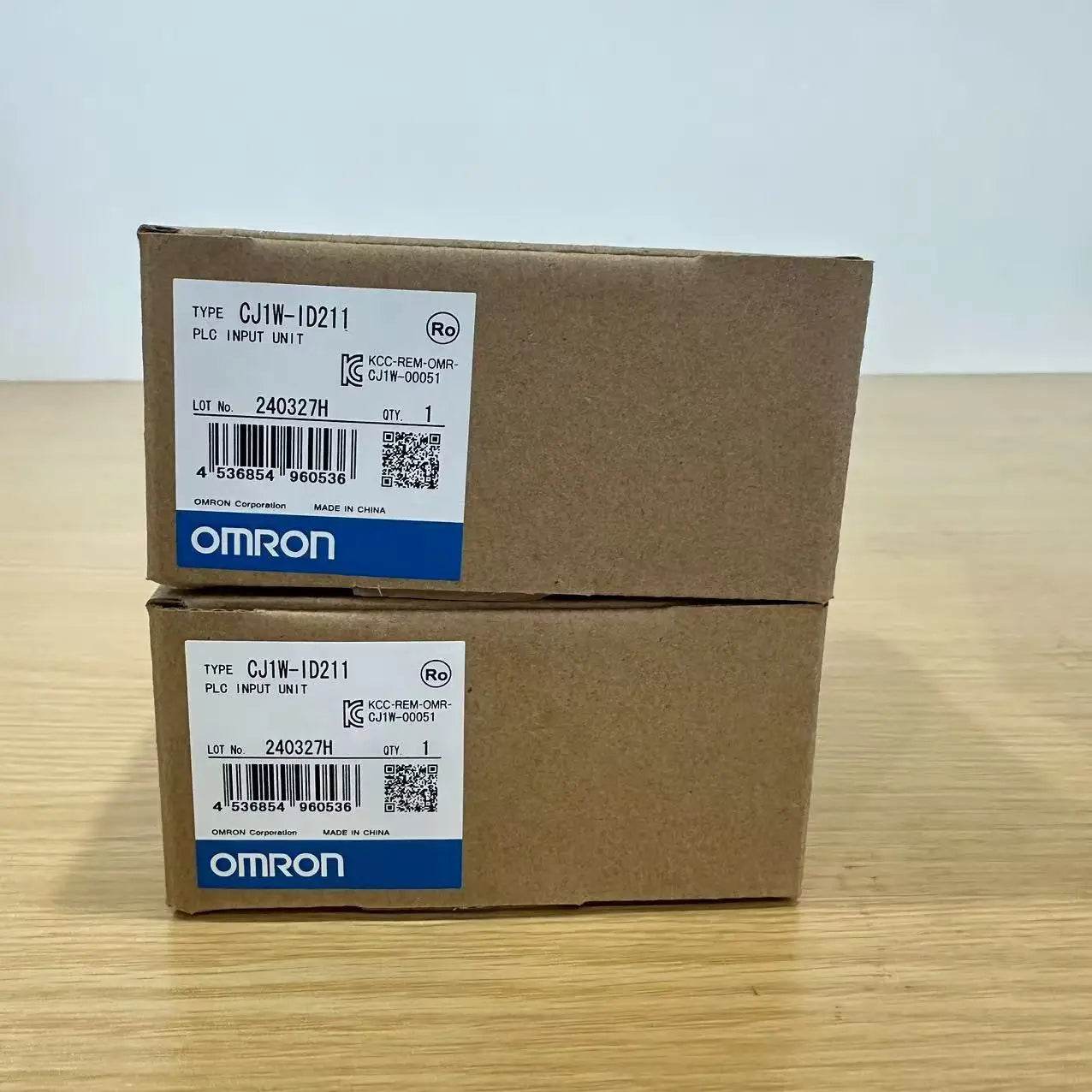

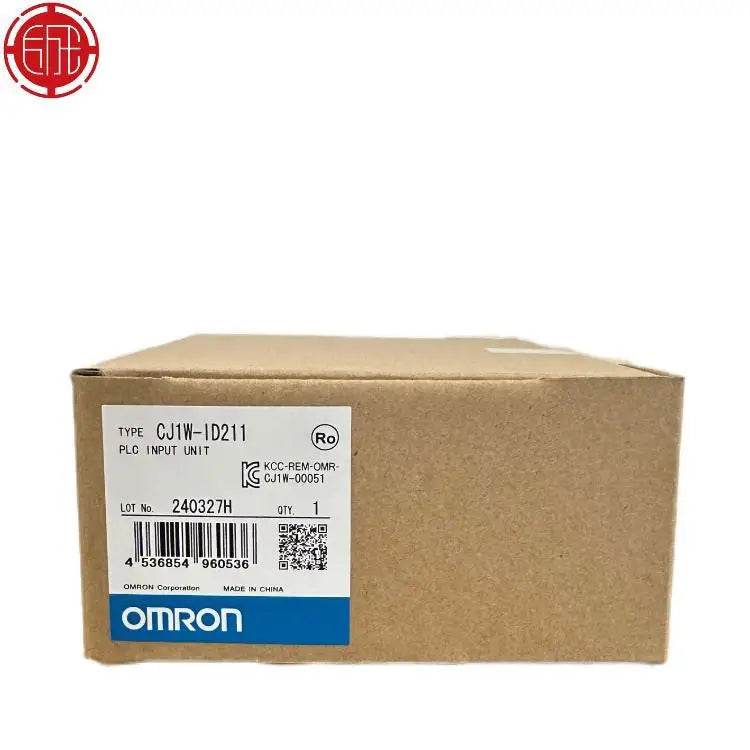

The Omron CJ1W-ID211 digital input module ships complete with terminal block and mounting accessories. Verify compatibility with existing CJ Series configurations before procurement. For high-volume applications, consult authorized Omron distributors regarding quantity pricing and lead times.
