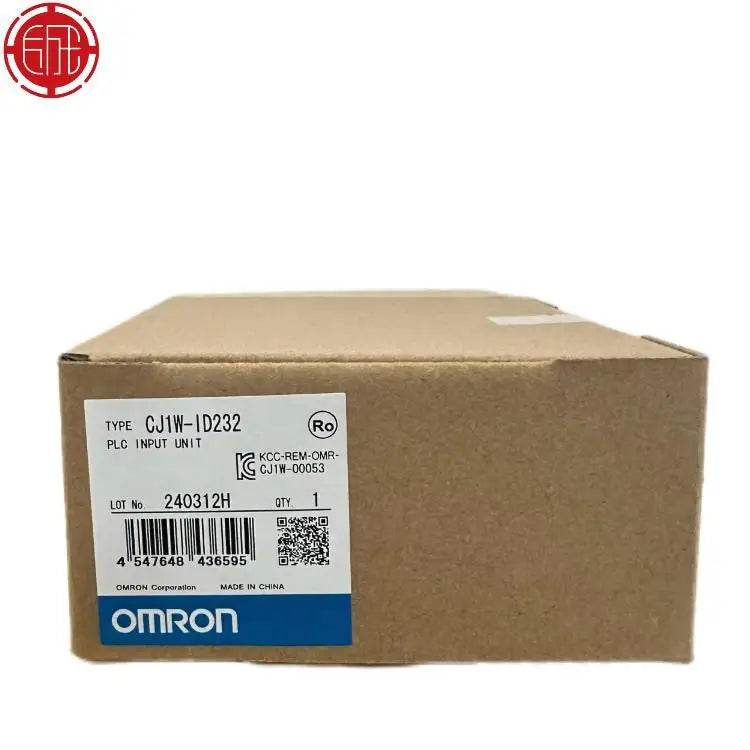

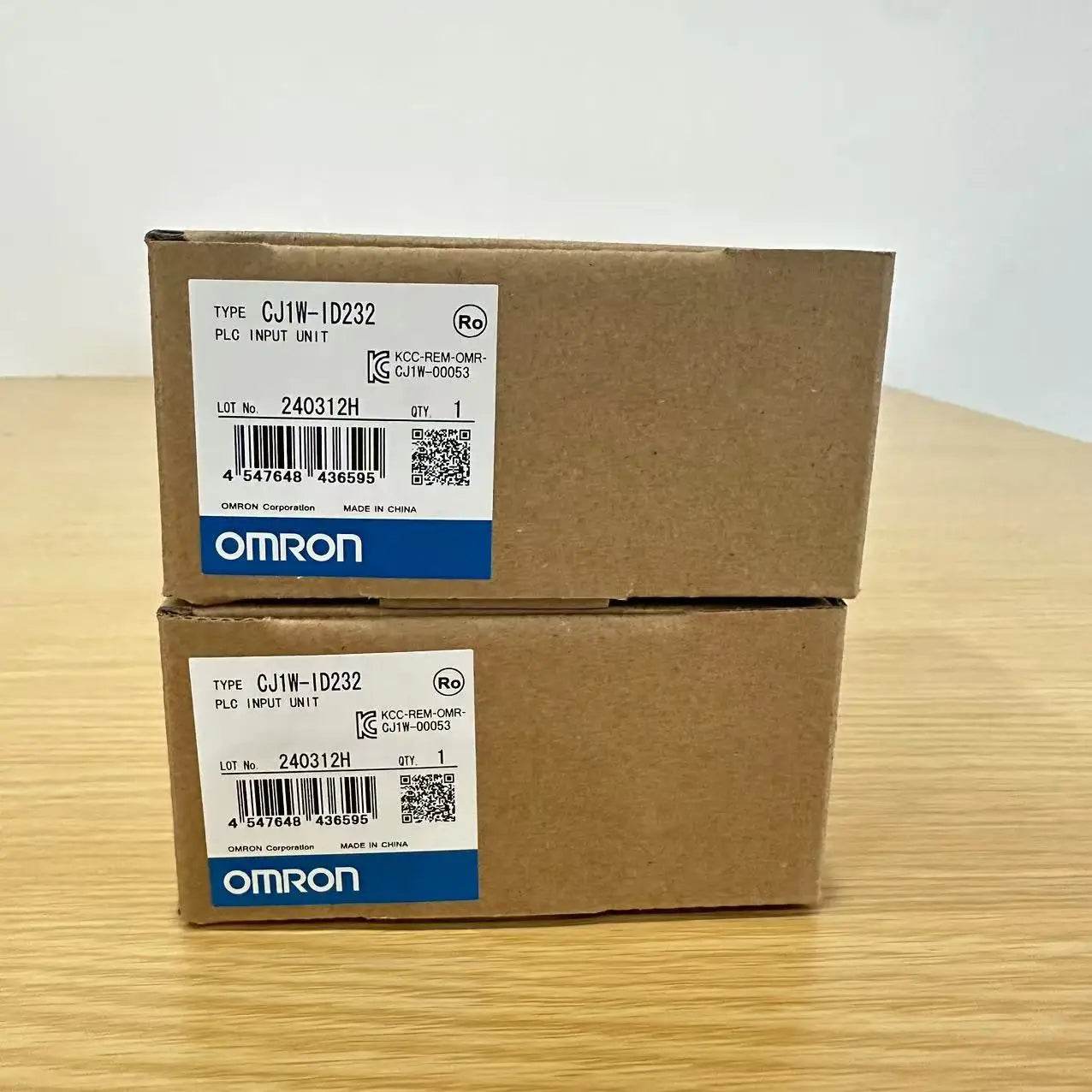

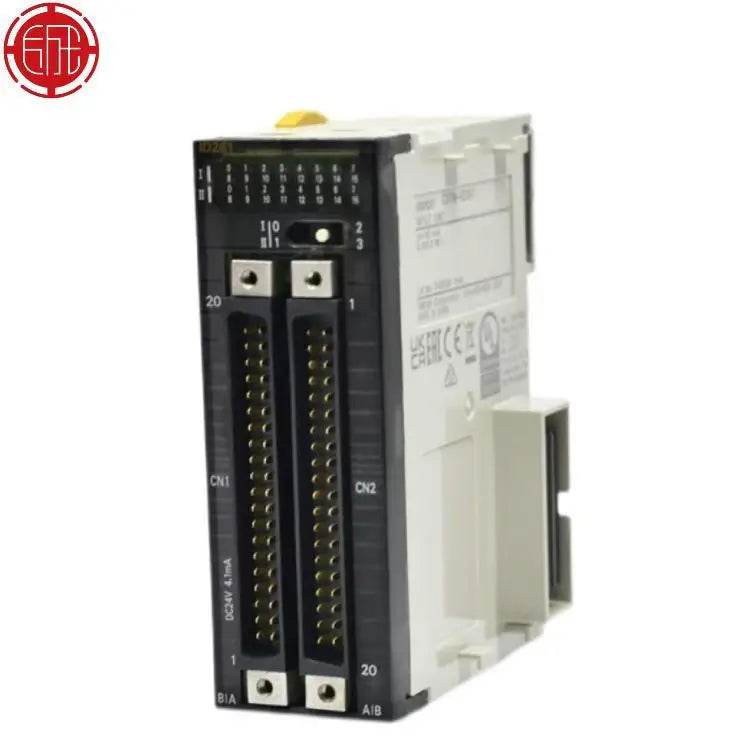

16-Point Digital Input Unit CJ1W-ID232 for High-Speed PLC Systems
16-Point Digital Input Unit CJ1W-ID232 for High-Speed PLC Systems
SKU:CJ1W-ID232
Package size: 14X12X7CMRegular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Unit price
/
per
Exclusive pricing & tailored solutions await!
Product Overview
The CJ1W-ID232 is a digital input module designed for industrial automation systems. It belongs to the CJ series of modular I/O units, providing high-speed and reliable input signal processing. This module supports 32 DC input points, making it suitable for applications requiring multiple sensor or switch inputs.
Key Features
- Input Points: 32 DC inputs
- Input Voltage: 24 V DC
- Operating Voltage Range: 19.2 to 28.8 V DC
- Current Consumption: 80 mA max (at 5 V), 10 mA max (at 24 V)
- Dimensions (W × H × D): 31 × 90 × 65 mm
- Weight: Approx. 200 g
- Response Time: 1 ms max (ON to OFF), 1.5 ms max (OFF to ON)
- Isolation: Photocoupler isolation between inputs and internal circuits
Applications
This module is commonly used in industrial control systems where multiple digital inputs are required, such as:
- Machine automation
- Process control systems
- Conveyor belt monitoring
- Safety interlock systems
- Packaging machinery
Technical Specifications
| Parameter | Value |
|---|---|
| Input Type | 32-point DC input |
| Input Voltage | 24 V DC |
| Operating Voltage Range | 19.2 to 28.8 V DC |
| Input Current | 6 mA (typical at 24 V) |
| ON Voltage/ON Current | Min. 17 V DC / 3 mA |
| OFF Voltage/OFF Current | Max. 5 V DC / 1 mA |
| Response Time | 1 ms max (ON to OFF), 1.5 ms max (OFF to ON) |
| Isolation | Photocoupler isolation |
| Current Consumption (5 V) | 80 mA max |
| Current Consumption (24 V) | 10 mA max |
| Dimensions (W × H × D) | 31 × 90 × 65 mm |
| Weight | Approx. 200 g |
