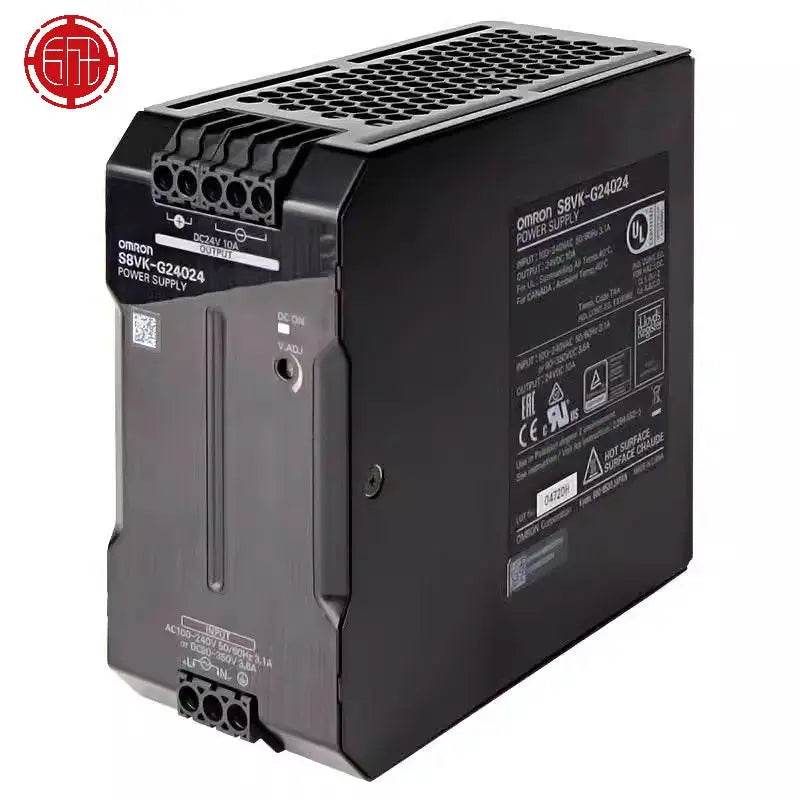

Omron S8VK-G24024 Industrial Power Supply Unit - 240W 24V DC (10A)

Premium Industrial Power Solution for Automation Systems

The Omron S8VK-G24024 represents the gold standard in industrial power supply technology, delivering exceptional 24V DC power for mission-critical automation applications. Engineered by Omron's power specialists, this 240W unit (24V DC at 10A continuous output) provides unmatched reliability for powering PLC systems, industrial controllers, motor drives, and sensitive automation equipment. The rugged metal housing (130×65×125mm) combines compact dimensions with industrial-grade durability, while advanced circuit protection ensures stable operation even in electrically noisy environments. Backed by Omron's stringent quality control and a 1-year manufacturer's warranty, the S8VK-G24024 is the intelligent choice for engineers specifying power solutions for industrial automation projects.

Key Features and Technical Advantages

• Universal AC Input with Intelligent Power Management: Auto-ranging 100-240V AC input (47-63Hz) accommodates global voltage standards without manual adjustment, with 85-264V AC operational range for extreme grid conditions.
• Precision Voltage Regulation: Maintains 24V DC output within ±1% for line variations and ±3% for load changes (22.8-26.4V adjustable range) with ultra-low ripple noise ≤150mVp-p.
• Energy-Efficient Operation: Achieves ≥89% conversion efficiency (typical at 230V AC full load) with ≤0.5W no-load power consumption, reducing operational costs and thermal stress.
• Industrial-Grade Protection: Comprehensive safeguards including overcurrent (110-150% range), overvoltage (28-35V cutoff), and short-circuit protection with automatic recovery.
• Robust Mechanical Design: Heavy-duty metal enclosure (1.2kg) with IP20 protection rating, vibration-resistant construction, and fanless cooling for silent operation.
• Extended Temperature Performance: Reliable operation from -10°C to +60°C ambient temperature (-20°C to +70°C storage) with 2.5%/°C derating above 50°C.
• Global Compliance: Certified to UL 60950-1, EN 60950-1, IEC 60950-1, and EN 50178 standards with EN 61204-3 (EMS) and EN 55011 Class A (EMI) compliance.

Industrial Applications and System Integration

The Omron S8VK-G24024 power supply is engineered for seamless integration into demanding industrial environments:

• Factory Automation: Centralized power for PLC racks (Omron NJ/NX/CP1 series), I/O modules, and control panels in automotive, electronics, and discrete manufacturing
• Motion Control Systems: Reliable power source for servo amplifiers (Omron R88D series), stepper drives, and robotic controllers
• Process Equipment: Continuous operation for packaging machinery, CNC systems, printing presses, and material handling conveyors
• Industrial Networks: Stable power for EtherCAT, DeviceNet, and EtherNet/IP communication modules and network switches
• Test & Measurement: Clean power for precision instrumentation, vision systems, and quality control stations
• Building Automation: HVAC controls, access systems, and lighting control panels requiring 24V DC power

Comprehensive Technical Specifications

Category	Detailed Specifications
Product Identification	Omron S8VK-G24024 (verified against Omron P/N S8VK-G24024)
Input Characteristics	100-240V AC ±10% (auto-ranging), 47-63Hz, 4.5A max at 100V AC / 2.0A max at 240V AC
Output Performance	24V DC nominal (22.8-26.4V adjustable), 10A continuous (240W), constant voltage mode
Power Characteristics	89% typical efficiency at 230V AC full load, ≤0.5W no-load consumption, power factor ≥0.95 at full load
Electrical Performance	±1% line regulation, ±3% load regulation, ≤150mVp-p ripple noise (20MHz BW), ≤1% setpoint drift over temperature
Dynamic Response	≤500μs recovery time for 50% load step, 20ms minimum hold-up time at full load (230V AC)
Protection Features	Overcurrent (110-150% Iout), overvoltage (28-35V), short-circuit, automatic recovery design
Mechanical Design	130(W)×65(H)×125(D) mm ±2mm, 1.2kg ±5%, metal enclosure with IP20 protection
Thermal Performance	-10°C to +60°C operating (derate linearly 2.5%/°C above 50°C), -20°C to +70°C storage
Environmental Ratings	20-85% RH non-condensing, 5000m altitude max, pollution degree 2
Mounting Options	DIN rail TS35/7.5 or 15 compliant, panel mounting with M4 screws (included)
Terminal Specifications	Screw terminal block (input: 2 poles, output: 3 poles), accepts 12-22 AWG wire
Safety Certifications	UL 60950-1, EN 60950-1, IEC 60950-1, EN 50178, CE marked per LVD and EMC directives
EMC Performance	EN 61204-3 (EMS), EN 55011 Class A (EMI), withstands 2kV surge per EN 61000-4-5
Warranty Coverage	1-year limited manufacturer warranty against defects in materials and workmanship

Installation Guidelines and Operational Notes

For optimal performance of your Omron S8VK-G24024 power supply, maintain ≥50mm clearance on all sides for proper ventilation. Install on standard DIN rail (TS35/7.5 or 15) using the integrated clip mechanism, or panel mount using provided M4 hardware. Ensure proper grounding (≤0.1Ω resistance) using the designated ground terminal. Input wiring should use 14-18 AWG copper conductors with 600V insulation rating, protected by a 10A slow-blow fuse or circuit breaker. Output wiring for full 10A load should use minimum 16 AWG wire. Derate output power by 2.5% per °C above 50°C ambient temperature - at 60°C maximum ambient, maximum output is 192W (8A). The unit is designed for indoor use in pollution degree 2 environments only.
