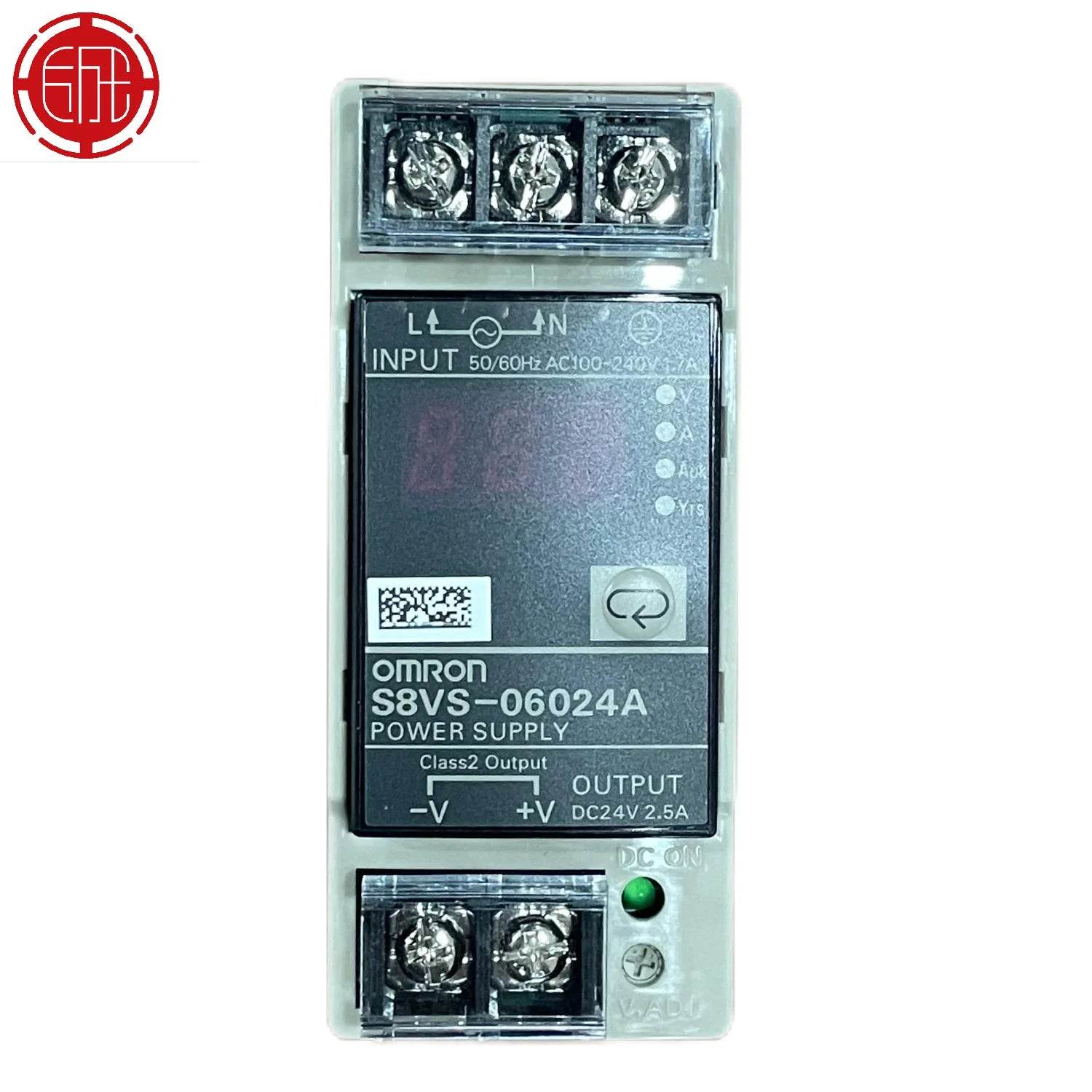

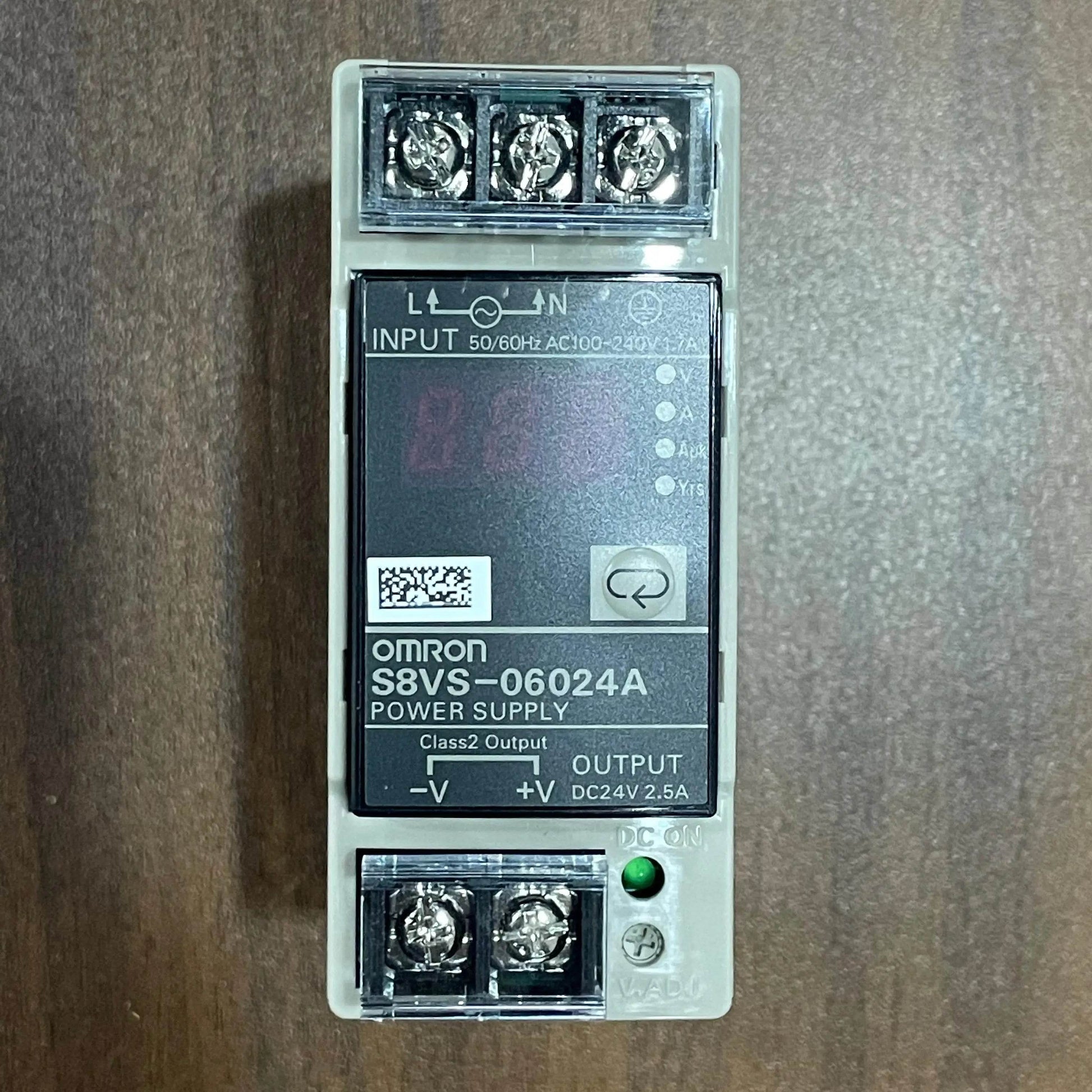

Omron S8VS-06024A Industrial Switching Power Supply - 24V DC, 2.5A, 60W

Premium Industrial Power Solution for Automation Systems

The Omron S8VS-06024A represents the gold standard in industrial power supplies, delivering unmatched reliability for mission-critical automation applications. This DIN-rail mounted switching power supply converts 100-240V AC input to precisely regulated 24V DC output, engineered to power Omron PLCs, HMIs, and industrial control systems with absolute voltage stability. With military-grade components and advanced switching technology, the S8VS series ensures continuous operation in harsh industrial environments where power quality directly impacts production uptime and equipment longevity.

Key Features and Technical Advantages

• Global Voltage Compatibility: Wide input range 100-240V AC (±10% tolerance) with 50/60Hz auto-sensing capability for worldwide deployment without manual adjustments
• Precision Voltage Regulation: Maintains 24V DC output within ±1% accuracy (22.8-26.4V adjustable range) even with ±10% input fluctuations or 0-100% load changes
• High-Efficiency Design: 89% typical conversion efficiency at full load reduces energy costs by minimizing thermal losses and electricity consumption
• Industrial-Grade Protection: Triple safety system with overcurrent (105-150% rated current), overvoltage (28V DC cutoff), and short-circuit protection with automatic recovery
• Extended Temperature Range: Certified operation from -10°C to +60°C ambient temperature with linear derating above 40°C (90% load at 50°C, 70% at 60°C)
• Ultra-Low Noise Output: ≤120mVp-p ripple voltage ensures compatibility with sensitive measurement equipment and high-resolution sensors
• DIN Rail Optimized: Compact 90×55×98mm footprint with tool-free TS35/7.5 or 15mm DIN rail mounting for space-constrained control panels
• Maintenance-Free Operation: Fanless design with natural convection cooling eliminates moving parts for silent 24/7 operation
• Rigorous Safety Certification: Complies with UL508, CSA C22.2 No. 14, EN 50178, and IEC/EN 60950-1 standards for industrial equipment
• Manufacturer Warranty: 1-year limited warranty covering manufacturing defects (proof of purchase required)

Industrial Applications and Use Cases

The Omron S8VS-06024A powers critical automation infrastructure across multiple industries:

• Factory Automation: Primary power source for Omron NJ/NX-series PLCs, CP1E controllers, and NS-series HMIs in assembly line control systems
• Process Control: Reliable DC power for distributed I/O modules including Omron G3PA/G3PB solid-state relays and E3Z photoelectric sensors
• Motion Control: Clean power delivery for Omron R88D servo drives and 5-phase stepper motor controllers
• Packaging Machinery: Consistent voltage for Omron K3SC safety relays and E2E proximity sensors in high-speed packaging lines
• Robotic Systems: Power backbone for Omron TM collaborative robots and FH vision system controllers
• Building Automation: Integration with Omron ZEN programmable relays for HVAC and lighting control applications

Comprehensive Technical Specifications

Category	Detailed Specifications
Input Power Characteristics	Universal input: 100-240V AC (85-264V AC operational range), 47-63Hz frequency, 1.2A max at 100V AC, 0.6A at 200V AC
Power Factor	≥0.95 at 230V AC input (full load condition)
Inrush Current Protection	NTC thermistor limited to ≤30A for 230V AC input (typical 5ms duration)
Output Performance	24V DC nominal (22.8-26.4V adjustable), 2.5A continuous (60W), 3A peak for ≤5s (72W max)
Load Regulation	≤±0.5% for 10-100% load variation at constant line voltage
Line Regulation	≤±0.5% for 85-264V AC input variation at constant load
Dynamic Response	≤500μs recovery time for 50% load step change with ≤5% voltage deviation
Environmental Ratings	Operating: -10°C to +60°C (derating 2.5%/°C above 40°C), Storage: -20°C to +70°C, 20-85% RH non-condensing
Mechanical Specifications	90mm(W)×55mm(H)×98mm(D), 400g weight, 1.5mm steel enclosure with IP20 protection
Terminal Connections	Screw terminals (0.2-2.5mm² / 12-24 AWG), torque 0.5Nm, accepts ring terminals
Isolation Characteristics	Input-output: 3000V AC, Input-ground: 1500V AC, Output-ground: 500V AC
EMC Performance	EN 61204-3 compliant, EN 55011 Class A emissions, EN 61000-6-2 immunity
Reliability Metrics	MTBF >300,000 hours at 25°C per MIL-HDBK-217F, 100,000h electrolytic capacitor life
Approvals & Certifications	UL Listed (UL508), CSA Certified (C22.2 No. 14), CE Marked, RoHS2/REACH compliant

Installation Guidelines and Best Practices

The S8VS-06024A features tool-free DIN rail mounting (TS35/7.5 or 15mm) with secure snap-lock mechanism. For optimal thermal performance, maintain minimum 50mm clearance on sides and 100mm above unit. The bright green LED indicates power status (ON: lit, OFF: no power). Wiring should use 75°C copper conductors only - tighten terminal screws to 0.5Nm torque. For parallel operation (redundancy or higher current), install ORing diodes on output lines. This unit is designed for Pollution Degree 2 environments according to IEC 60664-1.

Compatibility Information

This power supply is engineered for seamless integration with Omron's industrial automation portfolio including: NJ/NX-series PLCs, NX/NY-series I/O, Sysmac automation platform, E5CC temperature controllers, G3PA solid state relays, and E3S-C photoelectric sensors. The clean DC output meets the stringent power requirements of Omron's servo drives (R88D series) and vision systems (FH/FZ series).
