3G3MX2-AB007-V2 Compact Inverter Drive, 0.75kW, 200V, 3-Phase, High Performance

Product Overview

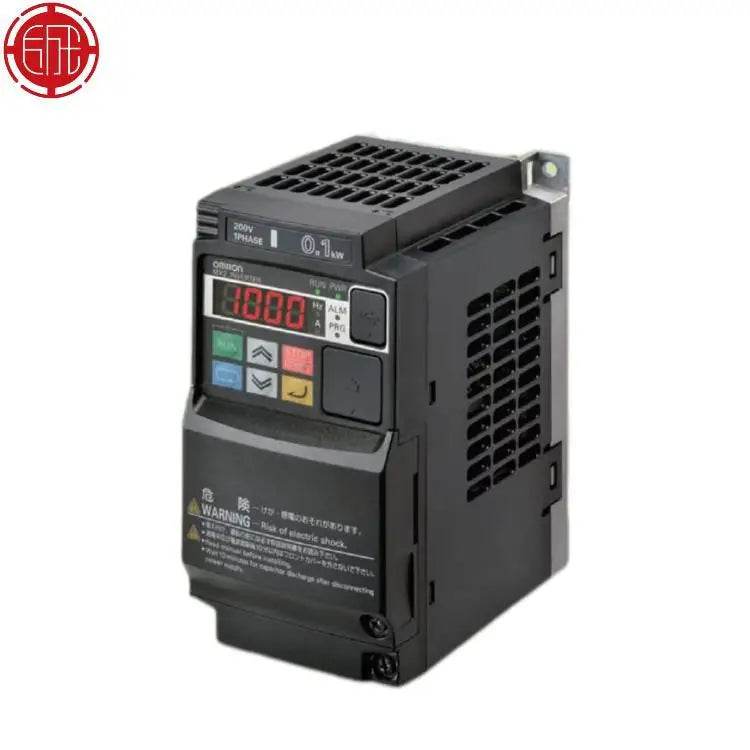

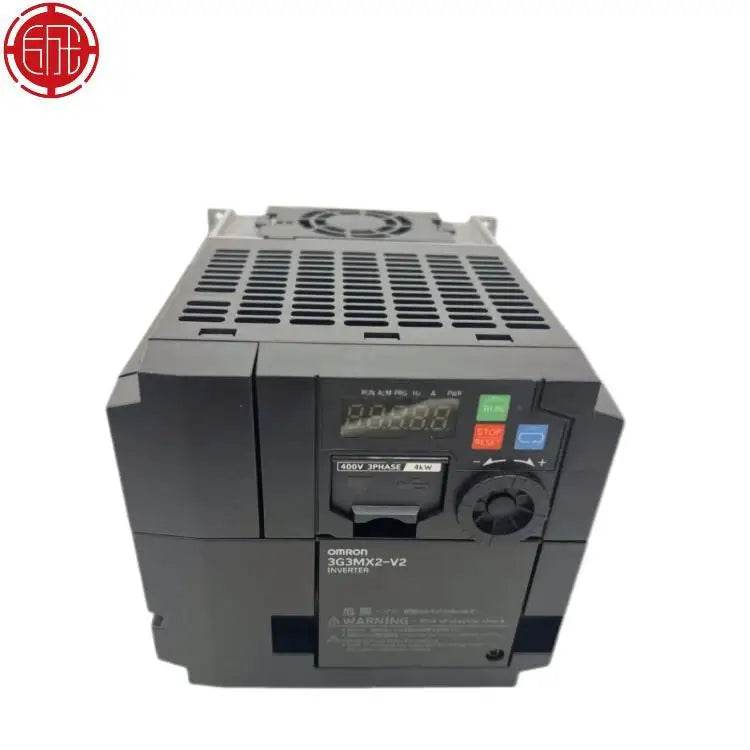

The Omron 3G3MX2-AB007-V2 is a high-performance, compact variable frequency drive (VFD) engineered for precise speed control of three-phase induction motors in industrial automation applications. As part of the MX2 series, this drive combines energy efficiency, reliability, and user-friendly operation, making it ideal for small to medium-duty motor control. With a robust design and advanced control algorithms, it ensures smooth motor operation while reducing energy consumption. This model is specifically rated for 0.75 kW (1 HP) motor output with an input voltage range of 200-240 V AC, suitable for a wide variety of industrial environments.

Key Features

• Advanced Motor Control: Supports both sensorless vector control and V/f control, ensuring optimal torque and speed regulation for various motor applications.
• Wide Input Voltage Range: Operates efficiently at 200-240 V AC, 50/60 Hz, accommodating fluctuating power conditions.
• Compact & Lightweight: Space-saving design with dimensions of 90 mm (W) × 130 mm (H) × 104.5 mm (D) and a weight of just 1.0 kg, ideal for panel mounting.
• Versatile I/O Configuration: Includes 2 digital inputs, 1 analog input (0-10 V), 1 relay output, and 1 open-collector output for flexible integration with control systems.
• High Durability: Built to withstand harsh industrial conditions with an IP20 protection rating and an operating temperature range of -10°C to +50°C.
• Energy-Efficient Operation: Reduces power consumption and minimizes motor wear, lowering operational costs.
• 1-Year Warranty: Backed by Omron’s standard warranty, ensuring reliability and peace of mind.

Applications

The Omron 3G3MX2-AB007-V2 is widely used in industrial automation and process control, including:

• Conveyor Systems: Provides smooth speed control for material handling and logistics applications.
• Pump & Fan Control: Optimizes flow and pressure regulation while reducing energy consumption.
• Packaging Machinery: Ensures precise motor synchronization for consistent packaging operations.
• Material Handling Equipment: Enhances efficiency in automated lifting and transport systems.
• Food Processing: Suitable for hygienic environments with its compact and durable design.

Technical Specifications

Parameter	Specification
Model Number	3G3MX2-AB007-V2
Input Voltage	200-240 V AC, 50/60 Hz (±10%)
Output Power	0.75 kW (1 HP)
Output Current	4.0 A
Control Methods	Sensorless vector control, V/f control
Digital Inputs	2 (Programmable)
Analog Input	1 (0-10 V DC)
Relay Output	1 (250 V AC, 2 A resistive)
Open-Collector Output	1 (24 V DC, 50 mA)
Dimensions (W × H × D)	90 mm × 130 mm × 104.5 mm
Weight	1.0 kg
Protection Rating	IP20 (Enclosure)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Warranty	1 Year (Standard Manufacturer Warranty)
