48V 24A DIN Rail Power Supply, 480W, S8VK-S Series, High Efficiency

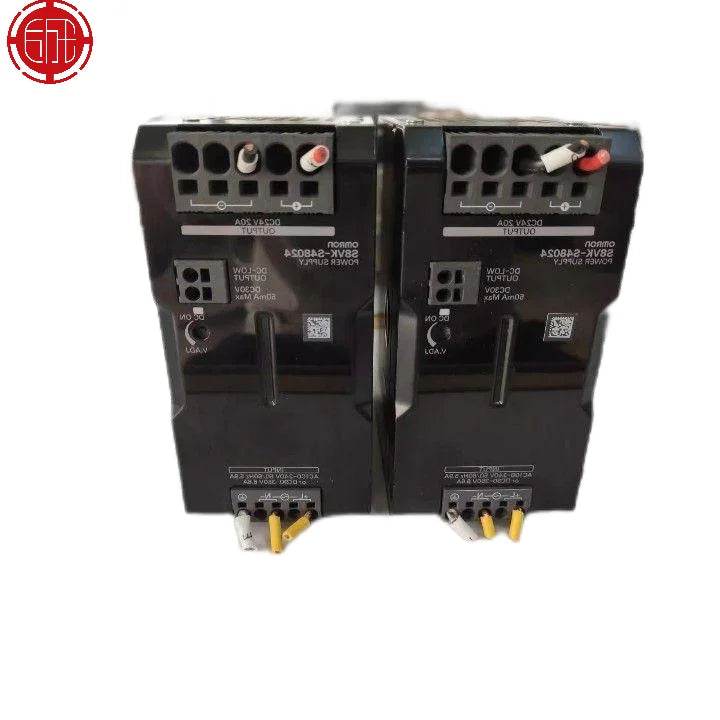

Omron S8VK-S48024 Industrial Switching Power Supply – Comprehensive Overview

The Omron S8VK-S48024 is a high-performance switching power supply engineered for industrial applications requiring stable and efficient power conversion. Part of the renowned S8VK series, this model delivers a 24V DC output at 20A (480W), ensuring reliable operation for demanding automation and control systems. Designed with precision and durability in mind, it features a wide input voltage range, robust protections, and forced air cooling for optimal thermal management. Backed by a 1-year manufacturer warranty, this power supply is ideal for industrial environments where consistent power delivery is critical.

Key Features and Benefits

• Universal Input Voltage: Supports 100-240V AC (50/60Hz), making it compatible with global power standards.
• Precision Output: Delivers a stable 24V DC ±2% with minimal ripple (≤120mV peak-to-peak).
• High Efficiency: ≥89% efficiency at full load (230V AC input), reducing energy waste and operational costs.
• Robust Power Delivery: 480W continuous output (20A) for powering industrial machinery, PLCs, and motor drives.
• Compact & Durable Design: Measures 150mm × 125mm × 135mm (W×H×D) and weighs 2.1kg, with a metal housing for industrial durability.
• Advanced Thermal Management: Integrated forced air cooling (fan included) ensures reliable operation in temperatures up to 50°C (derating required above 40°C).
• Comprehensive Protections: Built-in safeguards against overcurrent, overvoltage, short-circuit, and overtemperature conditions.
• Global Compliance: Meets UL, CE, EN, and IEC safety standards for worldwide deployment.

Industrial Applications

The S8VK-S48024 is engineered for reliability in critical industrial environments, including:

• Factory Automation: Powers PLCs, HMIs, and control panels in assembly lines and robotic systems.
• Motion Control: Ideal for servo drives, stepper motors, and CNC machinery requiring stable voltage.
• Material Handling: Used in conveyor systems, packaging machines, and palletizers.
• Test & Measurement: Provides clean power for precision instrumentation and lab equipment.
• Infrastructure: Supports HVAC controls, lighting systems, and backup power solutions.

Detailed Technical Specifications

Parameter	Specification
Input Voltage Range	100-240V AC (50/60Hz, auto-ranging)
Output Voltage	24V DC ±2% (adjustable via potentiometer)
Maximum Output Current	20A (continuous)
Power Rating	480W (peak capacity: 120% for 5 sec)
Efficiency	≥89% (at full load, 230V AC input)
Ripple & Noise	≤120mV (peak-to-peak, 20MHz bandwidth)
Line Regulation	±1% (for input voltage fluctuations)
Load Regulation	±3% (10-100% load variation)
Operating Temperature	-10°C to +50°C (derating linearly above 40°C)
Storage Temperature	-20°C to +70°C (non-operational)
Humidity Tolerance	20-85% RH (non-condensing)
Cooling Method	Forced air cooling (40mm fan, 6.5CFM airflow)
Protection Features	Overcurrent (105-150% of rated current), overvoltage (28-35V cutoff), short-circuit (auto-recovery), overtemperature (thermal shutdown)
Safety Certifications	UL 60950-1, EN 60950-1, CE Mark (EMC Directive 2014/30/EU), IEC 60950-1
Warranty	1-year limited manufacturer warranty

Why Choose the Omron S8VK-S48024?

The S8VK-S48024 combines Omron’s legacy of precision engineering with industrial-grade reliability. Its wide input range, high efficiency, and compact footprint make it a versatile solution for OEMs and system integrators. The inclusion of multiple protections ensures longevity in harsh environments, while compliance with international standards guarantees seamless integration into global projects. For applications demanding uninterrupted 24V DC power, this unit delivers consistent performance backed by Omron’s 1-year warranty.
