750W Servo Motor R88M-1M75030T-BS2 with High Torque and Precision Control

Product Overview

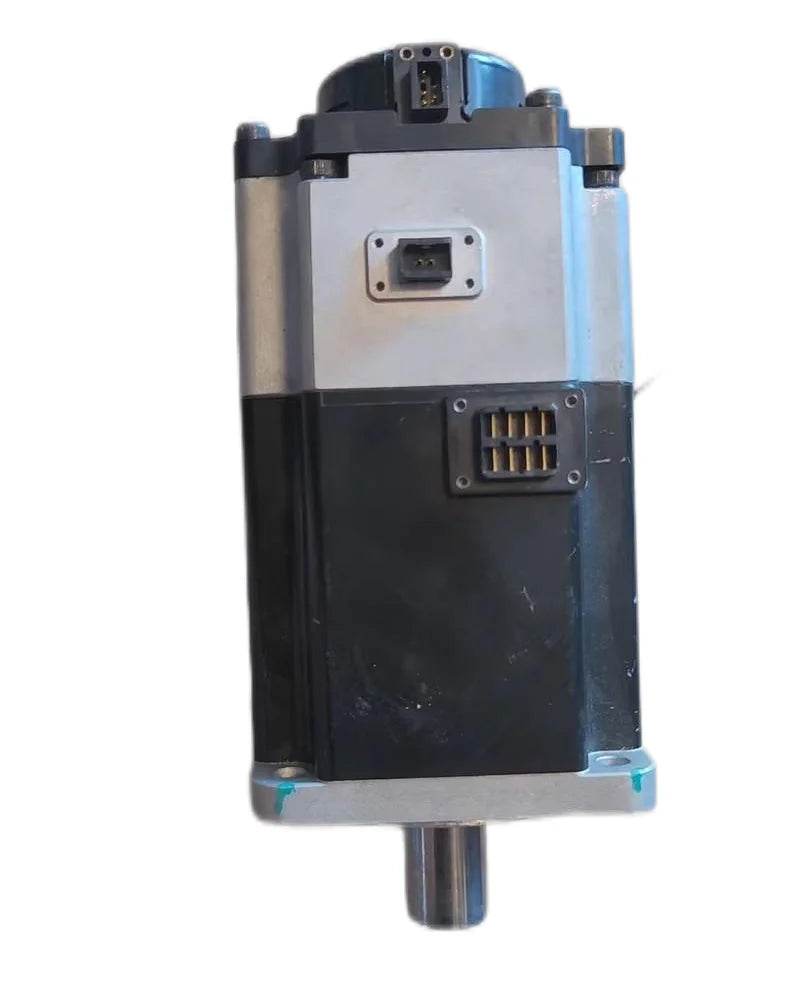

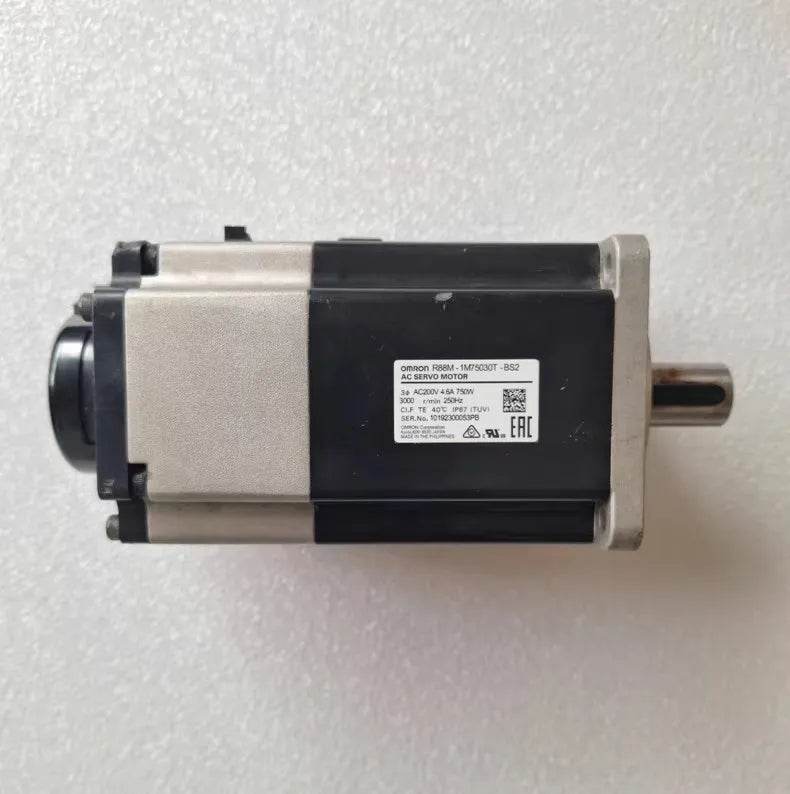

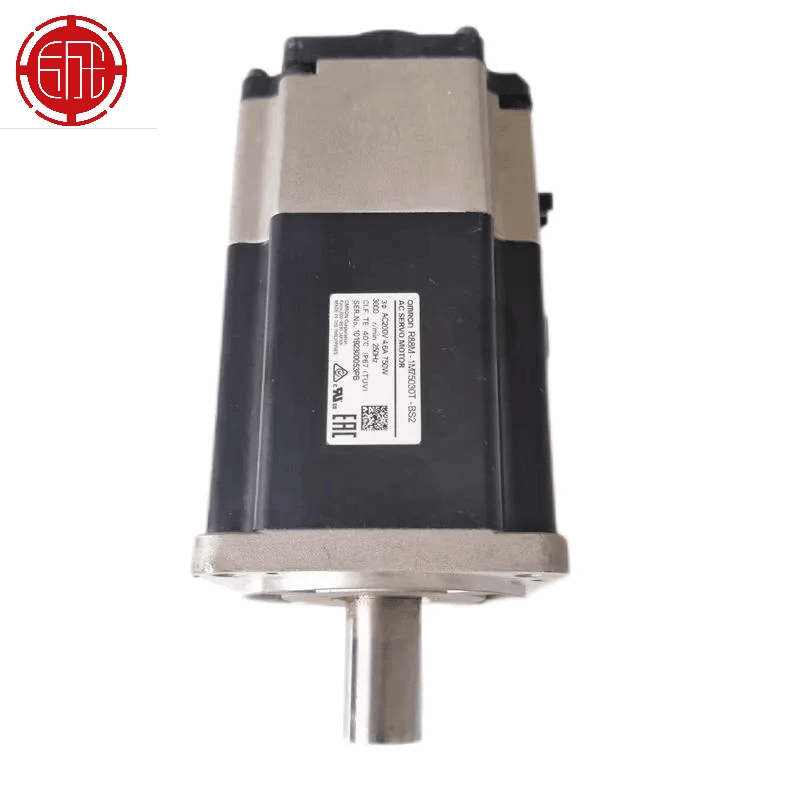

The Omron R88M-1M75030T-BS2 is a high-performance servo motor engineered for precision motion control in demanding industrial applications. Designed with advanced feedback technology and robust construction, this servo motor delivers exceptional torque, speed, and efficiency while maintaining reliability in harsh environments. Its compact yet powerful design makes it ideal for integration into automated systems requiring high dynamic response and positioning accuracy.

Key Features

• High Power Density: 750W rated power in a compact 80mm frame size, optimizing space utilization in machinery.
• Exceptional Torque Performance: Delivers 2.39 Nm rated torque with peak torque capability of 7.16 Nm for demanding acceleration requirements.
• Wide Speed Range: Operates at 3000 rpm rated speed with maximum speed of 5000 rpm for versatile application needs.
• Ultra-High Resolution Feedback: 20-bit absolute encoder (1,048,576 pulses/revolution) ensures precise positioning and smooth motion control.
• Robust Construction: IP65 protection rating provides resistance against dust and water jets, suitable for challenging industrial environments.
• Energy Efficient: Optimized electromagnetic design reduces power consumption while maintaining high torque output.
• Standard Compliance: Designed to meet international safety and performance standards for industrial automation equipment.
• 1-Year Warranty: Backed by Omron's standard warranty coverage for manufacturing defects.

Applications

The R88M-1M75030T-BS2 servo motor is ideally suited for:

• Industrial Robotics: Provides precise motion control for articulated arms, SCARA robots, and delta robots.
• Machine Tools: High-performance solution for CNC milling machines, lathes, and grinding equipment.
• Packaging Machinery: Delivers the speed and accuracy required for filling, capping, and labeling systems.
• Semiconductor Manufacturing: Ultra-precise positioning for wafer handling and chip placement applications.
• Automated Assembly: Reliable performance for pick-and-place systems and precision assembly operations.
• Material Handling: Powerful solution for conveyor systems, sorting machines, and automated storage systems.

Technical Specifications

Parameter	Specification
Model Number	R88M-1M75030T-BS2
Motor Type	AC Servo Motor
Rated Power Output	750 Watts
Rated Torque	2.39 Newton-meters
Maximum Torque	7.16 Newton-meters
Rated Speed	3000 revolutions per minute
Maximum Speed	5000 revolutions per minute
Encoder Type	20-bit Absolute Encoder
Encoder Resolution	1,048,576 pulses per revolution
Rated Voltage	200-230 VAC
Rated Current	4.5 Amperes
Maximum Current	13.4 Amperes
Frame Size	80mm square
Mounting Dimensions	80 mm (W) × 130 mm (H) × 154 mm (D)
Weight	3.5 kilograms
Protection Class	IP65 (Dust tight and protected against water jets)
Insulation Class	Class F
Warranty Period	1 Year

System Integration

The R88M-1M75030T-BS2 is designed for seamless integration with Omron's complete motion control system, including compatible servo drives and controllers. When paired with Omron's R88D-KN series servo drives, this motor delivers optimal performance for demanding motion control applications. The high-resolution feedback system ensures precise positioning while the robust mechanical design guarantees long-term reliability in continuous operation environments.
