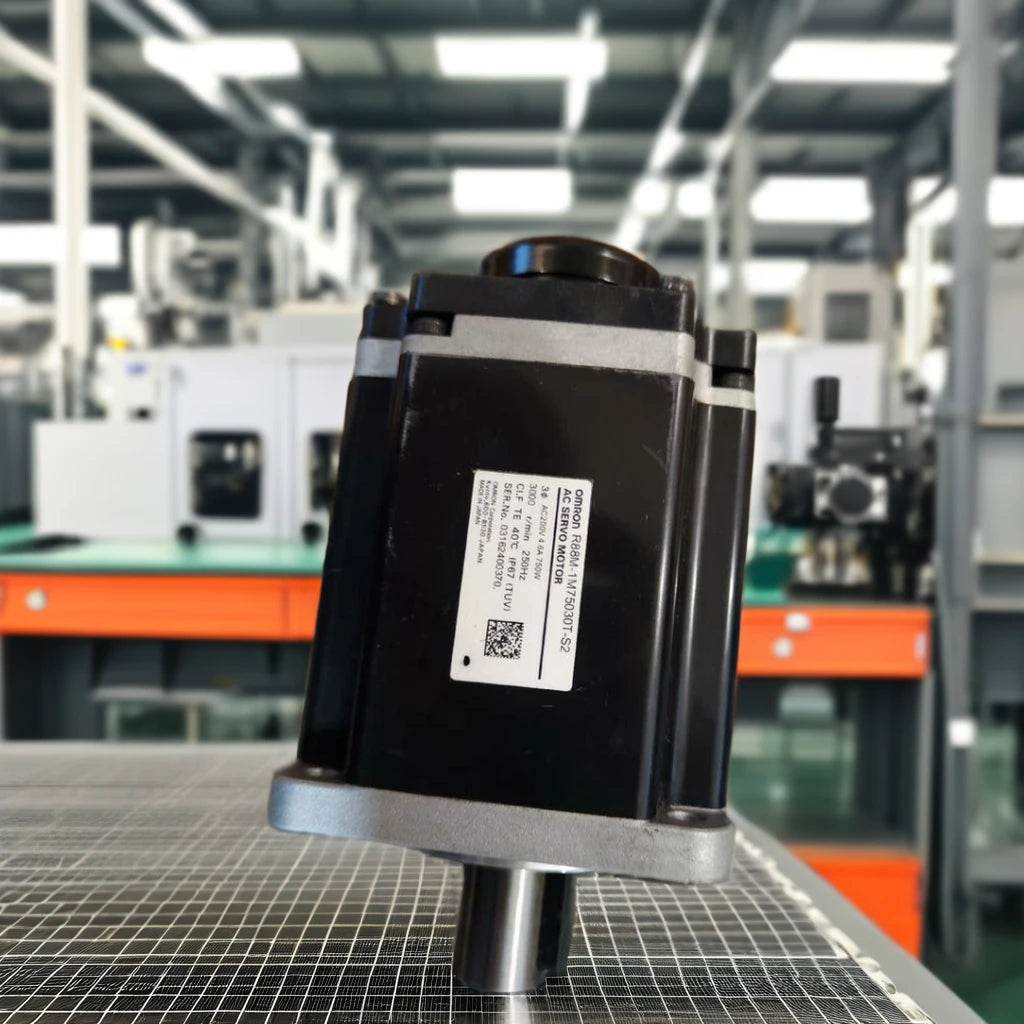

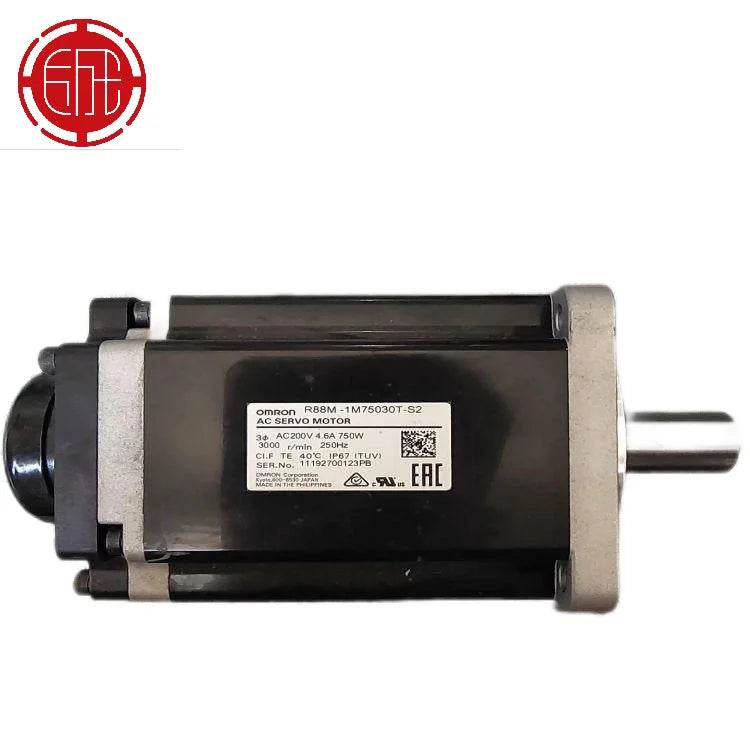

OMRON R88M-1M75030T-S2 Servo Motor - High-Performance Industrial Automation Solution

Premium Servo Motor for Precision Motion Control

The OMRON R88M-1M75030T-S2 represents the pinnacle of servo motor technology, engineered for demanding industrial automation applications requiring exceptional precision and reliability. As part of OMRON's renowned R88M series, this 750W servo motor delivers superior performance with its permanent magnet synchronous design, offering precise positioning and smooth motion control for advanced automation systems. Built to OMRON's exacting quality standards, this motor features robust construction with IP65 protection, making it suitable for operation in challenging industrial environments.

Advanced Technical Features

• High-Efficiency Design: Permanent magnet synchronous motor technology ensures optimal energy efficiency and consistent performance
• Powerful Performance: 750W rated output with 2.39 Nm rated torque and impressive 7.16 Nm maximum torque capability
• High-Speed Operation: Rated speed of 3000 rpm with maximum speed reaching 5000 rpm for dynamic applications
• Precision Feedback: 17-bit high-resolution incremental encoder provides accurate position feedback for precise motion control
• Industrial-Grade Protection: IP65 rating ensures complete protection against dust ingress and water jets for reliable operation in harsh conditions
• Compact Form Factor: Space-saving 100 mm × 100 mm frame size with 156 mm length (shaft excluded) for easy integration
• Robust Mechanical Design: Features a durable 19 mm shaft diameter and weighs only 3.5 kg for its power class
• Standard Warranty: Backed by OMRON's 1-year manufacturer warranty for peace of mind

Industrial Applications

• Advanced Robotics: Ideal for articulated robot arms and automated guided vehicles requiring precise motion
• CNC Machinery: Perfect for high-speed milling, grinding, and cutting applications demanding accuracy
• Packaging Automation: Excellent for high-speed packaging lines, labeling machines, and filling systems
• Semiconductor Manufacturing: Suitable for wafer handling, chip placement, and other precision semiconductor processes
• Automated Assembly: Optimal for precision assembly lines, pick-and-place systems, and component insertion
• Material Handling: Effective for conveyor systems, sorting machines, and automated storage/retrieval systems

Complete Technical Specifications

Parameter	Specification
Model Number	R88M-1M75030T-S2
Motor Technology	Permanent magnet synchronous motor (PMSM)
Rated Output Power	750 Watts
Rated Torque	2.39 Newton-meters (Nm)
Maximum Torque	7.16 Nm (approximately 300% of rated torque)
Rated Rotational Speed	3000 revolutions per minute (rpm)
Maximum Rotational Speed	5000 rpm
Operating Voltage	200 VAC (three-phase)
Feedback System	Incremental encoder with 131,072 pulses/revolution (17-bit resolution)
Ingress Protection	IP65 (dust-tight and protected against water jets from any direction)
Motor Frame Size	100 mm × 100 mm square flange
Motor Length	156 mm (excluding shaft extension)
Shaft Specifications	19 mm diameter with keyway
Weight	3.5 kilograms
Warranty Period	1 year manufacturer warranty

System Integration

The R88M-1M75030T-S2 servo motor is designed for seamless integration with OMRON's comprehensive motion control ecosystem. When paired with OMRON servo drives and controllers, this motor delivers optimal performance for sophisticated automation systems. The motor's standard mounting dimensions and industry-standard interfaces ensure compatibility with a wide range of mechanical systems and automation components.

Quality Assurance

Every R88M-1M75030T-S2 servo motor undergoes rigorous quality control testing at OMRON's manufacturing facilities to ensure reliable operation and long service life. The motor's design incorporates premium materials and advanced manufacturing techniques to withstand the demands of continuous industrial operation.
