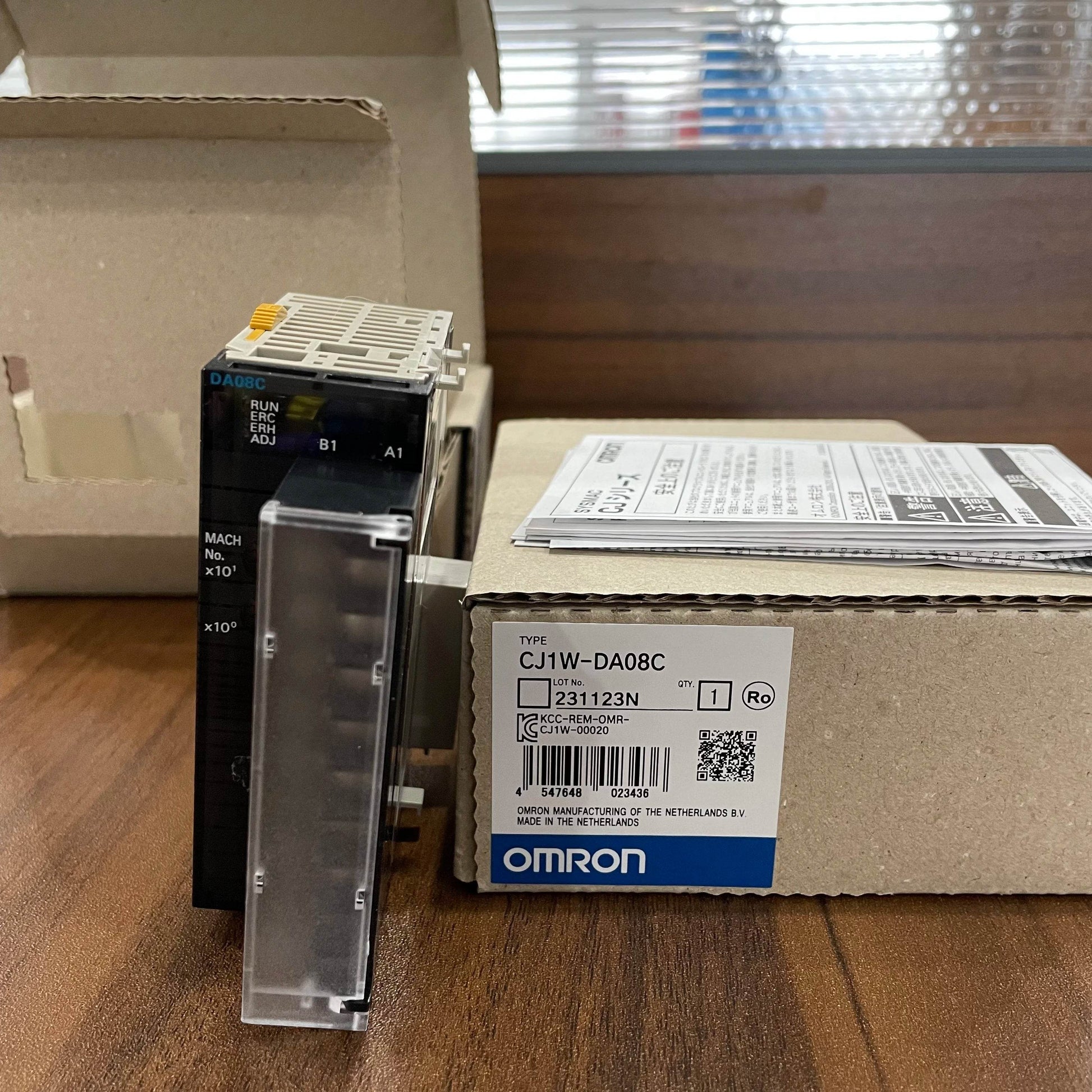

CJ1W-DA08C 8-Channel Analog Output Module for PLC Systems
CJ1W-DA08C 8-Channel Analog Output Module for PLC Systems
SKU:CJ1W-DA08C
Package size: 20X20X15CMRegular price
$170.00 USD
Regular price
Sale price
$170.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Overview
The CJ1W-DA08C is an analog output unit designed to convert digital signals from a programmable logic controller (PLC) into analog voltage or current outputs. It belongs to the CJ series of PLC components, providing high-precision analog signal conversion for industrial automation applications.
Key Features
- Output Channels: 8 channels
- Output Signal Range: Voltage: 0 to 10 V, -10 to +10 V, 1 to 5 V; Current: 0 to 20 mA, 4 to 20 mA
- Resolution: 1/4000 (16-bit)
- Accuracy: ±0.3% of full scale (voltage), ±0.5% of full scale (current)
- Conversion Speed: 1 ms per channel
- Isolation: Photocoupler isolation between internal circuits and output terminals
- Dimensions: 31 mm (W) × 90 mm (H) × 65 mm (D)
- Weight: Approx. 200 g
- Power Consumption: 5 V DC, 0.2 A (via PLC backplane)
Applications
The CJ1W-DA08C is suitable for applications requiring precise analog control, including:
- Process control systems
- Motor speed regulation
- Temperature control in industrial furnaces
- Pressure and flow regulation in hydraulic systems
- Test and measurement equipment
Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 8 |
| Output Type | Voltage or Current |
| Voltage Output Range | 0 to 10 V, -10 to +10 V, 1 to 5 V |
| Current Output Range | 0 to 20 mA, 4 to 20 mA |
| Resolution | 16-bit (1/4000) |
| Accuracy (Voltage) | ±0.3% of full scale |
| Accuracy (Current) | ±0.5% of full scale |
| Conversion Speed | 1 ms per channel |
| Isolation | Photocoupler isolation |
| Dimensions (W × H × D) | 31 mm × 90 mm × 65 mm |
| Weight | Approx. 200 g |
| Power Supply | 5 V DC, 0.2 A (via backplane) |
