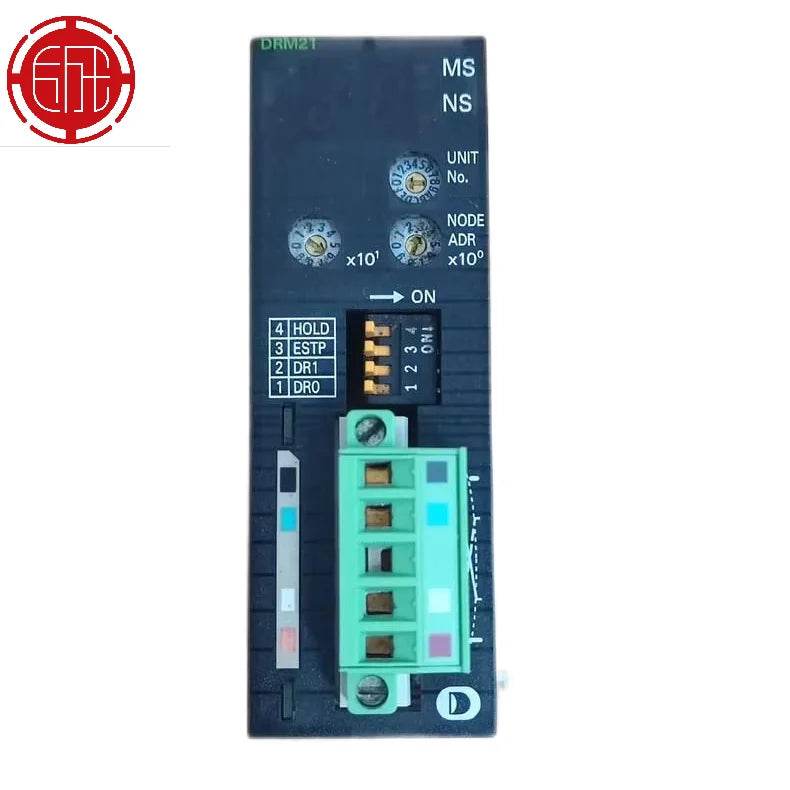

CJ1W-DRM21 DeviceNet Slave Unit with 64 I/O Points for PLC Connectivity
CJ1W-DRM21 DeviceNet Slave Unit with 64 I/O Points for PLC Connectivity
SKU:CJ1W-DRM21
Package size: 17X15X10CMRegular price
$170.00 USD
Regular price
Sale price
$170.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Overview
The CJ1W-DRM21 is a DeviceNet slave unit designed for integration into programmable logic controller (PLC) systems. It belongs to the CJ series, providing seamless connectivity for industrial automation networks. This unit facilitates communication between the PLC and DeviceNet-compatible devices, enabling efficient data exchange and control.
Key Features
- Supported I/O: 64 inputs and 64 outputs (max 512 points per network)
- Dimensions: 31 mm (W) × 90 mm (H) × 65 mm (D)
- Weight: 200 g
- Power Consumption: 100 mA max at 5 V DC
- Communication Speed: 125 kbps, 250 kbps, or 500 kbps
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 65°C
- Node Address Setting: Rotary switch (0–63)
Applications
- Factory automation systems for real-time device control
- Material handling systems with distributed I/O requirements
- Packaging machinery requiring synchronized device communication
- Assembly lines with multiple sensor and actuator networks
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CJ1W-DRM21 |
| Supported I/O Points | 64 inputs / 64 outputs (max 512 per network) |
| Dimensions (W × H × D) | 31 mm × 90 mm × 65 mm |
| Weight | 200 g |
| Power Consumption | 100 mA max at 5 V DC |
| Communication Speed | 125 kbps, 250 kbps, 500 kbps |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 65°C |
| Node Address Setting | Rotary switch (0–63) |
