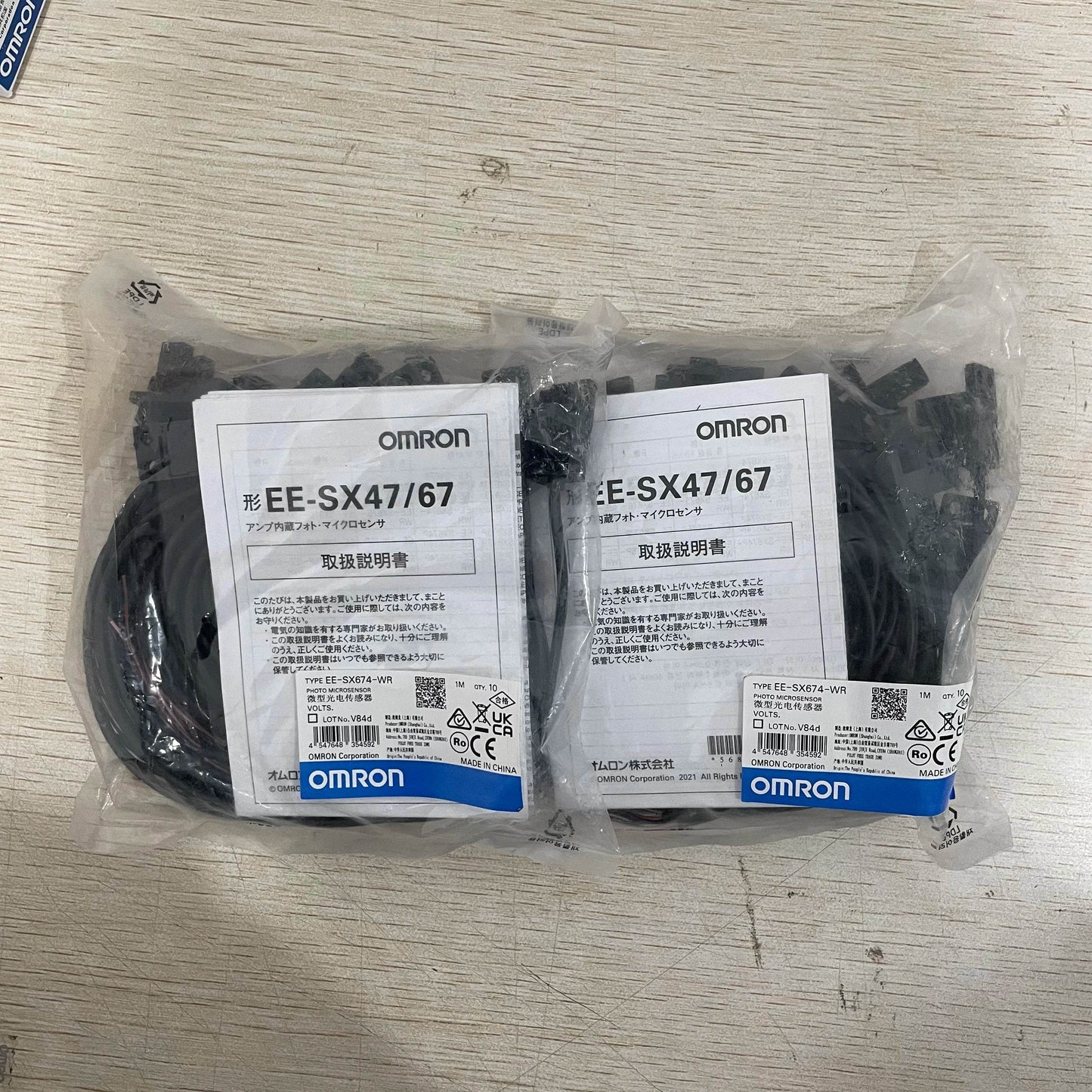

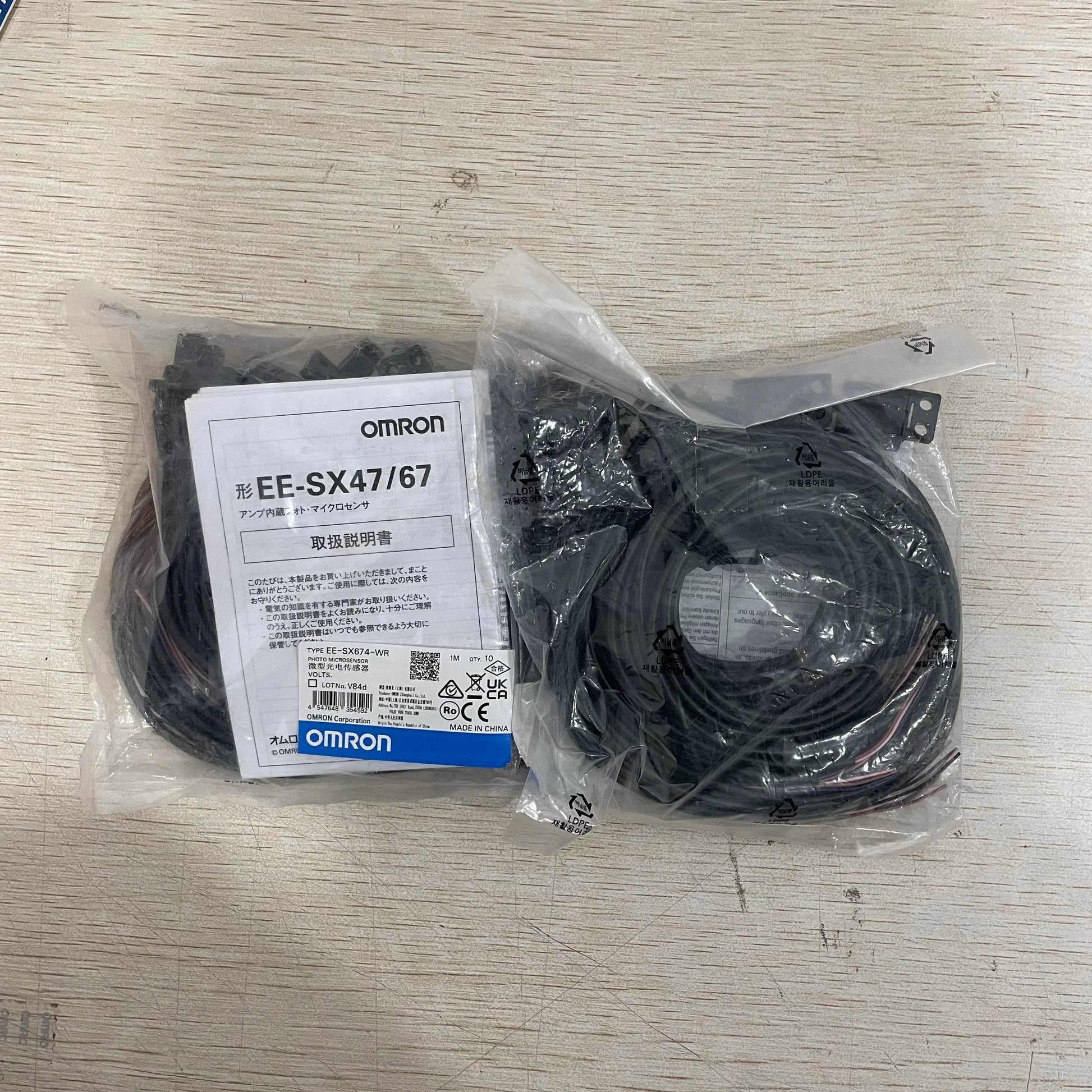

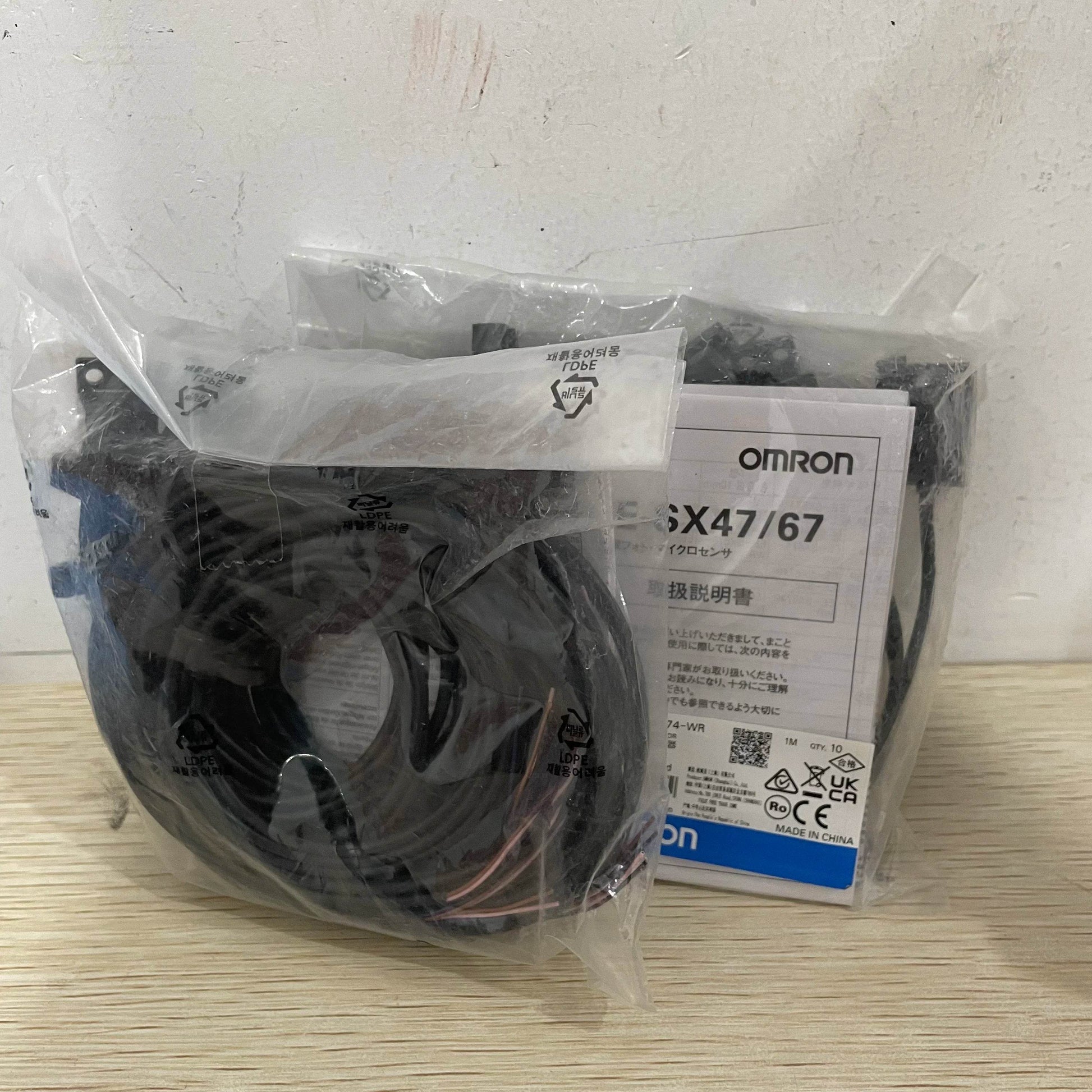

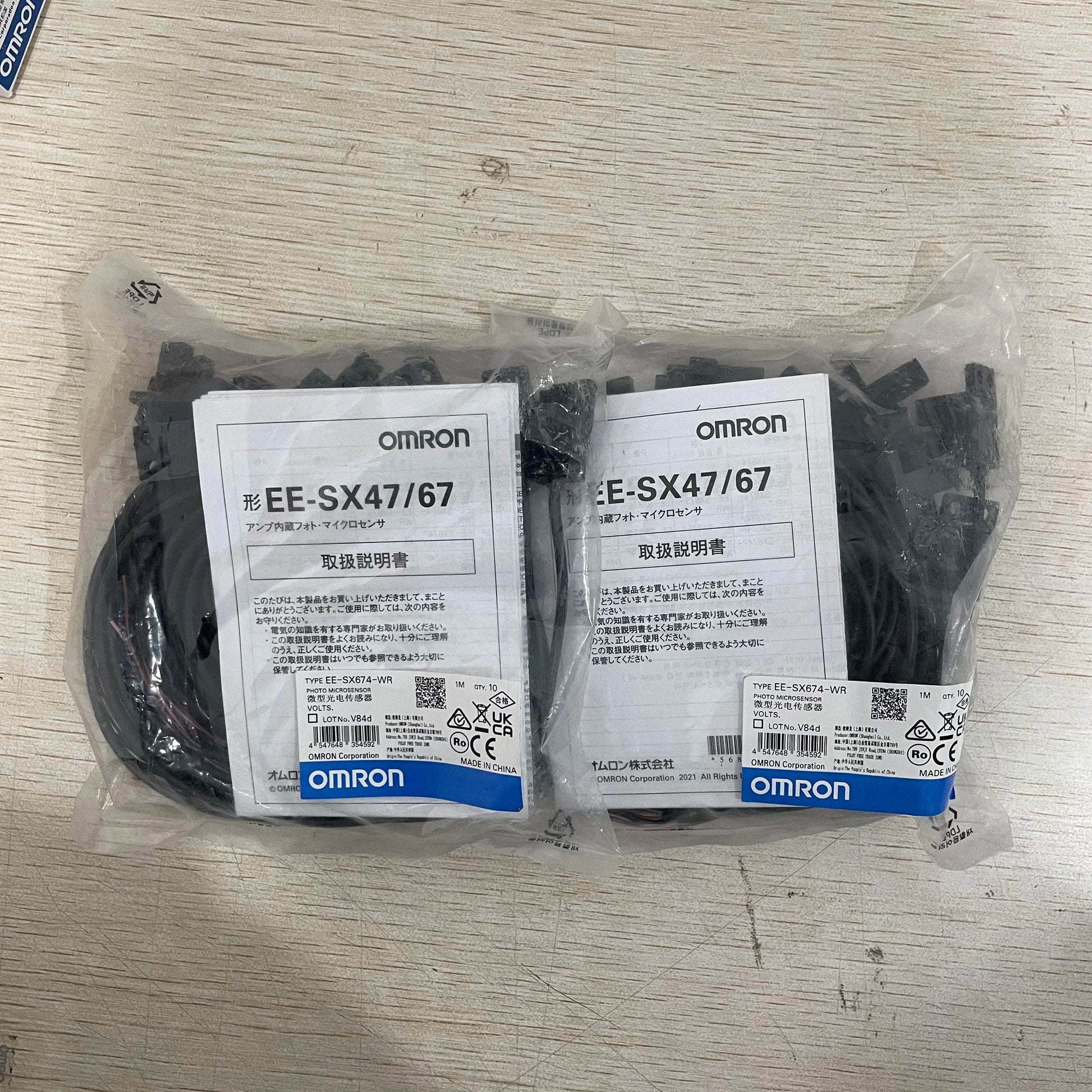

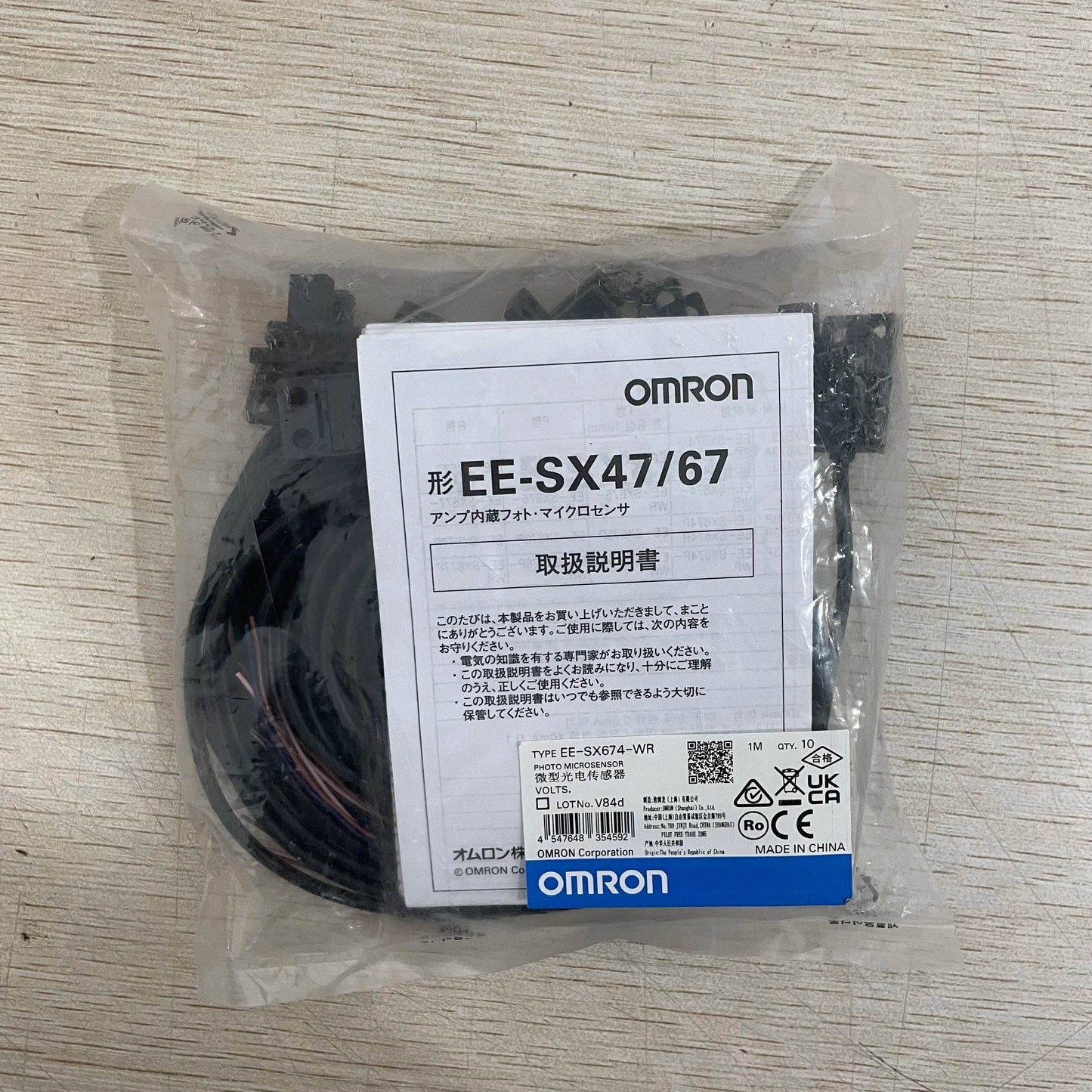

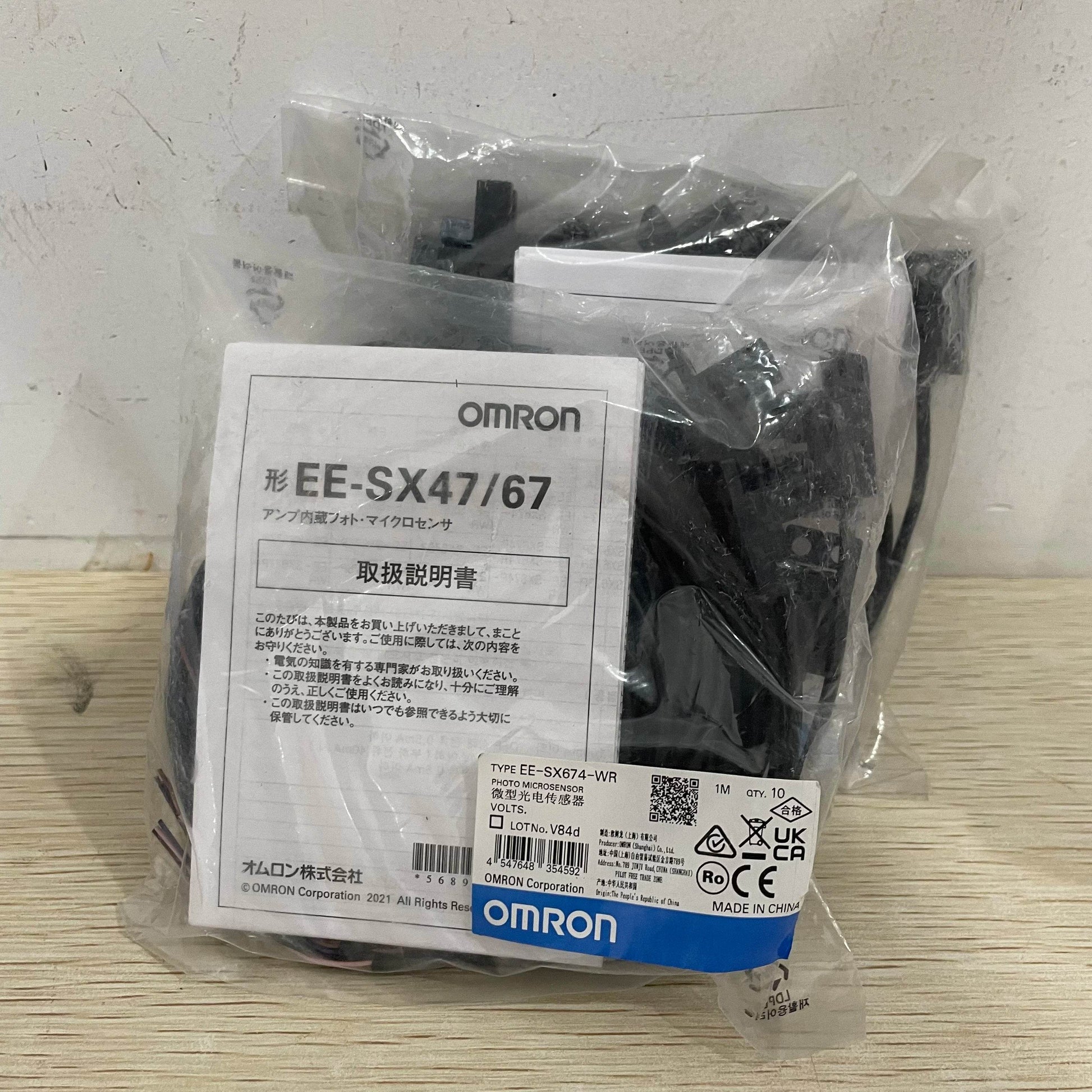

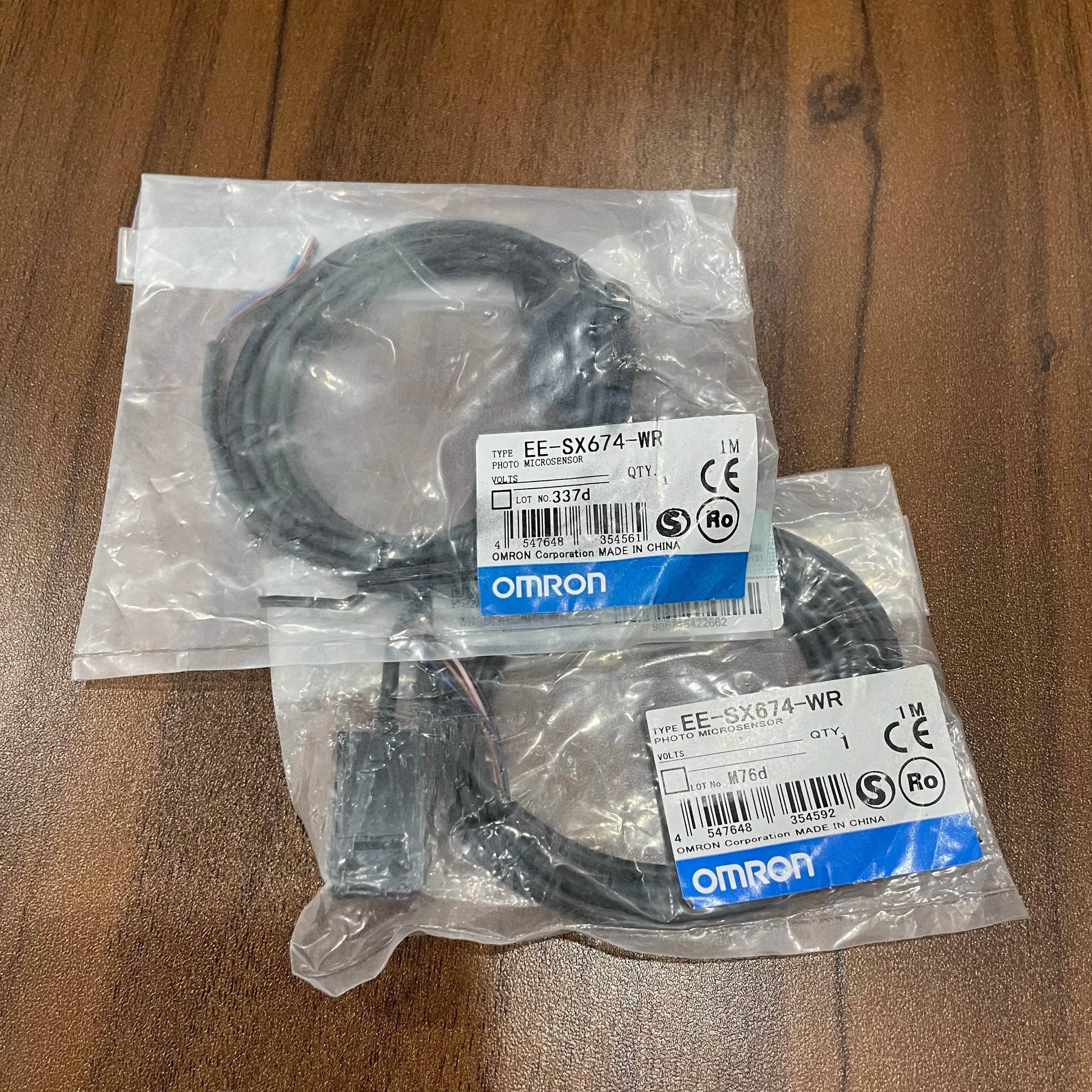

Compact Slot-Type Photomicrosensor EE-SX674-WR with 5mm Sensing Gap and Wire Lead Connector
Compact Slot-Type Photomicrosensor EE-SX674-WR with 5mm Sensing Gap and Wire Lead Connector
SKU:EE-SX674-WR
Package size: 15X14X8CMRegular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Unit price
/
per
Exclusive pricing & tailored solutions await!
Product Overview
The EE-SX674-WR is a photoelectric sensor designed for precise object detection. It belongs to a series of through-beam sensors, which consist of a separate emitter and receiver unit. When an object interrupts the light beam between the emitter and receiver, the sensor triggers a signal. This model is optimized for high-speed and reliable detection in industrial environments.
Key Features
- Supported I/O: NPN output configuration
- Supply Voltage: 5–24 V DC (±10%)
- Current Consumption: 15 mA max.
- Sensing Distance: 5 mm (gap between emitter and receiver)
- Response Time: 0.5 ms max.
- Light Source: Infrared LED (870 nm wavelength)
- Dimensions (Emitter/Receiver): 10 mm (W) × 30 mm (H) × 10 mm (D)
- Weight: Approx. 4 g per unit (emitter or receiver)
- Protection Rating: IP50
- Operating Temperature: -25°C to 55°C
- Connection Method: Pre-wired (2 m cable length)
Applications
- Object detection in automated assembly lines
- Position verification in packaging machinery
- Presence sensing in conveyor systems
- Small-part counting in manufacturing processes
- Safety interlocks in equipment with moving parts
Technical Specifications
| Parameter | Value |
|---|---|
| Model | EE-SX674-WR |
| Type | Through-beam photoelectric sensor |
| Output Configuration | NPN |
| Supply Voltage | 5–24 V DC (±10%) |
| Current Consumption | 15 mA max. |
| Sensing Distance | 5 mm |
| Response Time | 0.5 ms max. |
| Light Source | Infrared LED (870 nm) |
| Dimensions (W × H × D) | 10 mm × 30 mm × 10 mm (per unit) |
| Weight | 4 g (per unit) |
| Protection Rating | IP50 |
| Operating Temperature | -25°C to 55°C |
| Cable Length | 2 m |
