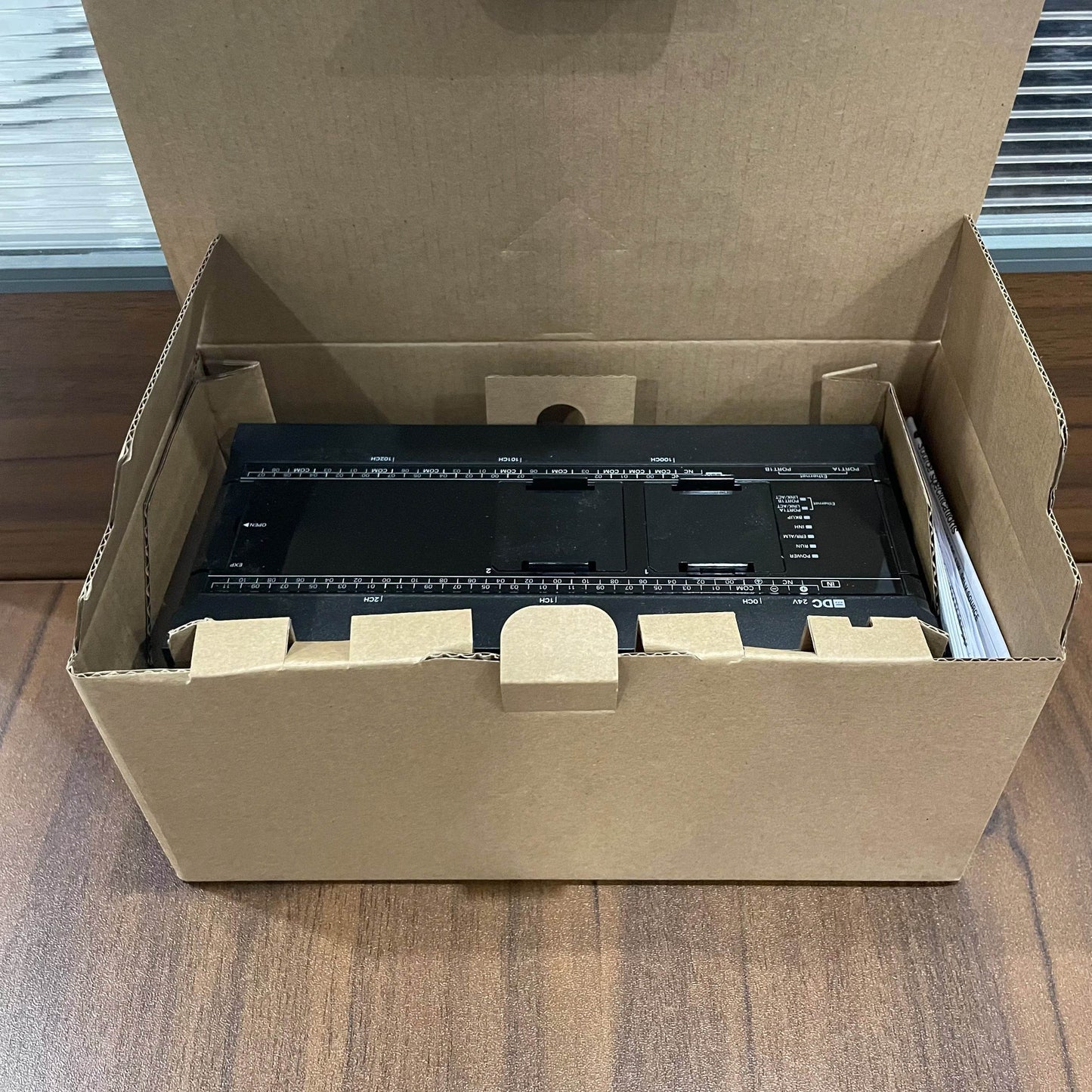

Compact PLC CP2E-N60DR-D with 60 I/O, Ethernet, and RS-232 for Automation Control
Compact PLC CP2E-N60DR-D with 60 I/O, Ethernet, and RS-232 for Automation Control
SKU:CP2E-N60DR-D
Package size: 30X15X15CMRegular price
$178.00 USD
Regular price
Sale price
$178.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Overview
The CP2E-N60DR-D is a compact programmable logic controller (PLC) from the CP2E series, designed for automation and control tasks. It provides reliable performance for small to medium-scale applications with a focus on ease of use and efficient operation.
Key Features
- Input/Output (I/O) Capacity: 36 digital inputs and 24 digital outputs (60 I/O points total).
- Dimensions: 130 mm (W) × 90 mm (H) × 86 mm (D).
- Power Supply: 24 V DC.
- Power Consumption: 20 W (max).
- Communication Ports: Built-in USB and RS-232C ports for programming and communication.
- Operating Temperature: 0°C to 55°C.
- Storage Temperature: -25°C to 75°C.
- Weight: Approximately 600 g.
Applications
- Industrial automation for small machinery.
- Conveyor belt control systems.
- Packaging and sorting equipment.
- Lighting and HVAC control.
- Simple process control applications.
Technical Specifications
| Parameter | Value |
|---|---|
| I/O Points | 36 inputs / 24 outputs (60 total) |
| Dimensions (W × H × D) | 130 mm × 90 mm × 86 mm |
| Power Supply | 24 V DC |
| Power Consumption | 20 W (max) |
| Communication Ports | USB, RS-232C |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 75°C |
| Weight | Approx. 600 g |
