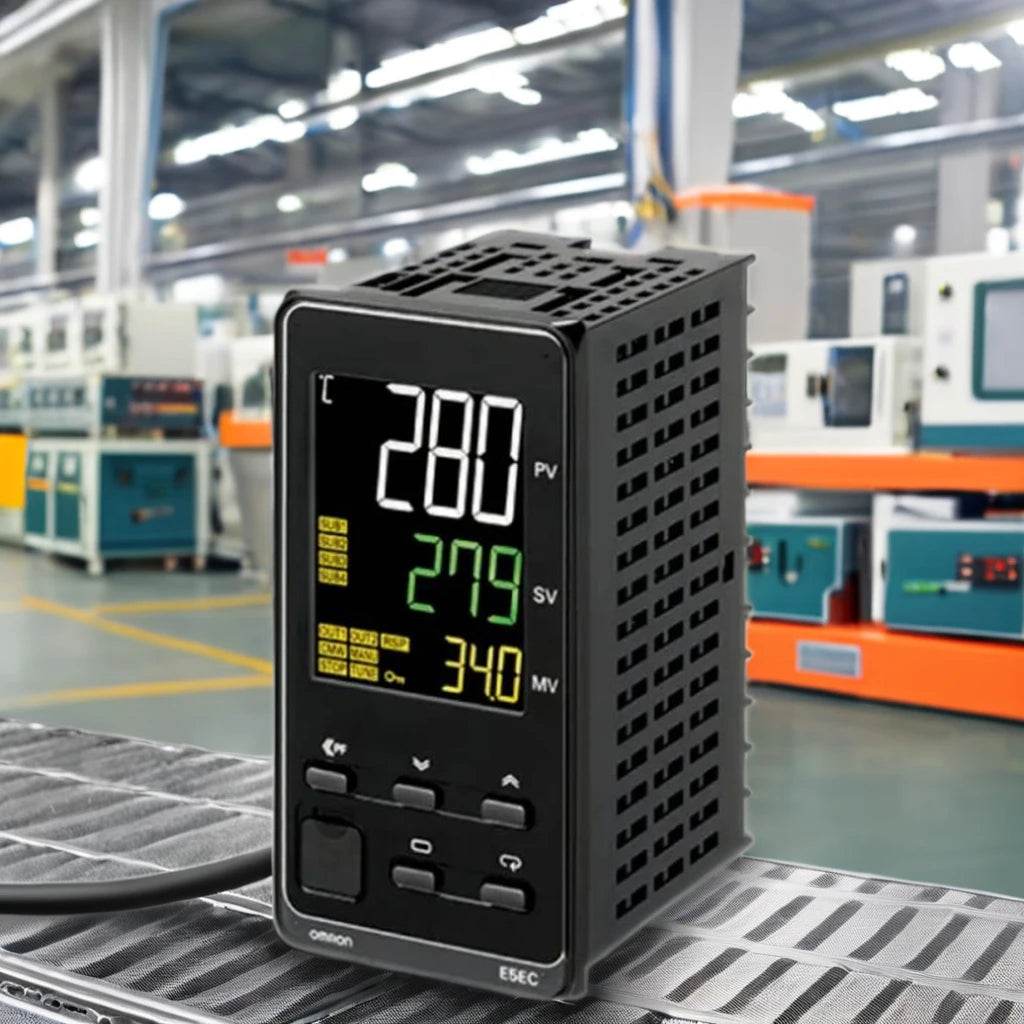

E5EC-PR2ASM-804 Digital Temperature Controller with SSR Output and 1/16 DIN Size
E5EC-PR2ASM-804 Digital Temperature Controller with SSR Output and 1/16 DIN Size
SKU:E5EC-PR2ASM-804
Package size: 11.5X9X6CMRegular price
$58.00 USD
Regular price
Sale price
$58.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Overview
The E5EC-PR2ASM-804 is a digital temperature controller designed for precise temperature regulation in industrial and commercial applications. It belongs to the E5EC series, which is known for high accuracy and advanced control capabilities. This model supports multiple input types and offers flexible output configurations for various heating and cooling systems.
Key Features
- Input Types: Thermocouple (K, J, R, S, B, E, T, N, W), RTD (Pt100, JPt100), and analog voltage/current (0–10 V, 0–20 mA, 4–20 mA).
- Outputs: Relay (2 points), voltage pulse (1 point), and current (1 point).
- Control Method: PID control with auto-tuning.
- Display: 4-digit, 7-segment LED with a red backlight.
- Dimensions: 48 mm × 48 mm × 78 mm (W × H × D).
- Power Supply: 100–240 V AC, 50/60 Hz.
- Power Consumption: 6 VA max.
- Operating Temperature: 0 to 55°C (32 to 131°F).
- Weight: Approximately 200 g.
Applications
- Industrial furnaces and ovens.
- Plastic molding machines.
- Food processing and packaging equipment.
- Laboratory and testing environments.
- HVAC systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Types | Thermocouple (K, J, R, S, B, E, T, N, W), RTD (Pt100, JPt100), analog voltage/current (0–10 V, 0–20 mA, 4–20 mA) |
| Outputs | Relay (2 points), voltage pulse (1 point), current (1 point) |
| Control Method | PID with auto-tuning |
| Display | 4-digit, 7-segment LED with red backlight |
| Dimensions | 48 mm × 48 mm × 78 mm (W × H × D) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | 6 VA max |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Weight | Approx. 200 g |
