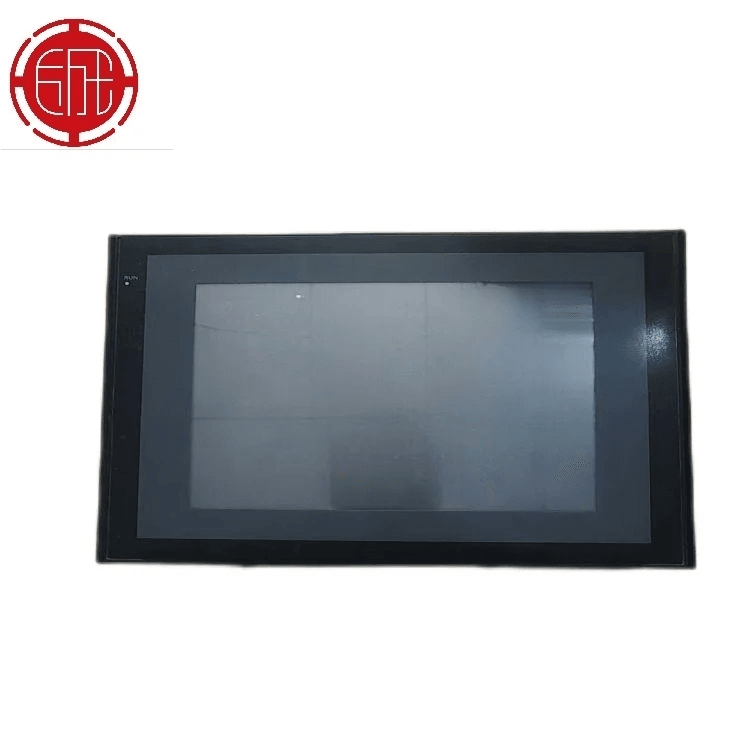

NS10-TV01B-V2 10-inch HMI Touch Panel with V2 Firmware for Industrial Automation

Name: NS10-TV01B-V2 10-inch HMI Touch Panel with V2 Firmware for Industrial Automation
Brand: Xiamen Chengruiyuan Technology Co., Ltd.
SKU: NS10-TV01B-V2
Price: 900.00 USD
Availability: InStock

SKU:NS10-TV01B-V2

Package size: 40X37X15CM

$900.00 USD

Sale Sold out

Exclusive pricing & tailored solutions await!

Omron NS10-TV01B-V2 10.4-inch Industrial HMI Panel - Comprehensive Overview

The Omron NS10-TV01B-V2 represents the pinnacle of industrial human-machine interface technology, delivering exceptional performance for mission-critical automation applications. As part of Omron's premium NS Series, this 10.4-inch HMI panel combines robust construction with advanced visualization capabilities, engineered specifically for demanding factory environments. The unit provides operators with intuitive touchscreen control while offering system integrators flexible connectivity options for seamless integration with industrial control systems.

Advanced Technical Features and Operational Benefits

High-Resolution Industrial Display: 10.4-inch TFT LCD with 640 x 480 VGA resolution and 256-color palette ensures crisp visualization of complex process data, alarm statuses, and production metrics
Industrial-Grade Touch Interface: Durable 4-wire resistive touchscreen provides reliable operation with excellent response time (10ms typical), supporting operation with gloved hands in harsh conditions
Rugged Environmental Protection: Front panel meets IP65/NEMA 4X standards for complete protection against dust ingress and low-pressure water jets (6.3mm nozzle) from any direction
Comprehensive Communication Options: Integrated RS-232C (D-Sub 9-pin), RS-422/485 (terminal block), and 10BASE-T Ethernet (RJ45) interfaces enable flexible connectivity with PLCs, drives, and control networks
Wide Operating Temperature Range: Certified for continuous operation from 0°C to 50°C (32°F to 122°F) with 10-90% relative humidity (non-condensing), ensuring reliability in most industrial environments
Mechanical Durability: Designed to withstand industrial vibration (2G, 10-25Hz) and shock (30G, 11ms duration) per IEC 60068-2-6/27 standards
Space-Efficient Design: Compact 290mm x 220mm x 56mm (11.42" x 8.66" x 2.20") footprint with 1.5kg weight simplifies panel mounting and integration
Reliable Power Supply: 24VDC (±10%) input with 55W maximum power consumption ensures stable operation with standard industrial power systems
Manufacturer Warranty: Backed by Omron's standard 1-year warranty against manufacturing defects (proof of purchase required)

Industrial Application Scenarios

The NS10-TV01B-V2 HMI panel is engineered for diverse industrial automation applications across multiple sectors:

Discrete Manufacturing: Ideal for machine control interfaces in automotive assembly lines, robotic welding cells, CNC machine tools, and precision stamping presses
Process Industries: Perfect for batch process visualization in pharmaceutical production, chemical processing plants, food & beverage manufacturing, and water treatment facilities
Packaging Automation: Provides operator interfaces for form-fill-seal machines, labeling systems, cartoning equipment, and palletizing robots
Material Handling: Serves as control interface for automated storage/retrieval systems (AS/RS), conveyor networks, and sortation equipment
Building Automation: Suitable for HVAC control panels, elevator management systems, and energy monitoring stations

Complete Technical Specifications

Category	Detailed Specifications
Product Identification	Omron NS Series HMI Panel, Model NS10-TV01B-V2 (Order Code: NS10-TV01B-V2)
Display Characteristics	10.4" TFT LCD with LED backlight, 640×480 VGA resolution, 256 colors, 300cd/m² brightness, 400:1 contrast ratio
Touchscreen Specifications	Analog resistive (4-wire), 10ms response time, >1 million touch operations life, 3H surface hardness
Physical Dimensions	290(W) × 220(H) × 56(D) mm [11.42" × 8.66" × 2.20"], Panel cutout: 276 × 206mm, Weight: 1.5kg (3.31lbs)
Electrical Specifications	24VDC ±10%, 55W max consumption, 2.3A inrush current (100ms), Reverse polarity protection
Communication Interfaces	1× RS-232C (D-Sub 9-pin male), 1× RS-422/485 (terminal block), 1× 10BASE-T Ethernet (RJ45)
Environmental Ratings	IP65/NEMA 4X front panel, Operating temp: 0°C to 50°C, Storage temp: -20°C to 60°C, 10-90% RH (non-condensing)
Mechanical Durability	Vibration: 2G (10-25Hz, X/Y/Z), Shock: 30G (11ms, X/Y/Z), MTBF: 50,000 hours (at 25°C)
Certifications	CE, UL508 (Industrial Control Equipment), cULus (UL60950-1), FCC Part 15 Subpart B Class A
Warranty Information	1-year limited warranty from date of purchase (original receipt required)

System Integration and Compatibility

The NS10-TV01B-V2 offers exceptional integration capabilities with industrial control systems:

Native Omron Integration: Direct compatibility with NJ/NX/NY-series PLCs, CJ-series processors, and Sysmac automation platform via built-in protocols
Network Connectivity: Supports EtherNet/IP, Modbus RTU/ASCII, and host link protocols for connection to third-party devices
Software Support: Programmable with Omron's CX-Designer software (sold separately) for customized screen development and logic implementation
Expansion Capabilities: Supports memory cards (CF Type I) for data logging and recipe storage applications
