16-point Digital Output Module DRT2-OD16-1 for High-Speed PLC Systems
16-point Digital Output Module DRT2-OD16-1 for High-Speed PLC Systems
Inventarna številka:DRT2-OD16-1

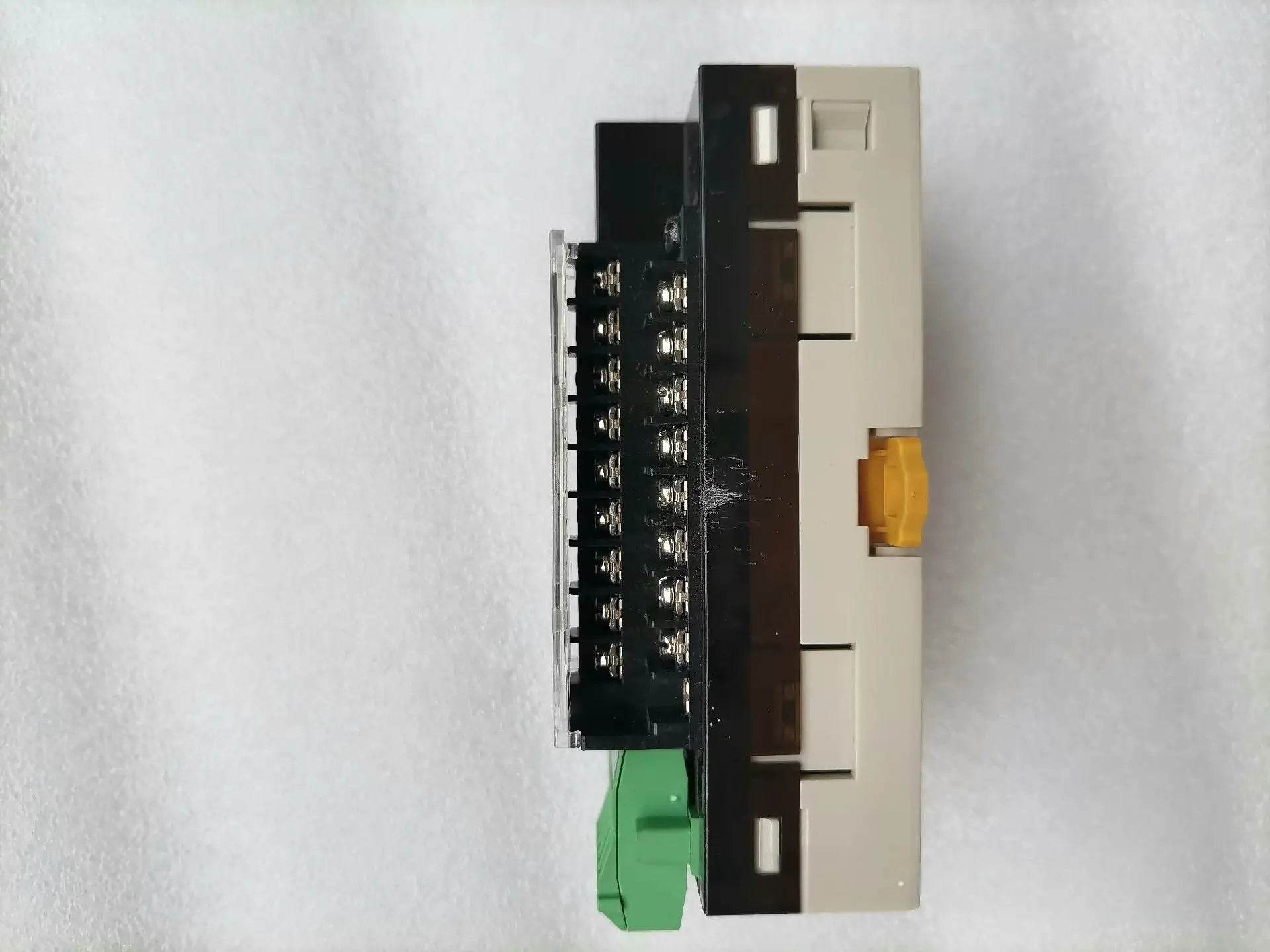

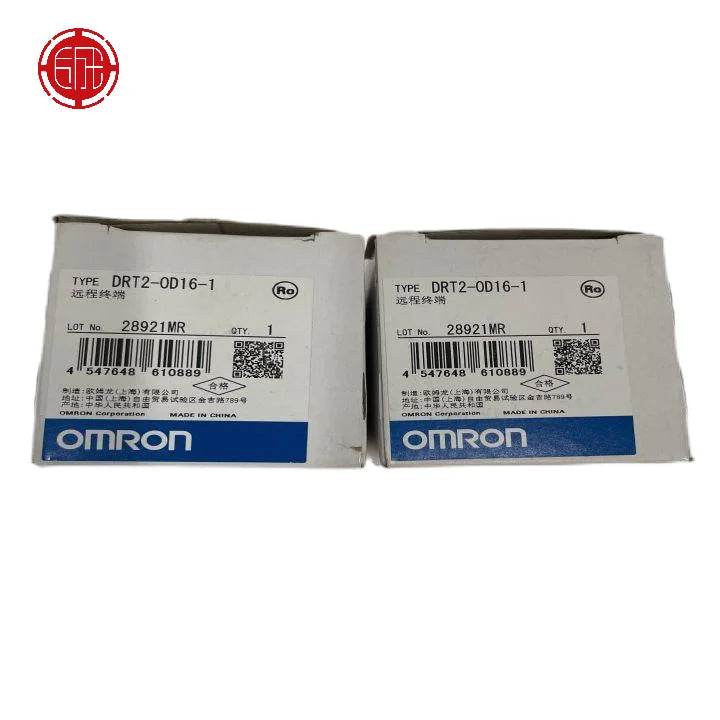

Package size: 20X11X11CMDRT2-OD16-1 Digital Output Module - Industrial Automation Solution

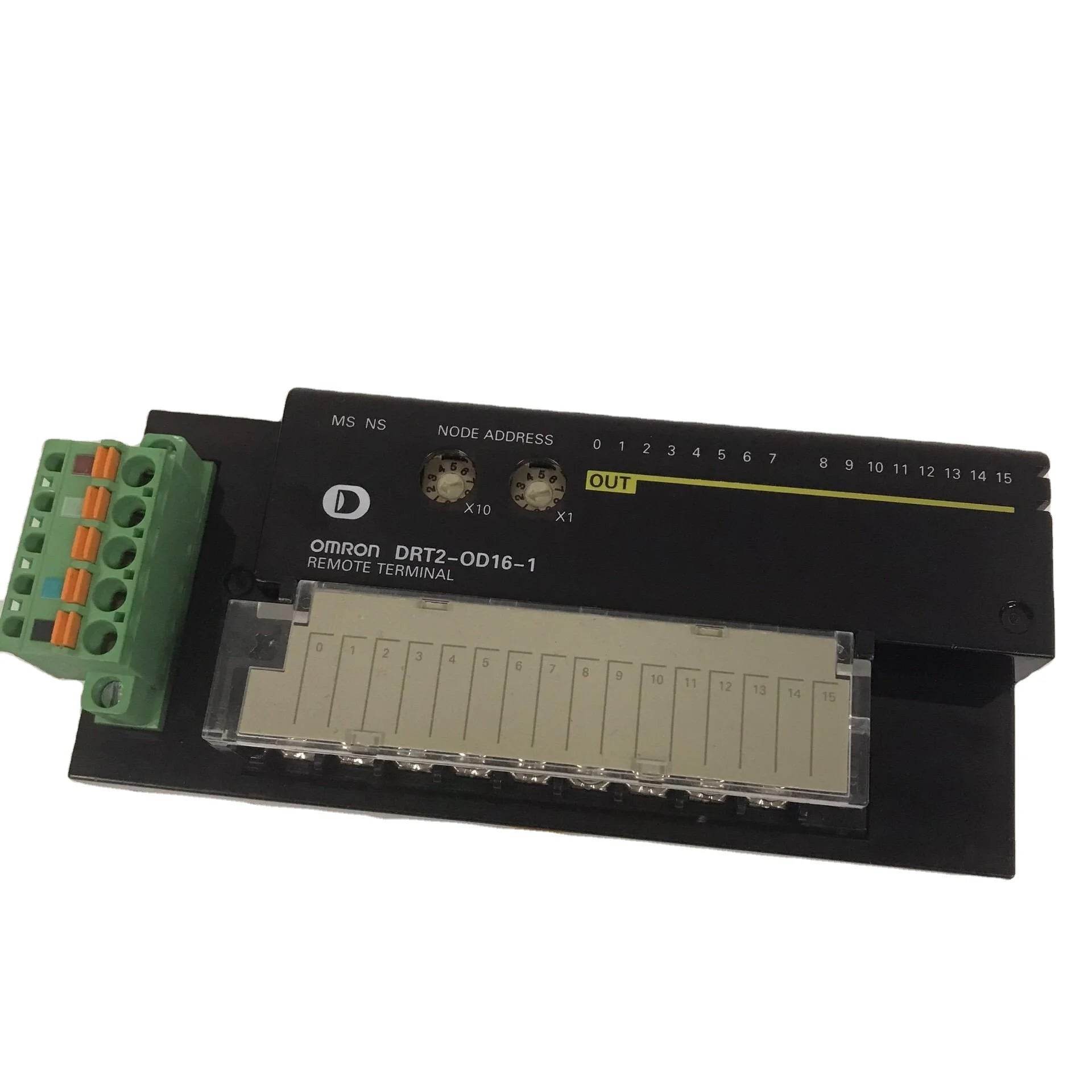

The Omron DRT2-OD16-1 represents a high-performance digital output module engineered for demanding industrial automation environments. As part of the renowned DRT2 series of remote I/O terminals, this module delivers exceptional reliability and rapid signal transmission for precision control systems. With its 16-channel output configuration, the DRT2-OD16-1 provides efficient command capabilities for a wide range of industrial devices including actuators, relays, solenoid valves, and indicator lights. Designed for seamless integration with Omron's automation ecosystem, this module offers robust performance in factory automation, process control, and machine automation applications.
Advanced Technical Features
- High-Density Output Configuration: 16 digital outputs (transistor sink type) in a compact form factor, maximizing control capabilities while minimizing panel space requirements
- Wide Voltage Compatibility: Operates with 12-24 VDC (±10%) power supply, ensuring compatibility with most industrial control voltages
- Optimized Current Handling: 0.5A maximum load current per point with 4A per common, designed for typical industrial loads
- Precision Timing: Ultra-fast 1ms or better response time (both ON to OFF and OFF to ON transitions) for time-critical applications
- Robust Isolation: Photocoupler isolation between internal and external circuits provides enhanced noise immunity and electrical protection
- Durable Construction: Compact dimensions of 31 × 98 × 65 mm (W×H×D) with only 180g weight, featuring industrial-grade components for long service life
- Energy Efficient: Low power consumption of just 3.5W during 24VDC operation, reducing overall system energy requirements
- Reliable Warranty: Backed by Omron's standard 1-year manufacturer warranty against defects in materials and workmanship
Industrial Applications
- Pneumatic System Control: Precise operation of solenoid valves in compressed air systems for manufacturing automation
- Motor Control Circuits: Reliable actuation of relays and contactors in AC/DC motor drive applications
- Material Handling Systems: Command and control of automated conveyors, sorters, and transfer mechanisms
- Production Machinery: Integration with CNC machines, assembly robots, and industrial presses
- Packaging Automation: Synchronized control of fillers, cappers, labelers, and case packers in packaging lines
- Process Control Systems: Discrete output control for batch processing, mixing, and quality inspection stations
Comprehensive Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | DRT2-OD16-1 (verified against Omron product database) |
| Output Configuration | 16 points, transistor sink type (NPN) |
| Rated Load Voltage Range | 12-24 VDC (±10% tolerance) |
| Current Specifications | 0.5 A maximum per point, 4 A maximum per common terminal |
| Electrical Characteristics | Leakage current: 0.1 mA maximum | Voltage drop: 1.5 V maximum |
| Switching Performance | Response time: 1 ms or faster (both ON and OFF transitions) |
| Isolation Method | Photocoupler isolation between internal logic and output circuits (1500VAC for 1 minute) |
| Environmental Ratings | Operating temperature: 0°C to 55°C (32°F to 131°F) | Storage temperature: -25°C to 65°C (-13°F to 149°F) |
| Humidity Tolerance | 10% to 90% relative humidity (non-condensing environment) |
| Mechanical Durability | Vibration resistance: 10-57 Hz at 0.075mm amplitude | Shock resistance: 147 m/s² (15G) in X,Y,Z directions |
| Connection System | M3 screw terminals accepting 0.3 to 1.5 mm² (AWG 22 to 16) wire sizes |
| Mounting Configuration | DIN rail mountable (35mm standard rail) with secure locking mechanism |
| Indication System | LED indicators for each output channel status (ON/OFF visualization) |
| Compliance Standards | CE marked, RoHS compliant, meets international industrial automation standards |
The Omron DRT2-OD16-1 digital output module represents an optimal balance of performance, reliability, and value for industrial control applications. Its rugged design ensures dependable operation in challenging industrial environments while maintaining precise control over connected devices. The module's compatibility with standard industrial voltages and its high-density output configuration make it particularly suitable for space-constrained control panels and distributed I/O installations.
