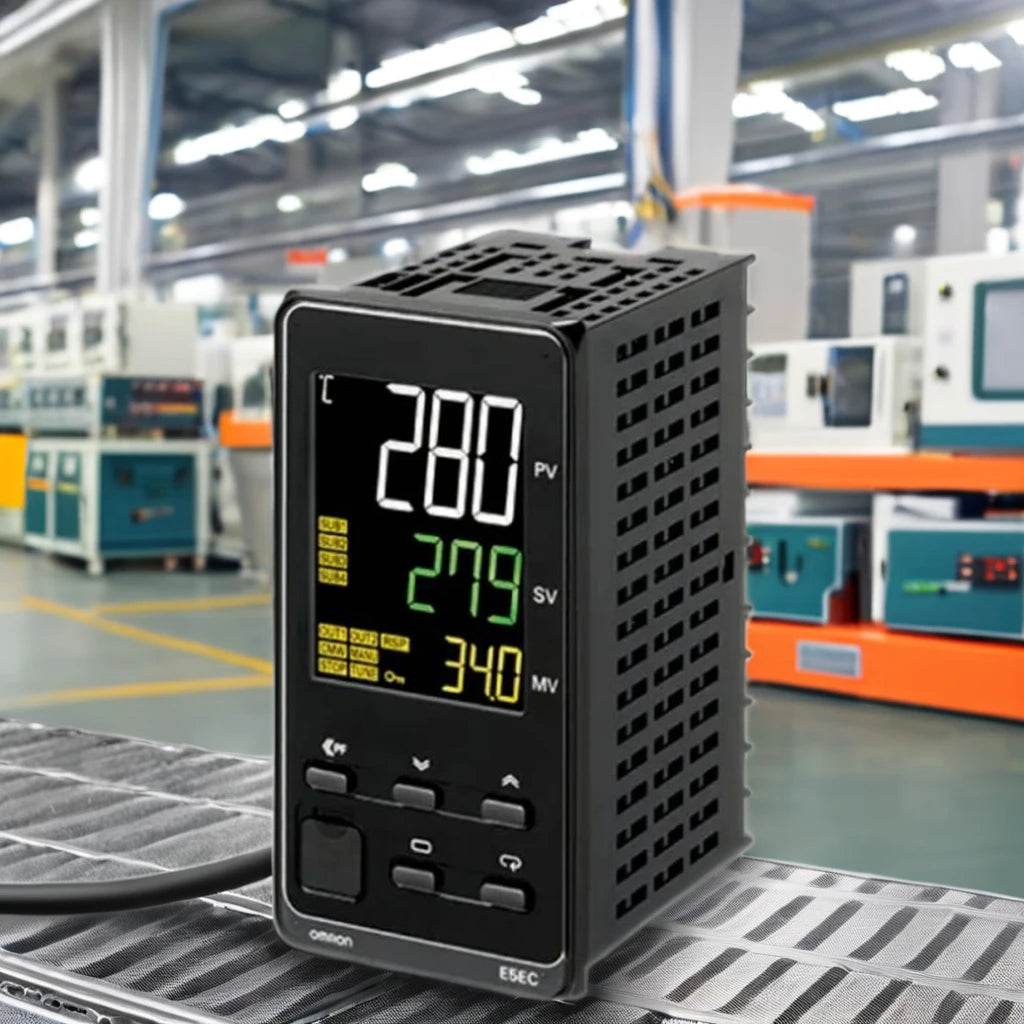

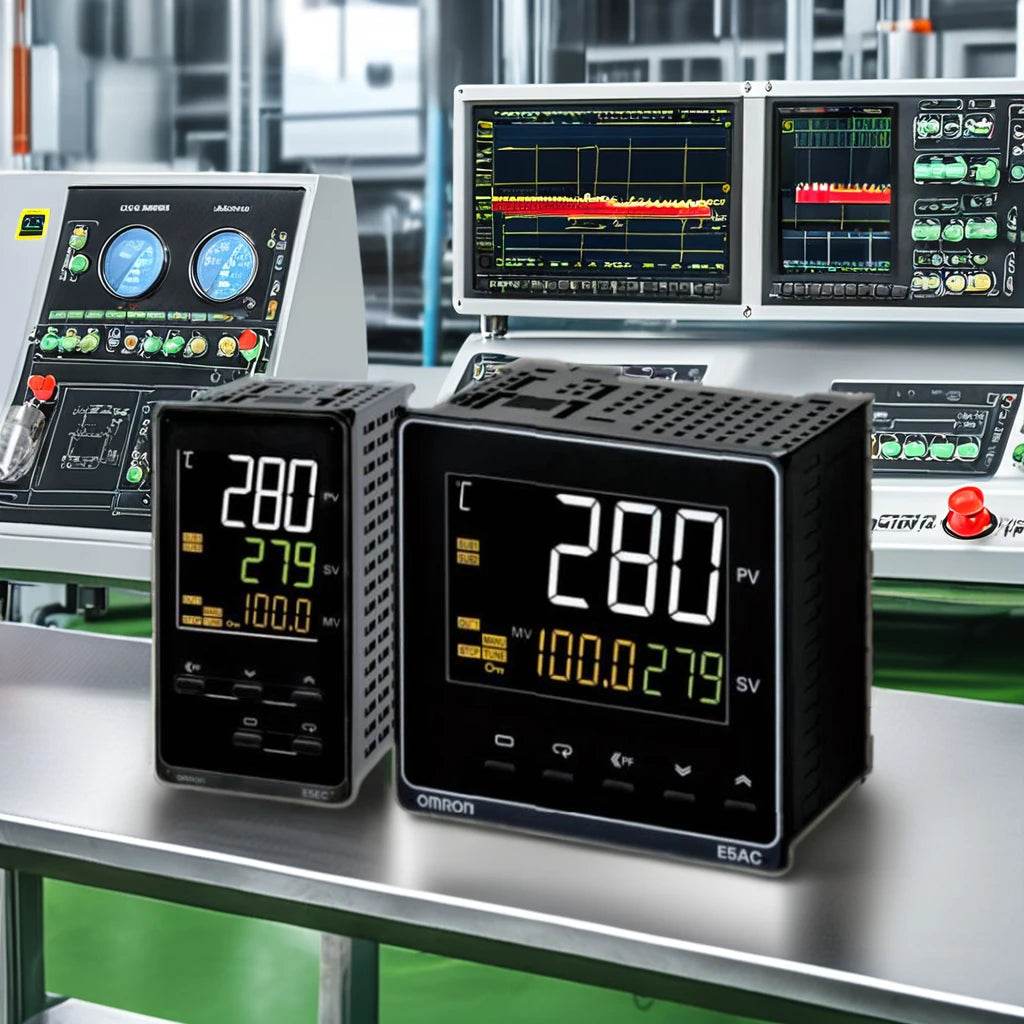

E5EC-PR2ASM-804 Digital Temperature Controller with SSR Output and 1/16 DIN Size

Product Overview

The Omron E5EC-PR2ASM-804 is a high-performance digital temperature controller engineered for industrial and commercial applications requiring precise thermal regulation. As part of the renowned E5EC series, this model delivers exceptional accuracy (±0.3% of full scale) and advanced PID control functionality. Its compact 48×48mm DIN form factor makes it ideal for panel mounting in space-constrained environments while maintaining robust operation in temperatures from 0 to 55°C.

Key Features and Benefits

• Universal Input Compatibility: Supports all major temperature sensor types including thermocouples (K, J, R, S, B, E, T, N, W), RTDs (Pt100, JPt100), and analog signals (0–10V, 0–20mA, 4–20mA) for maximum application flexibility.
• Advanced Control Algorithm: Incorporates Omron's proprietary PID control with auto-tuning capability, ensuring optimal temperature stability and reduced overshoot in dynamic thermal processes.
• Multi-Output Configuration: Features 2 relay outputs (SPST-NO 5A 250V AC), 1 voltage pulse output (12-24V DC), and 1 current output (4-20mA) for comprehensive system integration.
• High-Visibility Display: Bright red LED backlight illuminates the 4-digit, 7-segment display for clear visibility in all lighting conditions.
• Robust Construction: Industrial-grade components ensure reliable operation with a power consumption of ≤6VA and protection against electrical noise (2,000V AC for 1 minute).
• Global Power Compatibility: 100-240V AC power supply with 50/60Hz operation simplifies international deployment.
• Standard Warranty: Backed by Omron's 1-year manufacturer warranty against defects in materials and workmanship.

Industrial Applications

The E5EC-PR2ASM-804 is engineered for demanding thermal control applications across multiple industries:

• Industrial Thermal Processing: Precision temperature regulation for heat treatment furnaces, industrial ovens, and kilns
• Plastics Manufacturing: Accurate mold temperature control in injection molding and extrusion processes
• Food Processing: Thermal management in cooking, pasteurization, and packaging equipment
• Laboratory Equipment: Stable temperature control for test chambers and analytical instruments
• HVAC Systems: Building automation and climate control applications

Technical Specifications

Parameter	Specification
Model Number	E5EC-PR2ASM-804 (confirmed per Omron documentation)
Input Types	Thermocouple: K, J, R, S, B, E, T, N, W RTD: Pt100, JPt100 Analog: 0–10V DC, 0–20mA, 4–20mA
Control Outputs	Relay: 2 points (5A 250V AC) Voltage Pulse: 1 point (12-24V DC) Current: 1 point (4-20mA)
Control Method	PID control with auto-tuning and manual tuning capability
Accuracy	±0.3% of full scale ±1 digit (for thermocouple/RTD inputs)
Display Resolution	0.1°C/°F (for temperature display)
Sampling Period	200ms standard
Insulation Resistance	20MΩ min. (500V DC)
Dielectric Strength	2,000V AC for 1 minute (between power and output terminals)
Dimensions	48 × 48 × 78mm (W × H × D)
Panel Cutout	45 × 45mm ±0.5mm
Weight	200g ±5g
Compliance	CE, UL, cUL certified

Installation and Operation

The E5EC-PR2ASM-804 features a standard 48mm DIN panel cutout (45×45mm) with front-mounted operation buttons for easy parameter setting. The unit's IP66-rated front panel provides dust-tight and water-resistant protection when properly installed. For optimal performance, ensure proper wiring separation between power and signal lines, and maintain ambient operating conditions within specified ranges.
