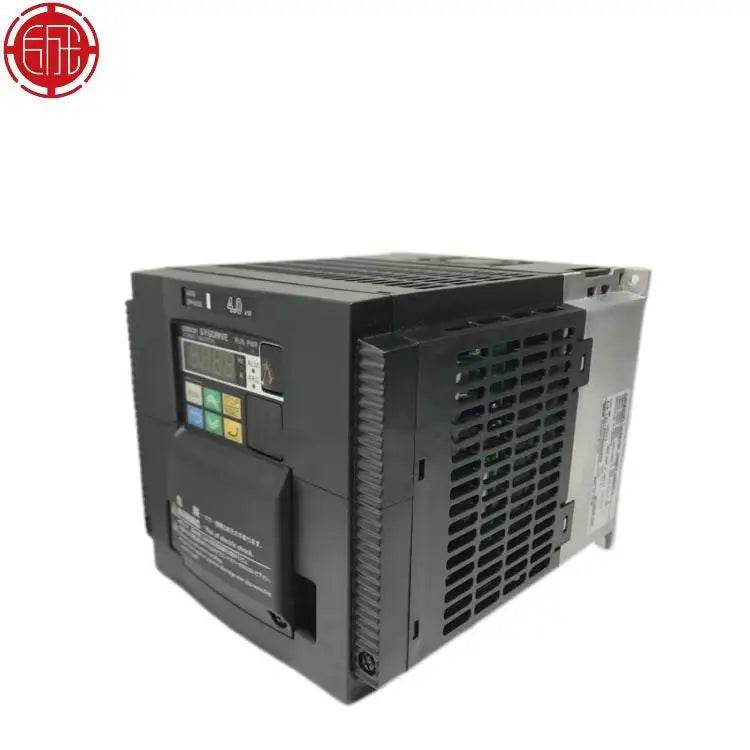

3G3MX2-AB015-V2 Variable Frequency Drive, 1.5kW, Compact Design, 200V Class

3G3MX2-AB015-V2 Variable Frequency Drive, 1.5kW, Compact Design, 200V Class

SKU:3G3MX2-AB015-V2

Package size:
Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Sold out
Exclusive pricing & tailored solutions await!

Product Overview

The Omron MX2 Series Variable Frequency Drive (VFD), model 3G3MX2-AB015-V2, is a high-performance industrial inverter designed for precise speed control of three-phase induction motors. This compact and energy-efficient drive delivers superior motor performance while optimizing energy consumption in various automation applications. Engineered with advanced sensorless vector control technology, it ensures smooth operation across a wide speed range while maintaining torque accuracy. The rugged construction and reliable design make it suitable for demanding industrial environments.

Key Features & Benefits

  • Advanced Motor Control: Features both sensorless vector control and V/f control modes for optimal performance across different motor applications, ensuring precise speed regulation and improved torque characteristics at low speeds.
  • Wide Voltage Compatibility: Supports 3-phase 200-240V AC input with 50/60Hz frequency, making it adaptable to various power supply conditions.
  • High Power Density: Compact 1.5 kW (2 HP) unit delivers 7.0A output current in a space-saving design (132 × 150 × 129.5 mm) weighing just 1.5 kg.
  • Extended Frequency Range: Operates from 0.5Hz to 400Hz, accommodating both standard and specialized motor control requirements.
  • Robust Connectivity: Built-in RS-485 interface with Modbus RTU protocol enables seamless integration into industrial networks and control systems.
  • Comprehensive I/O Configuration: Includes 3 digital inputs, 1 analog input (0-10V), 1 relay output, and 1 open-collector output for flexible system integration.
  • Energy Efficient Operation: Incorporates automatic energy optimization algorithms to reduce power consumption in variable torque applications.
  • Reliable Protection: IP20 rated enclosure provides basic protection against solid objects while the fan-cooled design ensures optimal thermal management.
  • Standard Warranty: Backed by Omron's 1-year manufacturer warranty for guaranteed quality and reliability.

Industrial Applications

The 3G3MX2-AB015-V2 variable frequency drive is engineered for diverse industrial automation applications including:

  • Material Handling Systems: Precise speed control for conveyors, elevators, and automated guided vehicles
  • HVAC Equipment: Energy-efficient control for pumps, fans, and blowers in building automation
  • Packaging Machinery: Synchronized motion control for fillers, wrappers, and labeling systems
  • Food Processing Equipment: Reliable speed regulation for mixers, extruders, and processing lines
  • Textile Manufacturing: Consistent speed maintenance for spinning, weaving, and finishing machines
  • General Industrial Automation: Versatile motor control solution for machine tools, compressors, and other industrial equipment

Detailed Technical Specifications

Parameter Specification
Manufacturer Part Number 3G3MX2-AB015-V2
Series Omron MX2 Compact Inverter Series
Input Power Characteristics 3-phase 200-240V AC ±10%, 50/60Hz ±5%
Output Power Rating 1.5 kW (2 HP) continuous duty
Output Current Capacity 7.0A RMS (110% overload for 60 seconds)
Control Methods Sensorless vector control (SVC), V/f control with multiple preset curves
Frequency Control Range 0.5Hz to 400Hz (maximum output frequency depends on motor characteristics)
Speed Control Range 1:40 (sensorless vector control), 1:10 (V/f control)
Speed Control Accuracy ±0.2% of maximum speed (sensorless vector control)
Starting Torque 150% at 1Hz (sensorless vector control)
Carrier Frequency 1kHz to 15kHz (adjustable)
Braking Torque Approximately 20% (without optional braking resistor)
Protection Features Overcurrent, overvoltage, undervoltage, overload, short circuit, ground fault, motor overload, heat sink overheat
Environmental Specifications Operating temperature: -10°C to +50°C (14°F to 122°F), Storage temperature: -20°C to +65°C (-4°F to 149°F), Humidity: 5% to 95% RH (non-condensing)
Physical Dimensions 132 mm (W) × 150 mm (H) × 129.5 mm (D)
Net Weight 1.5 kg (3.3 lbs)
Mounting Wall mounting (vertical orientation recommended)
Cooling Method Forced air cooling with built-in fan
Enclosure Rating IP20 (finger-safe protection)
Communication Interface RS-485 (2-wire) with Modbus RTU protocol
Control Terminals 3 digital inputs (sink/source selectable), 1 analog input (0-10V/0-20mA selectable), 1 relay output (250VAC 2A), 1 open-collector output (24VDC 50mA)
Display & Indicators 4-digit 7-segment LED display, RUN/STOP indicators, fault indicators
Keypad Functions Run/Stop, frequency setting, parameter adjustment, fault reset
Warranty Period 1 year from date of purchase
