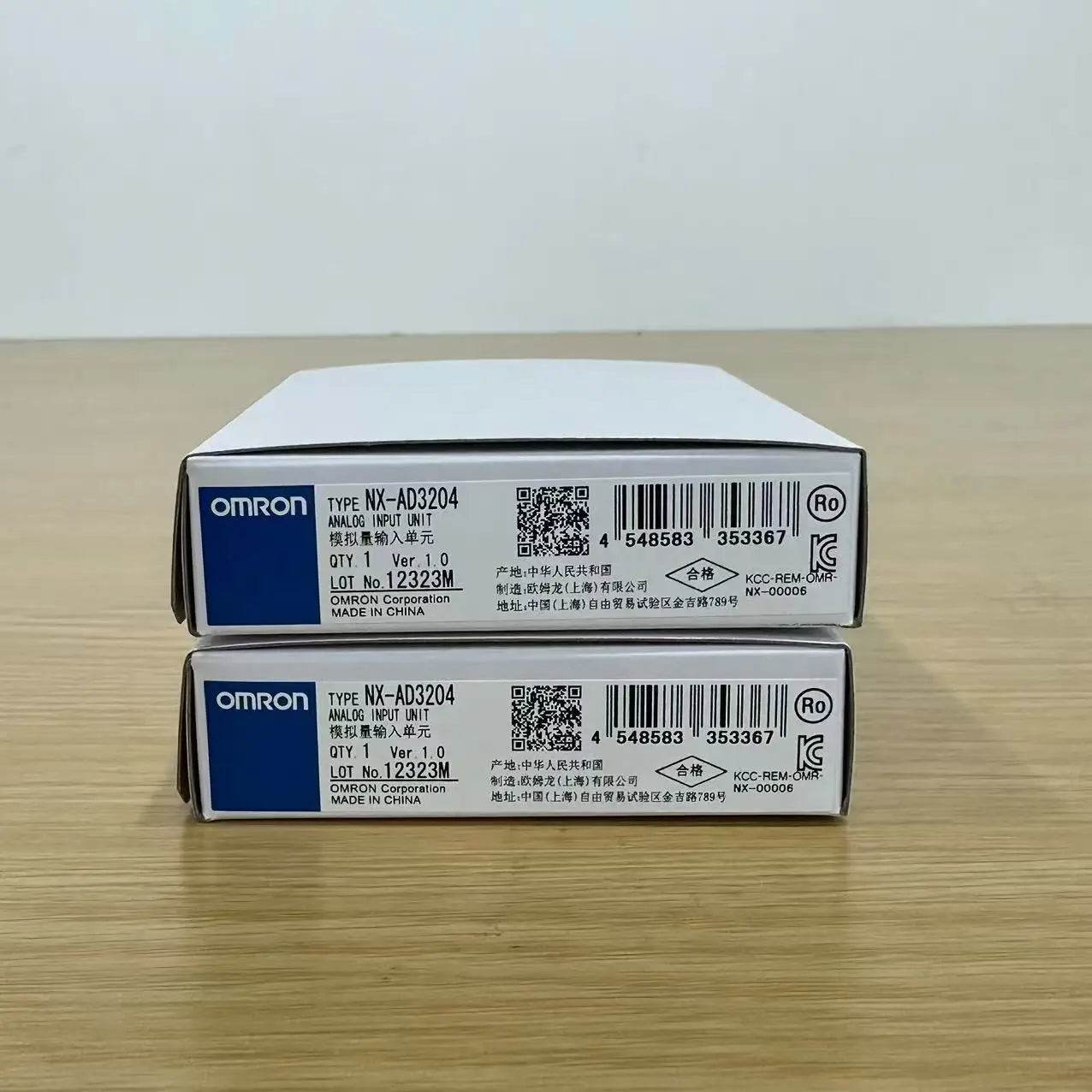

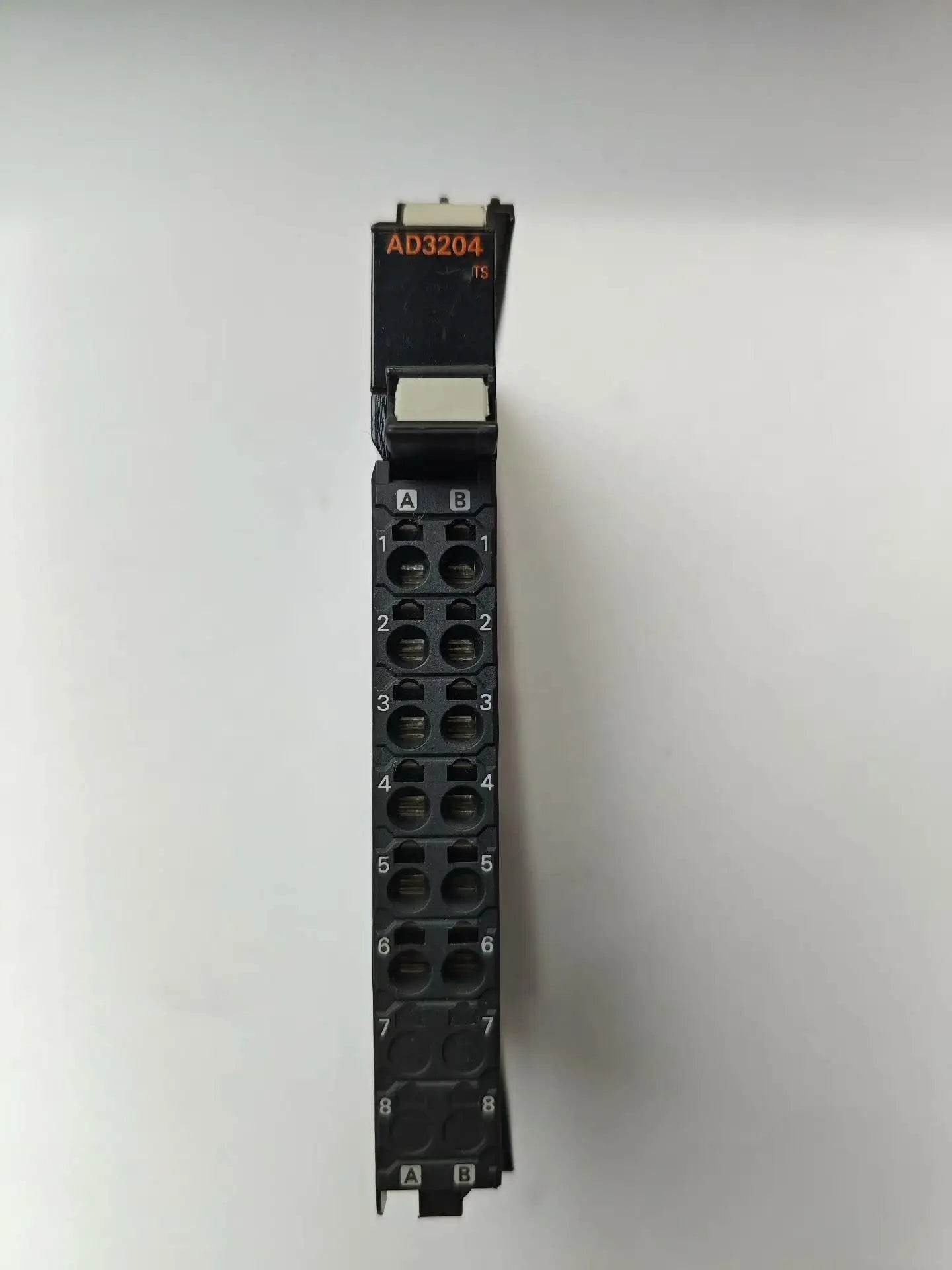

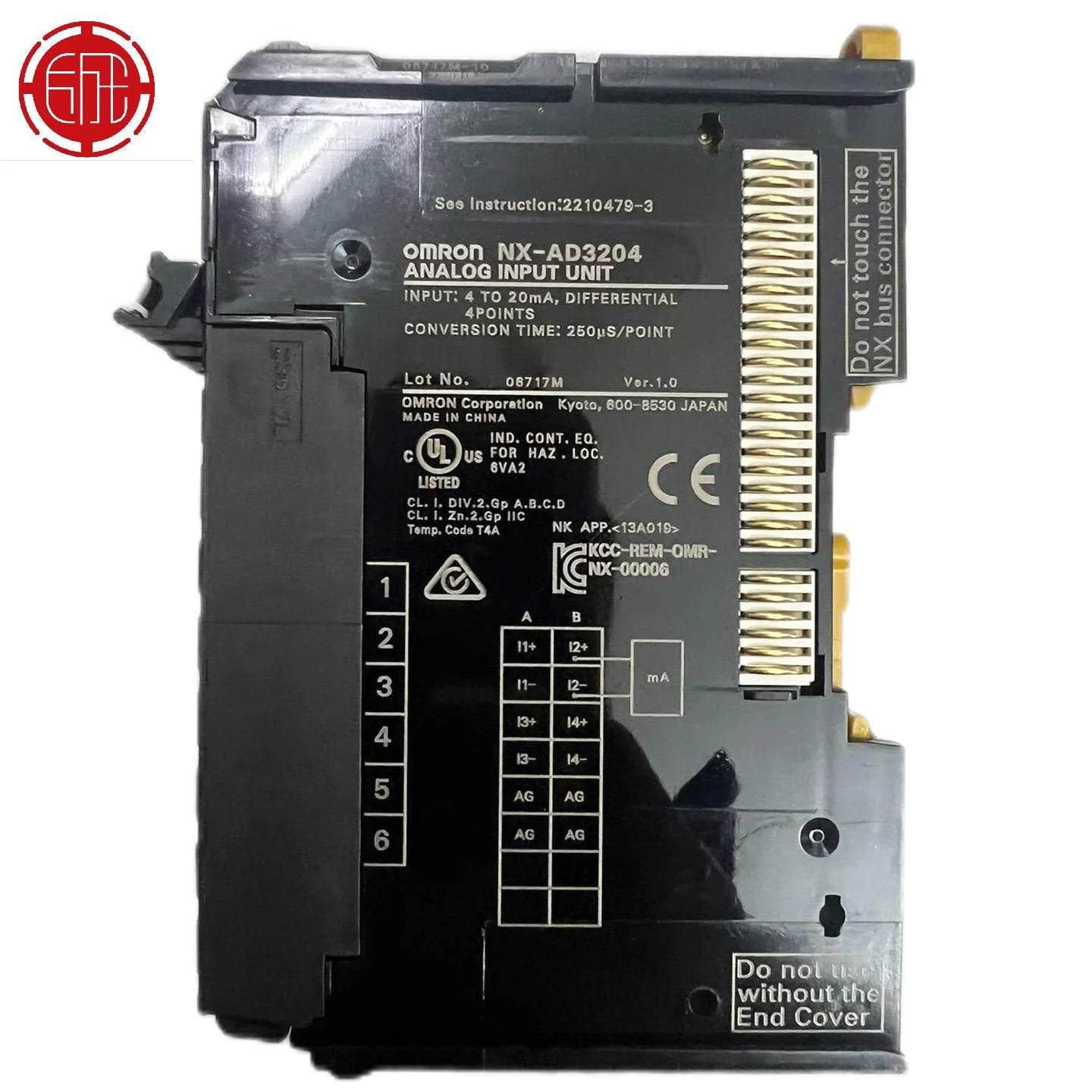

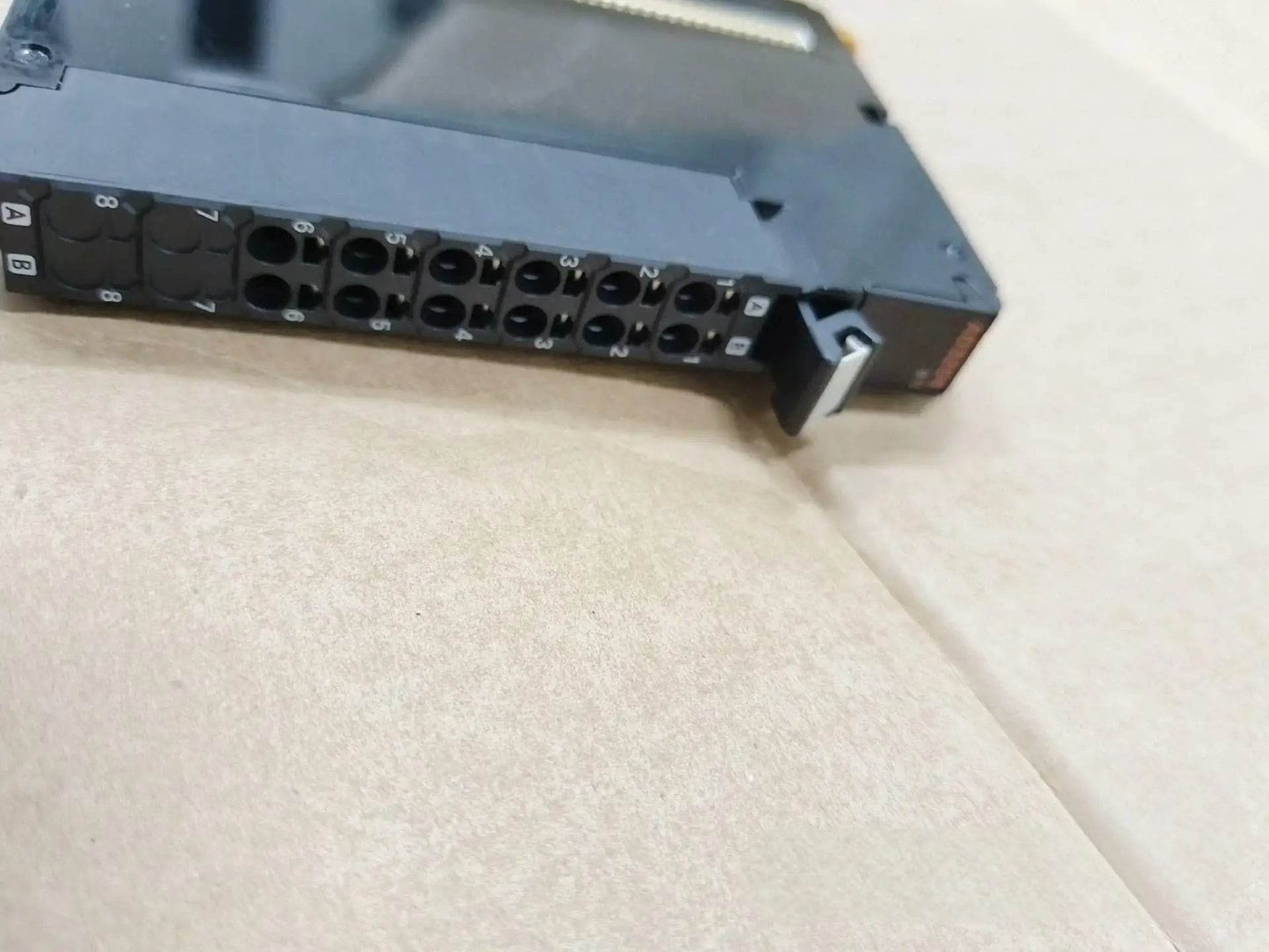

4-Channel Analog Input Module NX-AD3204 for High-Speed Precision Data Acquisition
4-Channel Analog Input Module NX-AD3204 for High-Speed Precision Data Acquisition
SKU:NX-AD3204
Package size: 15X14X6CMRegular price
$168.00 USD
Regular price
Sale price
$168.00 USD
Unit price
/
per
Exclusive pricing & tailored solutions await!
NX-AD3204 Product Description
Product Overview
The NX-AD3204 is a high-performance analog input module designed for industrial automation systems. It belongs to the NX series, which is known for precision and reliability in signal processing. This module converts analog signals into digital data for use in control and monitoring applications.
Key Features
- Input Channels: 4 channels
- Input Type: Voltage or current (selectable per channel)
- Voltage Range: -10 to +10 V DC
- Current Range: 0 to 20 mA DC, 4 to 20 mA DC
- Resolution: 16-bit
- Conversion Speed: 250 μs per channel
- Accuracy: ±0.1% of full scale
- Isolation: Channel-to-channel and channel-to-system isolation
- Dimensions: 32 mm (W) x 98 mm (H) x 87 mm (D)
- Weight: 200 g
- Power Consumption: 2.5 W (max)
- Operating Temperature: 0 to 55°C
- Storage Temperature: -25 to 75°C
- Humidity Range: 10 to 95% (non-condensing)
Applications
The NX-AD3204 is suitable for a variety of industrial applications, including:
- Process control systems
- Factory automation
- Environmental monitoring
- Energy management systems
- Test and measurement equipment
Technical Parameters
| Parameter | Value |
|---|---|
| Input Channels | 4 |
| Input Type | Voltage or current (selectable) |
| Voltage Range | -10 to +10 V DC |
| Current Range | 0 to 20 mA DC, 4 to 20 mA DC |
| Resolution | 16-bit |
| Conversion Speed | 250 μs per channel |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-system |
| Dimensions (W x H x D) | 32 mm x 98 mm x 87 mm |
| Weight | 200 g |
| Power Consumption | 2.5 W (max) |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -25 to 75°C |
| Humidity Range | 10 to 95% (non-condensing) |
