4-Channel Analog Input Module NX-AD4204 for High-Speed Precision Measurement
4-Channel Analog Input Module NX-AD4204 for High-Speed Precision Measurement
SKU:NX-AD4204
Package size: 15X15X10CMRegular price
$195.00 USD
Regular price
Sale price
$195.00 USD
Unit price
/
per
Exclusive pricing & tailored solutions await!
Product Overview

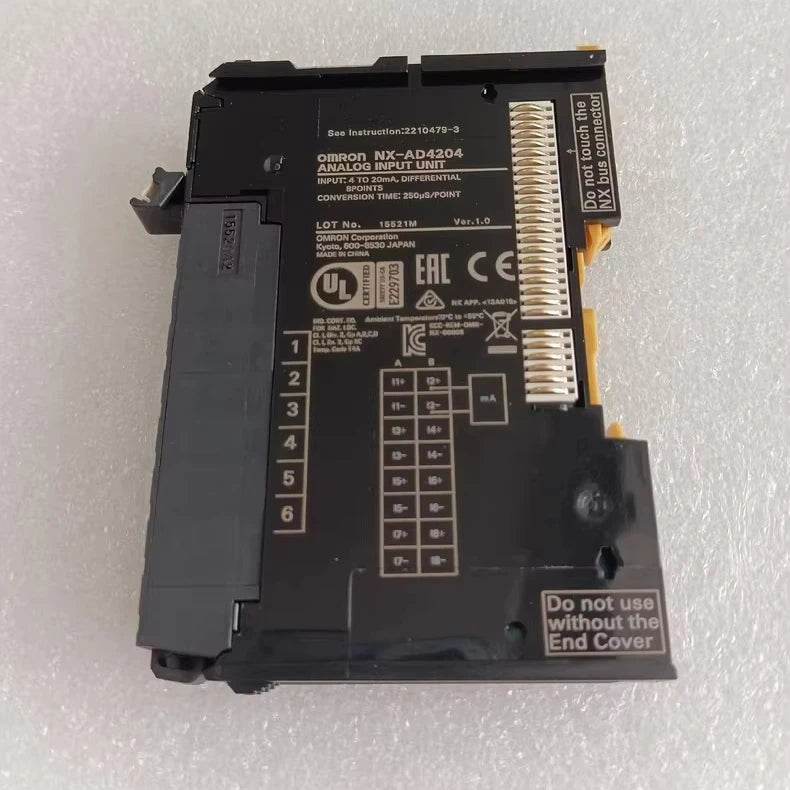

The NX-AD4204 is a high-performance analog input module designed for industrial automation systems. It belongs to the NX series, which is known for precision and reliability in signal processing. This module converts analog signals from sensors or other devices into digital values for use in control systems.
Key Features
- Supported I/O: 4-channel analog input (voltage or current).
- Input Ranges: Voltage: ±10 V, 0–10 V, 1–5 V; Current: 0–20 mA, 4–20 mA.
- Resolution: 16-bit.
- Conversion Speed: 250 µs per channel.
- Dimensions: 35 mm (W) × 90 mm (H) × 65 mm (D).
- Weight: 150 g.
- Power Consumption: 1.8 W (typical).
- Operating Temperature: 0°C to 55°C.
- Isolation: Channel-to-channel and channel-to-system isolation.
Applications
- Process control systems for monitoring pressure, temperature, or flow.
- Industrial automation for precise measurement and control of analog signals.
- Energy management systems for data acquisition and analysis.
- Test and measurement setups requiring high-resolution analog inputs.
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 4 |
| Input Type | Voltage/Current |
| Voltage Range | ±10 V, 0–10 V, 1–5 V |
| Current Range | 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Conversion Speed | 250 µs per channel |
| Isolation | Channel-to-channel, channel-to-system |
| Dimensions (W × H × D) | 35 mm × 90 mm × 65 mm |
| Weight | 150 g |
| Power Consumption | 1.8 W (typical) |
| Operating Temperature | 0°C to 55°C |
